Defining Classic Spanning Tree

The STP Properties Page contains parameters for enabling STP on the device. To enable STP on the device:
1. Click Advanced Setup > Spanning Tree > STP > Properties. The STP Properties Page opens:

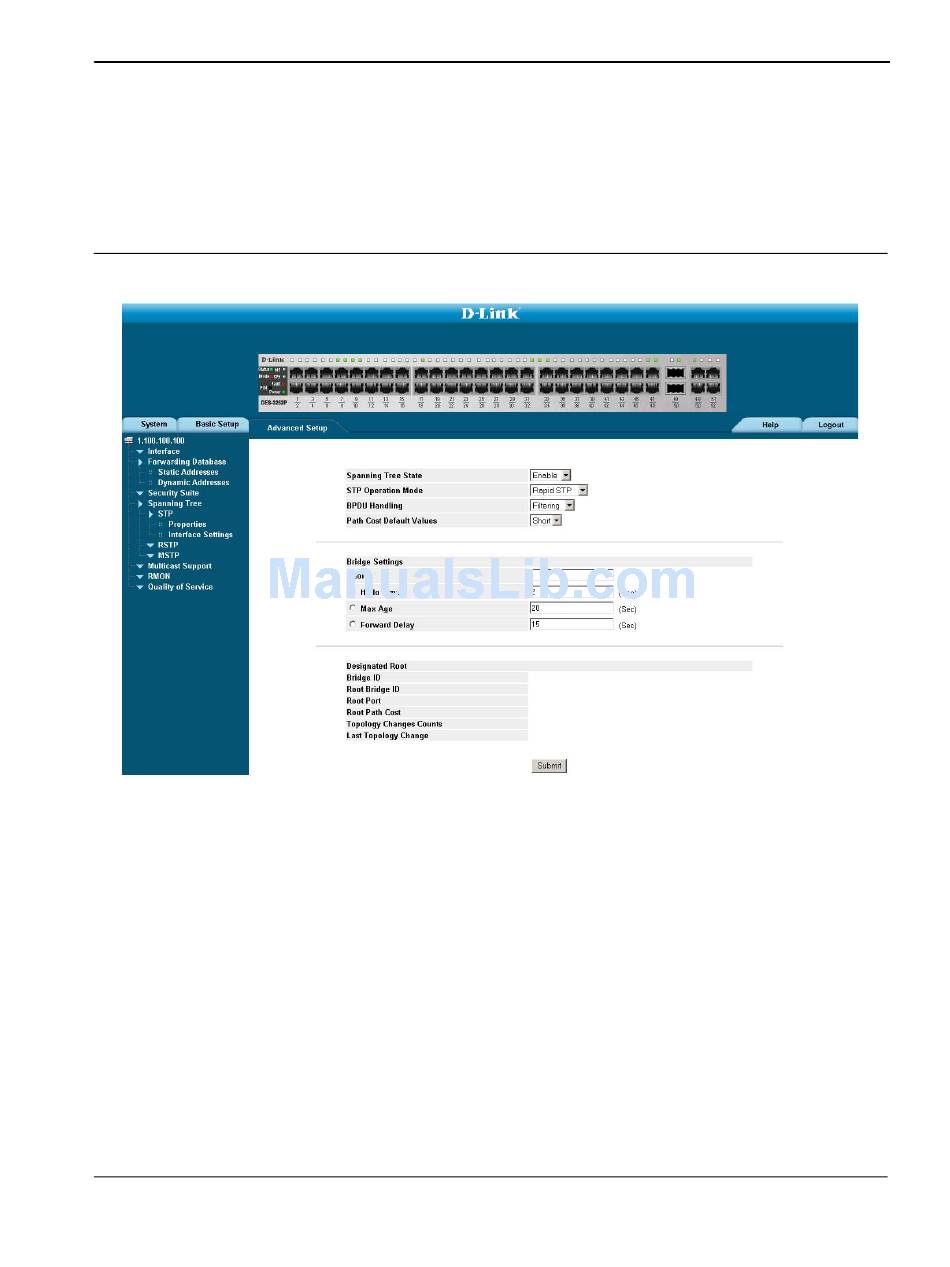

Figure 50: STP Properties Page
The STP Properties Page contains the following fields:
•
Spanning Tree State — Indicates whether STP is enabled on the device. The possible field values are:
–
Enable — Enables STP on the device.
–
Disable — Disables STP on the device.
•
STP Operation Mode — Specifies the STP mode that is enabled on the device. The possible field values
are:
–
Classic STP — Enables Classic STP on the device. This is the default value.
–
Rapid STP — Enables Rapid STP on the device.
–
Multiple STP — Enables Multiple STP on the device.
•
BPDU Handling — Determines how BPDU packets are managed when STP is disabled on the port or
device. BPDUs are used to transmit spanning tree information. The possible field values are:
–
Filtering — Filters BPDU packets when spanning tree is disabled on an interface. This is the default
value.
–
Flooding — Floods BPDU packets when spanning tree is disabled on an interface.
