Viewing Device Interface Statistics

The Interface Statistics Page contains statistics for both received and transmitted packets. To view interface statis-
tics:
1. Click Basic Setup > Interface Statistics > Interface. The Interface Statistics Page opens.

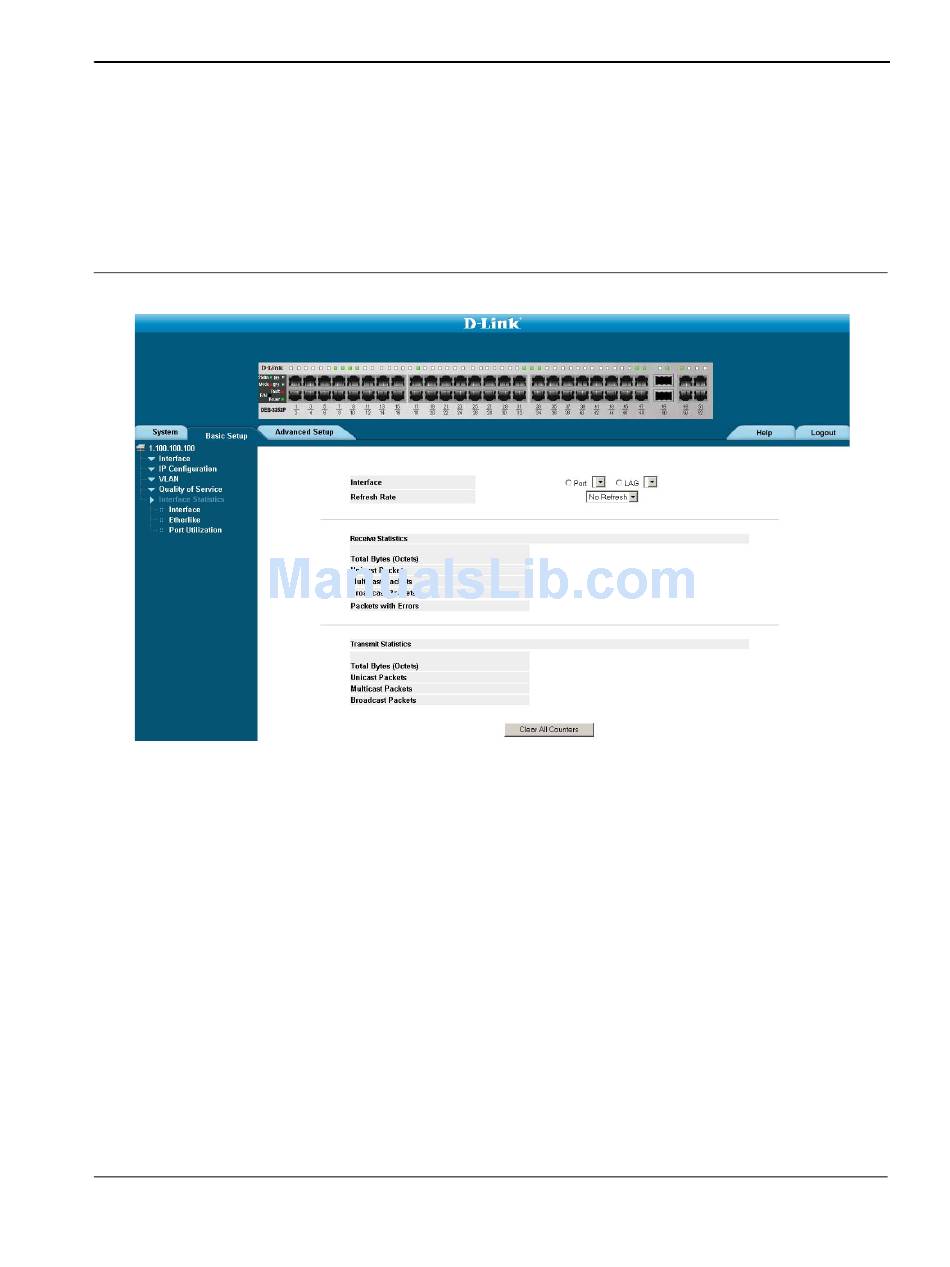

Figure 170:Interface Statistics Page
The Interface Statistics Page contains the following fields:
•
Interface — Indicates the device for which statistics are displayed. The possible field values are:
–
Port — Defines the specific port for which interface statistics are displayed.
–
LAG — Defines the specific LAG for which interface statistics are displayed.
•
Refresh Rate — Defines the amount of time that passes before the interface statistics are refreshed. The
possible field values are:
–
15 Sec—Indicates that the Interface statistics are refreshed every 15 seconds.
–
30 Sec—Indicates that the Interface statistics are refreshed every 30 seconds.
–
60 Sec—Indicates that the Interface statistics are refreshed every 60 seconds.
–
No Refresh—Indicates that the Interface statistics are not refreshed.
Receive Statistics
•
Total Bytes (Octets) — Displays the number of octets received on the selected interface.
•
Unicast Packets — Displays the number of Unicast packets received on the selected interface.
•
Multicast Packets — Displays the number of Multicast packets received on the selected interface.
•
Broadcast Packets — Displays the number of Broadcast packets received on the selected interface.
Page 245
Viewing Statistics
Viewing Interface Statistics
