Mapping DSCP Values to Queues

The DSCP to Queue Page contains fields for mapping DSCP settings to traffic queues. For example, a packet
with a DSCP tag value of 3 can be assigned to queue 2. To map CoS values to queues:
1. Click Basic Setup > Quality of Service > Queue Mapping > DSCP to Queue. The DSCP to Queue Page
opens.

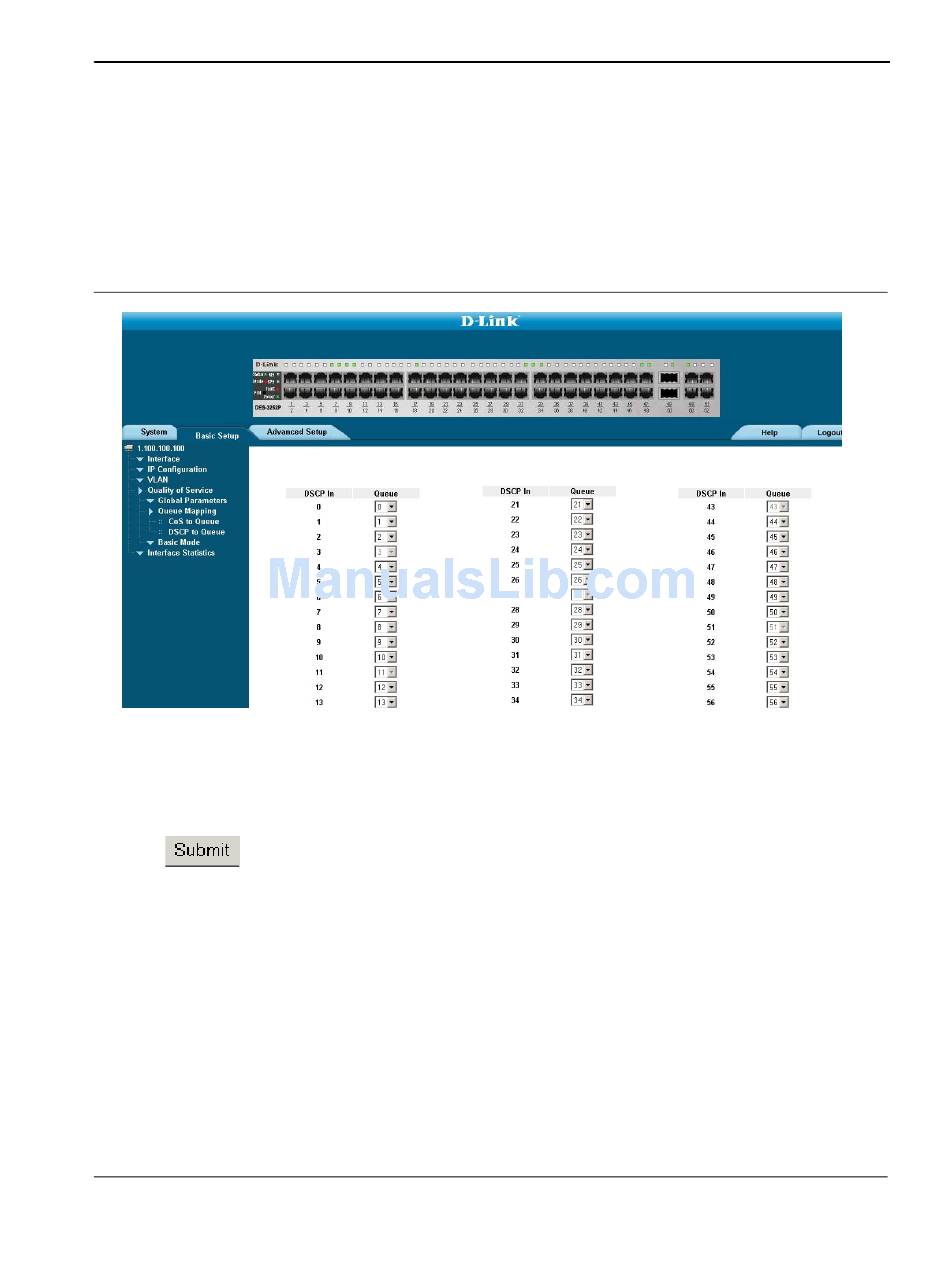

Figure 128:DSCP to Queue Page
The DSCP to Queue Page contains the following fields:
•
DSCP In — Displays the incoming packet's DSCP value.
•
Queue — Specifies the traffic forwarding queue to which the DSCP priority is mapped. Four traffic priority
queues are supported.
2. Define the queue number in the Queue field next to the required DSCP value.
3. Click . The DSCP value is mapped to a queue, and the device is updated.
Page 195
