Viewing Etherlike Statistics

The Etherlike Statistics Page contains interface statistics. To view Etherlike Statistics:
1. Click Basic Setup > Interfaces Statistics > Etherlike. The Etherlike Statistics Page opens

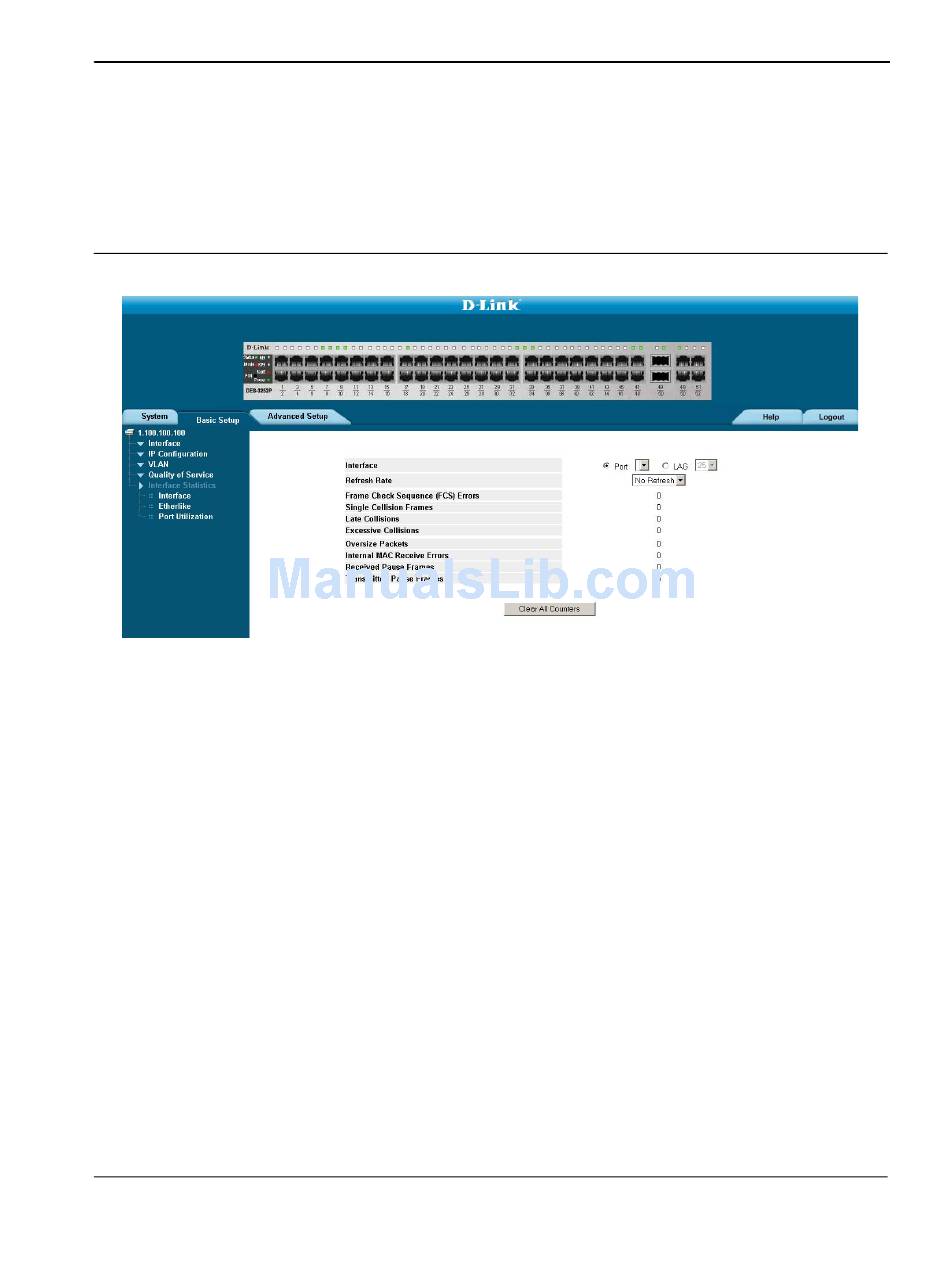

Figure 179:Etherlike Statistics Page
The Etherlike Statistics Page contains the following fields:
•
Interface — Indicates the interface for which statistics are displayed. The possible field values are:
–
Port — Defines the specific port for which Etherlike statistics are displayed.
–
LAG — Defines the specific LAG for which Etherlike statistics are displayed.
•
Refresh Rate — Defines the amount of time that passes before the interface statistics are refreshed. The
possible field values are:
–
No Refresh—Indicates that the Etherlike statistics are not refreshed.
–
15 Sec—Indicates that the Etherlike statistics are refreshed every 15 seconds.
–
30 Sec—Indicates that the Etherlike statistics are refreshed every 30 seconds.
–
60 Sec—Indicates that the Etherlike statistics are refreshed every 60 seconds.
•
Frame Check Sequence (FCS) Errors — Displays the number of FCS errors on the selected interface.
•
Single Collision Frames — Displays the number of single collision frames on the selected interface.
•
Late Collisions — Displays the number of late collision frames on the selected interface.
•
Excessive Collisions — Displays the number of excessive collisions on the selected interface.
•
Oversize Packets — Displays the number of oversized packet errors on the selected interface.
•
Internal MAC Receive Errors — Number of internal MAC receive errors on the selected interface.
•
Received Pause Frames — Displays the number of received paused frames on the selected interface.
•
Transmitted Paused Frames — Displays the number of paused frames transmitted from the selected
interface.
2. Select an interface in the Interface field. The Etherlike statistics are displayed.
Page 257
