Configuring QoS Mapping

This section contains information for mapping CoS and DSCP values to queues, and includes the following
sections:
•
Mapping CoS Values to Queues
•
Mapping DSCP Values to Queues
Mapping CoS Values to Queues
The CoS to Queue Page contains fields for mapping CoS values to traffic queues. To map CoS values to queues:
1. Click Basic Setup > Quality of Service > Queue Mapping > CoS to Queue. The CoS to Queue Page
opens.

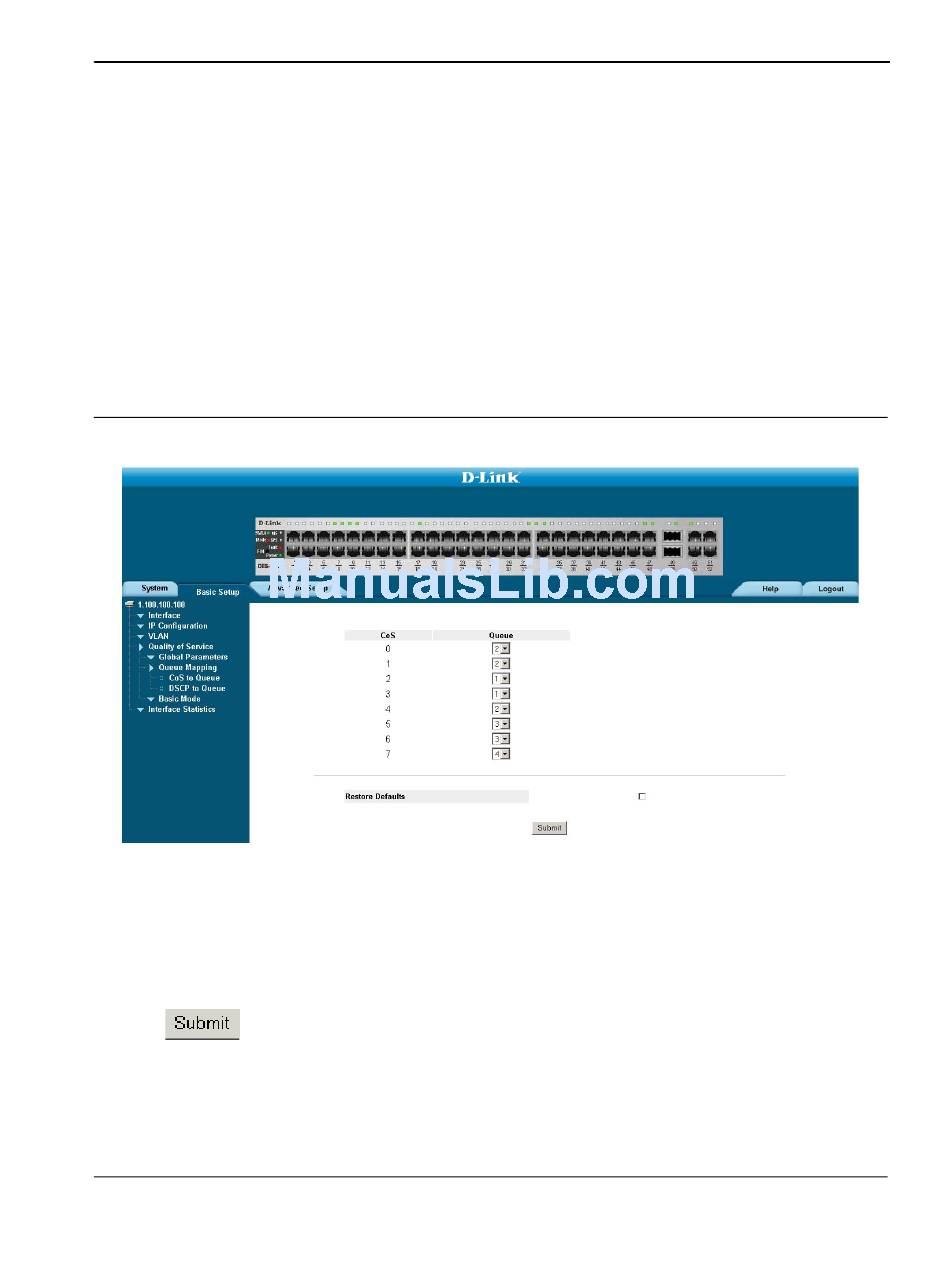

Figure 127:CoS to Queue Page
The CoS to Queue Page contains the following fields:
•
Class of Service — Specifies the CoS values, where zero is the lowest and 7 is the highest.
•
Queue — Defines the traffic forwarding queue to which the CoS priority is mapped. Four traffic priority
queues are supported.
•
Restore Defaults — Restores the device factory defaults for mapping CoS values to a forwarding queue.
2. Define the queue number in the Queue field next to the required CoS value.
3. Click . The CoS value is mapped to a queue, and the device is updated.
