Defining MSTP Interface Settings

Network Administrators can assign MSTP Interface settings in the MSTP Instance Settings Page
interface settings:
1.
Click Advanced Setup > Spanning Tree > MSTP > Interface Settings. The MSTP Interface Settings Page
opens:

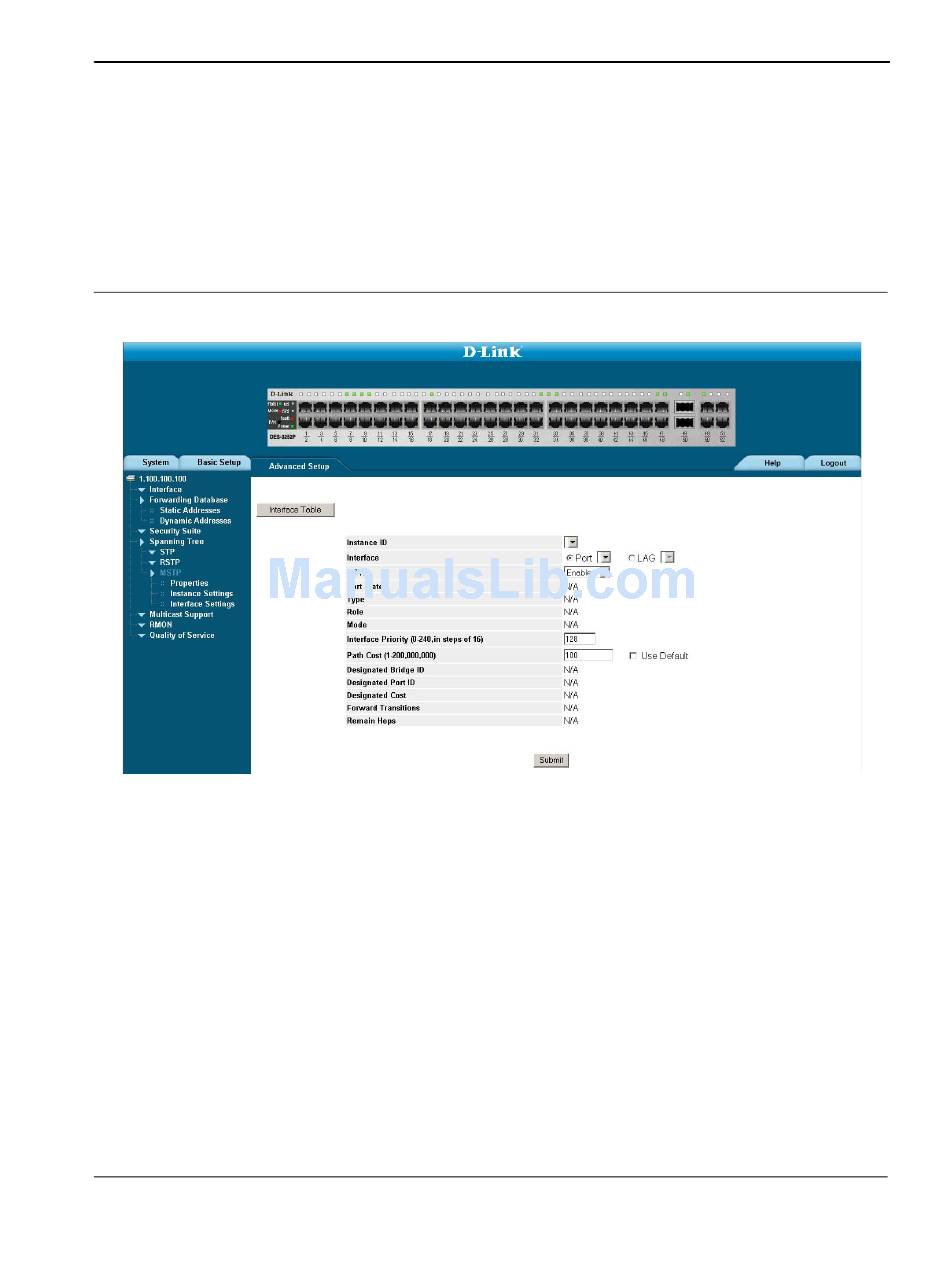

Figure 58: MSTP Interface Settings Page
MSTP Instance Settings Page contains the following fields:
The
Instance ID — Lists the MSTP instances configured on the device. Possible field range is 0-15.
Interface — Displays the interface for which the MSTP settings are displayed. The possible field values are:
Port — Specifies the port for which the MSTP settings are displayed.
LAG — Specifies the LAG for which the MSTP settings are displayed.
Port State— Indicates whether the port is enabled for the specific instance. The possible field values are:
Enabled — Enables the port for the specific instance.
Disabled — Disables the port for the specific instance.
Type — Indicates whether the port is a Boundary or Master port. The possible field values are:
Boundary Port — Indicates that the port is a Boundary port. A Boundary port attaches MST bridges to
LANs in an outlying region. If the port is a Boundary port, this field also indicates whether the device on
the other side of the link is working in RSTP or STP mode
Master Port — Indicates the port is a master port. A Master port provides connectivity from a MSTP
region to the outlying CIST root.
Page 103
Configuring Spanning Tree
Defining Multiple Spanning Tree
.
To define MSTP
