Configuring Port Mirroring

Port mirroring monitors and mirrors network traffic by forwarding copies of incoming and outgoing packets from
one port to a monitoring port. Port mirroring can be used as a diagnostic tool as well as a debugging feature. Port
mirroring also enables switch performance monitoring.
Network administrators can configure port mirroring by selecting a specific port from which to copy all packets,
and other ports to which the packets copied.
To enable port mirroring:
1. Click System > Diagnostics > Port Mirroring. The Port Mirroring Page opens:

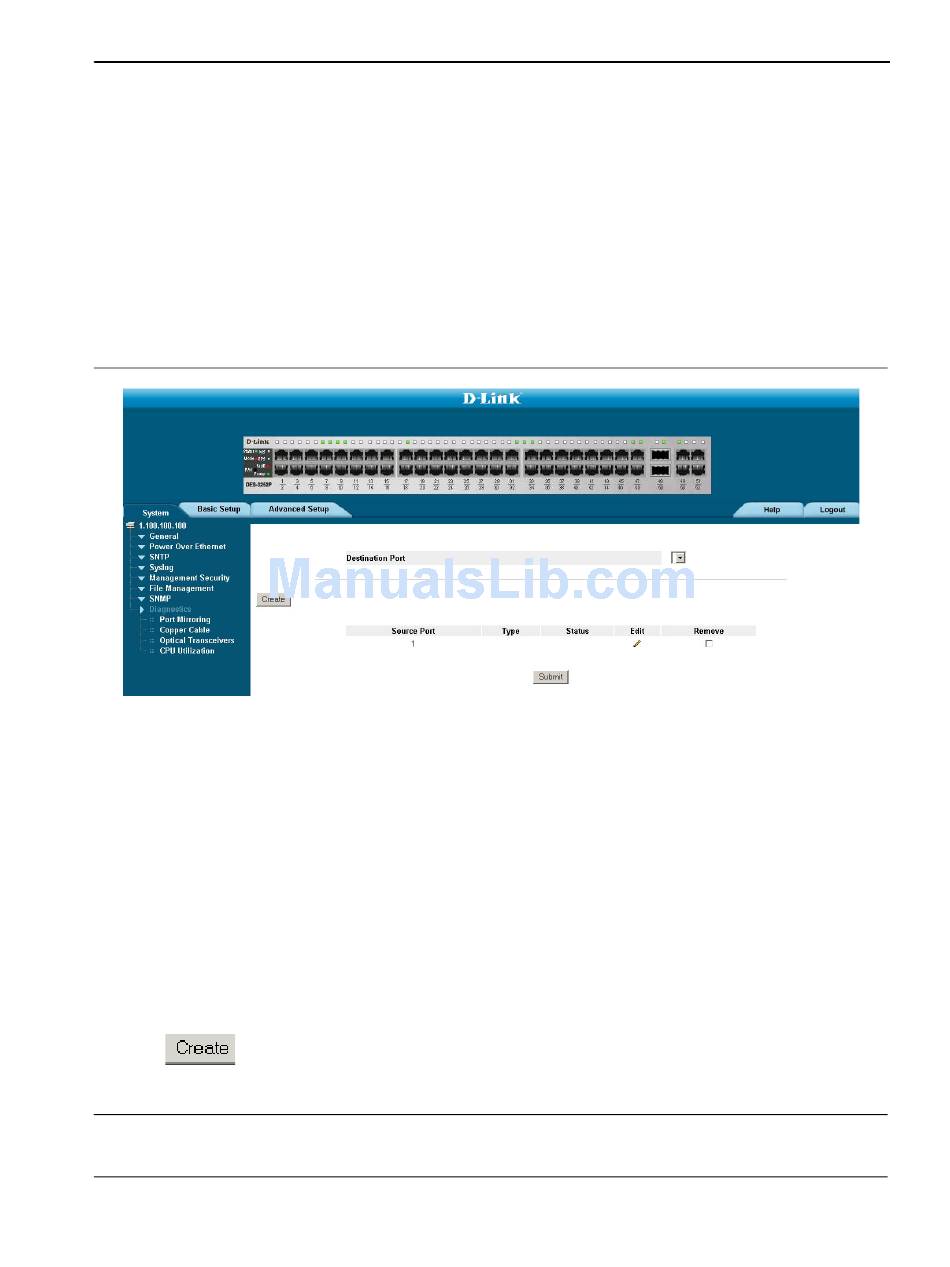

Figure 164:Port Mirroring Page
The Port Mirroring Page contains the following fields:
•
Destination Port — Defines the port number to which port traffic is copied.
•
Source Port — Indicates the port from which the packets are mirrored.
•
Type — Indicates the port mode configuration for port mirroring. The possible field values are:
–
RX — Monitoring is performed for received packets only.
–
TX — Monitoring is performed for transmitted packets only.
–
Both — Monitoring is performed for both TX and RX packets. This is the default value.
•
Status — Indicates if the port is currently monitored. The possible field values are:
–
Active — Indicates the port is currently monitored.
–
notReady — Indicates the port is not currently monitored.
•
Remove — Removes the port mirroring session. The possible field values are:
–
Checked — Removes the selected port mirroring sessions.
–
Unchecked — Maintains the port mirroring session.
2. Click . The Add Port Mirroring Page opens:
Figure 165:Add Port Mirroring Page
