Pin Connections for the Console Port
The RS-232 port is an asynchronous serial console port supporting the RS-232 electrical specification. The port is
used to connect the device to a console managing the device. The following figure illustrates the pin allocation.

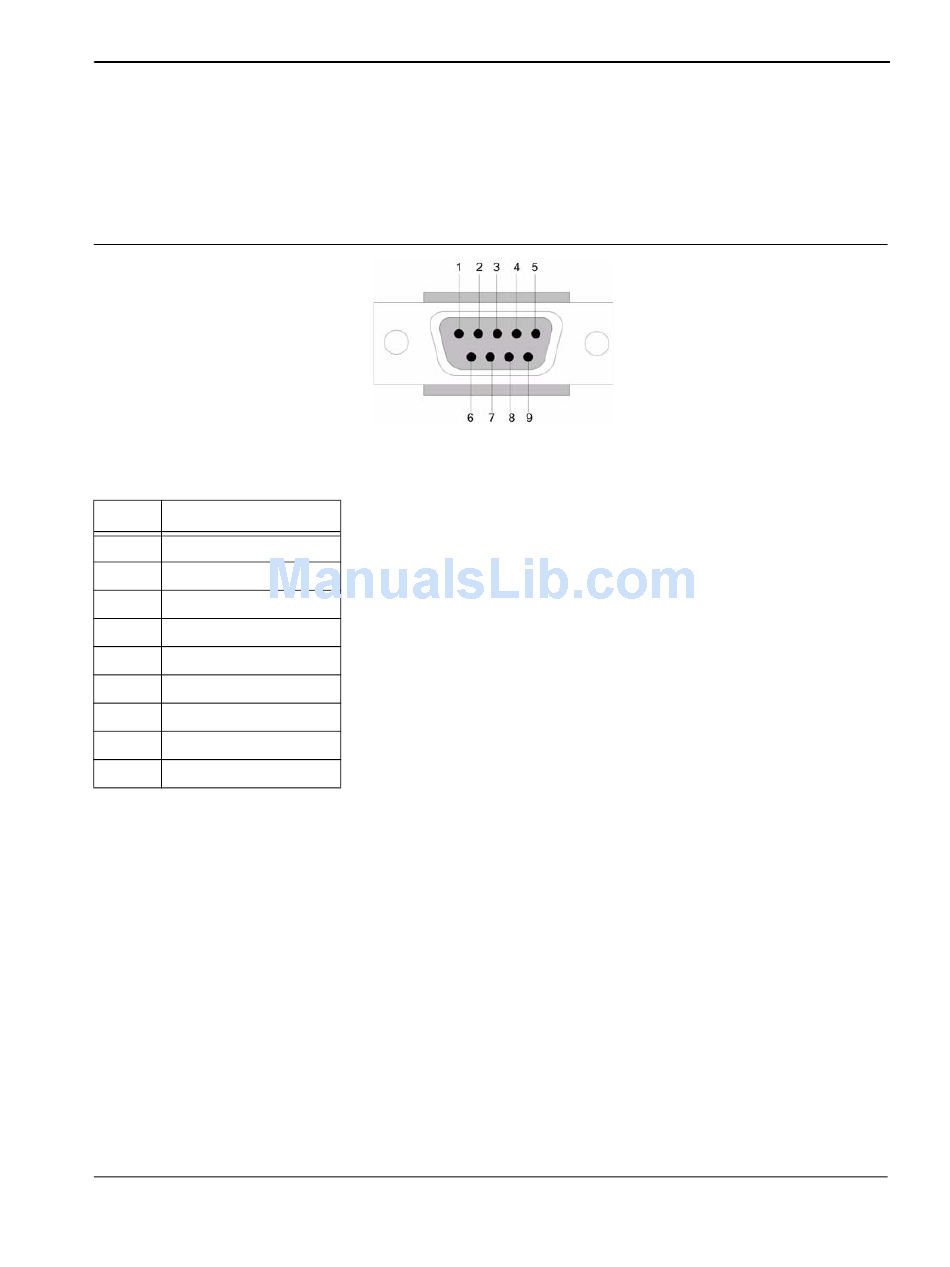

Figure 7:
Console Port Pin Allocation
The following table describes the pin allocation
Table 7:
Pin Allocation for the Console Port
Pin
Signal
1
Data Carrier Detect
2
Received Data
3
Transmitted Data
4
Data Terminal Ready
5
Signal Ground
6
Data Set Ready
7
Request to Send
8
Clear to Send
9
Ring Indicator

Physical Dimensions

The device has the following physical dimensions:
Width: 440 mm (17.32 inch)
Depth: 310mm (12.20 inch)
Height: 44 mm (1.732 inch)
Page 15
Device Description
Physical Dimensions
