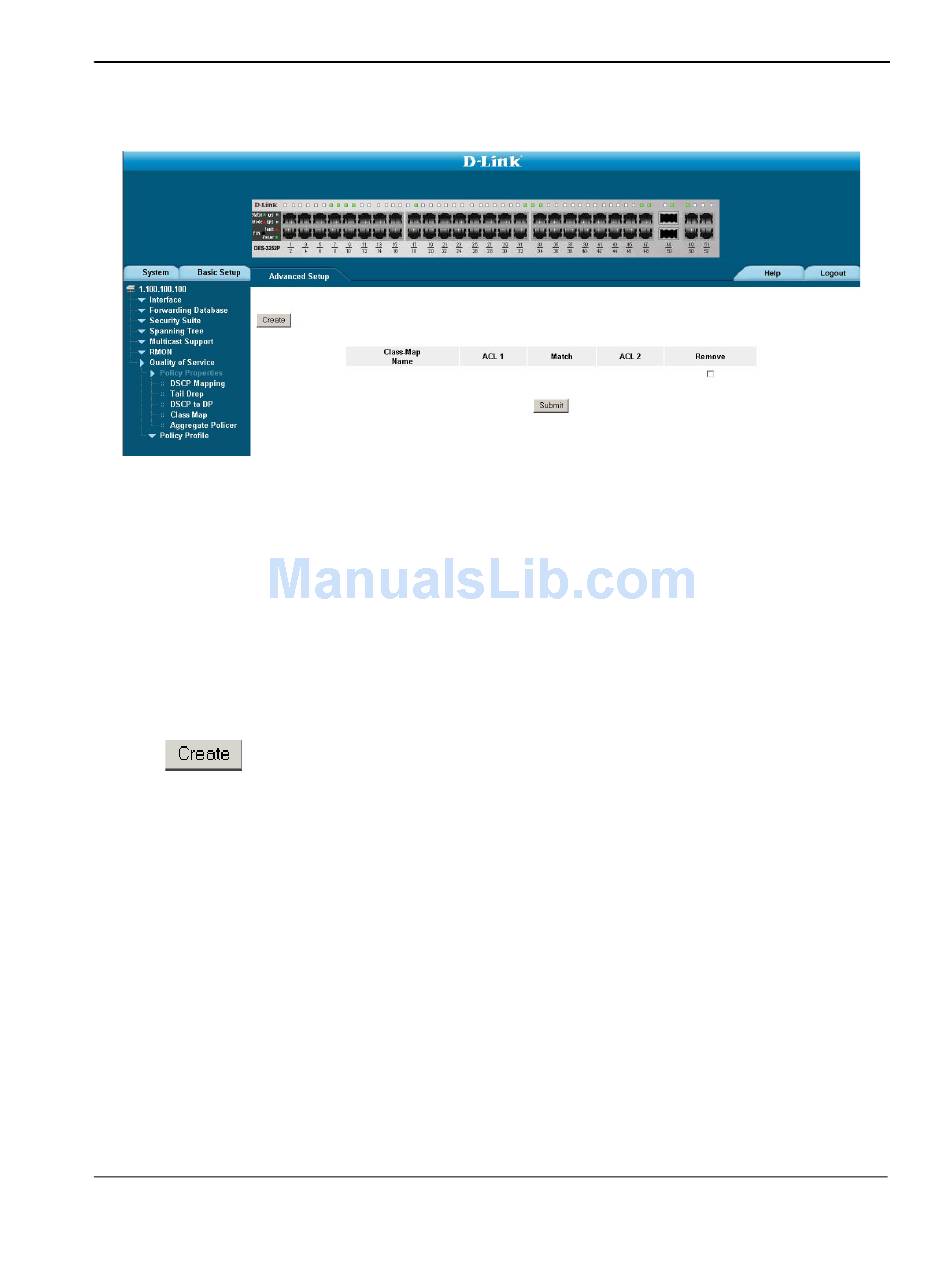

The Class Map Page contains the following fields:
•
— Displays the user-defined name of the class map.
Class-Map Name
•
1— Contains a list of the user defined ACLs.
ACL
•
— Indicates the criteria used to match class maps with an ACL's address. Possible values are:
Match
–
— Matches both ACL 1 and ACL 2 to the packet.
And
–
Or — Matches either ACL 1 or ACL 2 to the packet.
•
2 — Contains a list of the user defined ACLs.
ACL
•
Remove — Removes Class Maps. The possible field values are:
–
Checked — Removes the selected Class Maps.
–
Unchecked — Maintains the current Class Maps.
2. Click . The Add Class Map Page opens.
