Defining Tail Dropping - D-Link Web Smart DES-3252P Install Manual

Defining Tail Dropping

The Tail Drop Page permits network managers to set the device to drop packets which exceed the threshold size.
Tail Drop is configured per queue.
•
Click Advance Setup > Quality of Service > Policy Properties > Tail Drop. The Tail Drop Page opens.

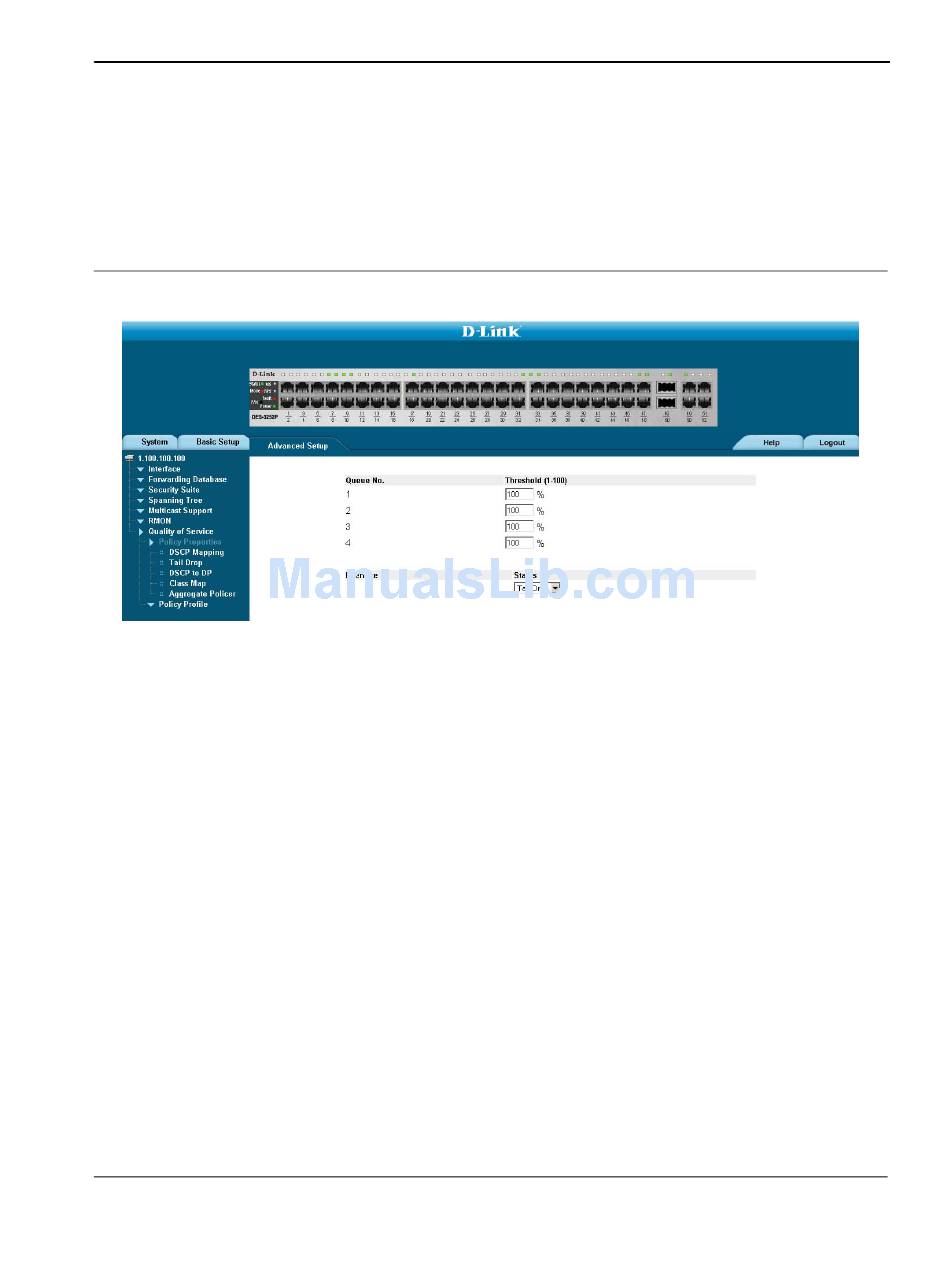

Figure 132:Tail Drop Page
The Tail Drop Page contains the following field:
•
Queue No. — Indicates the traffic queue for which the tail drop settings are defined.
•
Threshold (0-100%) — Defines the bandwidth amount after which packets are dropped. For example, if
queue 2 is presently using 50% of the bandwidth.
Page 200
Configuring Quality of Service
Configuring Advanced QoS Settings
