Understanding the D-Link Embedded Web Interface

The D-Link Embedded Web Interface Home Page contains the following views:
•
Port LED Indicators — Located at the top of the home page, the port LED indicators provide a visual repre-
sentation of the ports on the D-Link front panel.
•
Tab Area — Located under the LED indicators, the tab area contains a list of the device features and their
components.
•
Device View — Located in the main part of the home page, the device view provides a view of the device, an
information or table area, and configuration instructions.

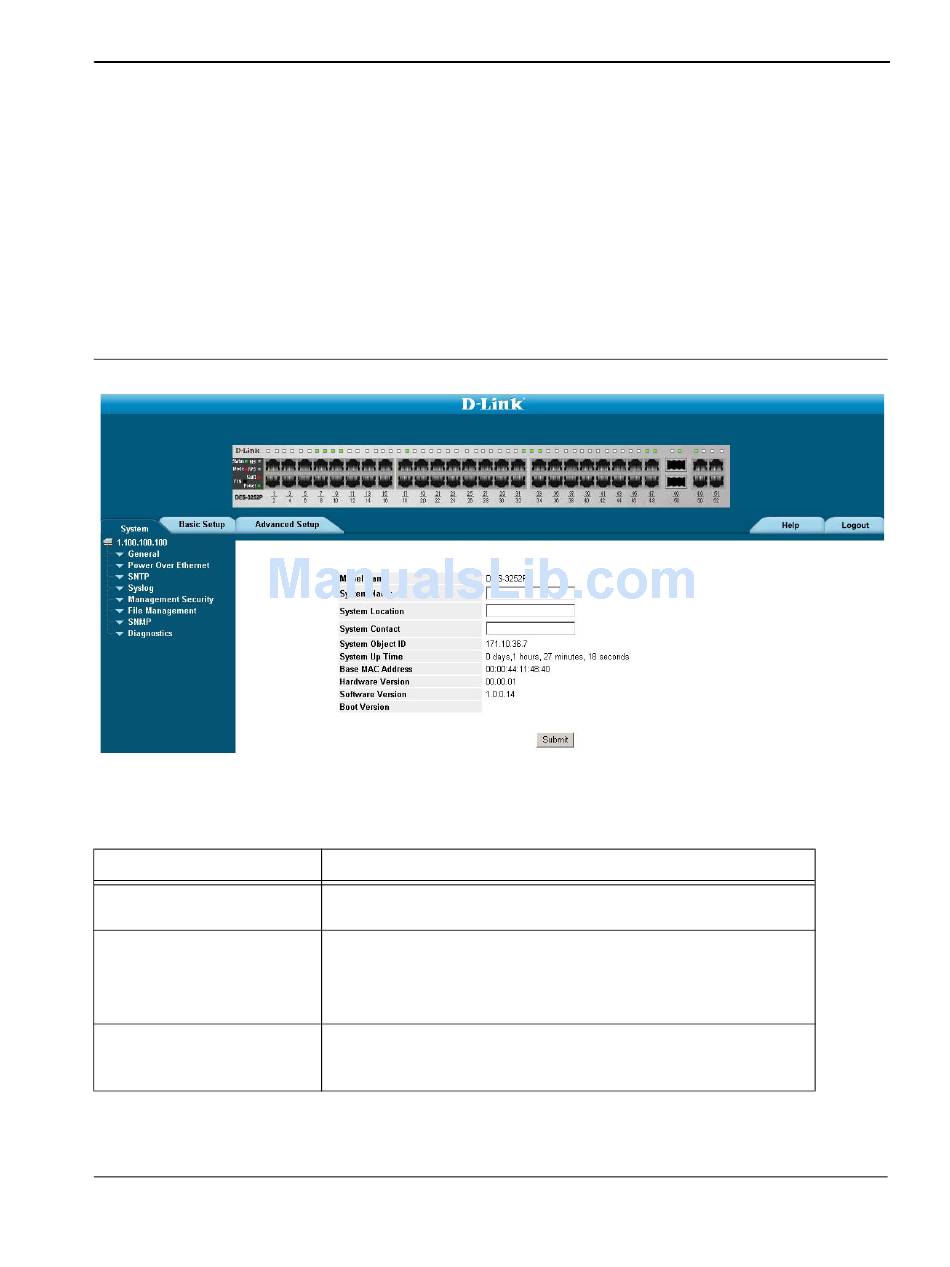

Figure 13: D-Link Embedded Web Interface Components
1
The following table lists the user interface components with their corresponding numbers:
Table 9: Interface Components
Vi ew
1 Tree View
2 Device View
3 Tab Area
4
3
2
Des cri pt i on
Tree View provides easy navigation through the configurable device
features. The main branches expand to display the sub-features.
Device View provides information about device ports, current
configuration and status, table information, and feature
components. Device View also displays other device information
and dialog boxes for configuring parameters.
The Tab Area enables navigation through the different device fea-
tures. Click the tabs to view all the components under a specific fea-
ture.
