DGS-3100 Series Gigabit Stackable Managed Switch User Manual
Understanding the D-Link Embedded Web Interface
The D-Link Embedded Web Interface Device Information Page contains the following information:
View
Tree View
Zoom View
Menu Information View
Device Information View
Stacking Status View
The following table describes the main 6 areas on the Device Information Page:
View
1. Tree View
2. Device
Information View
3. Menu
Information View
4. Zoom View
5
Description
Displays the different system features, and configuration options.
Located at the top of the home page, the port LED indicators provide a visual
representation of the ports on the D-Link front panel.
Located below the Zoom View, displays Save, Tool menu, Stack ID, and Logout buttons. Also
displays Up Time information and User Loggin Identification.
Located in the main part of the home page, the device view provides a view of the
device, an information or table area, and configuration instructions.
Located at the bottom left corner of the home page, the stacking status view provides
a graphic representation of the stacking links and ports status.
Table 1-1. Web Interface Views

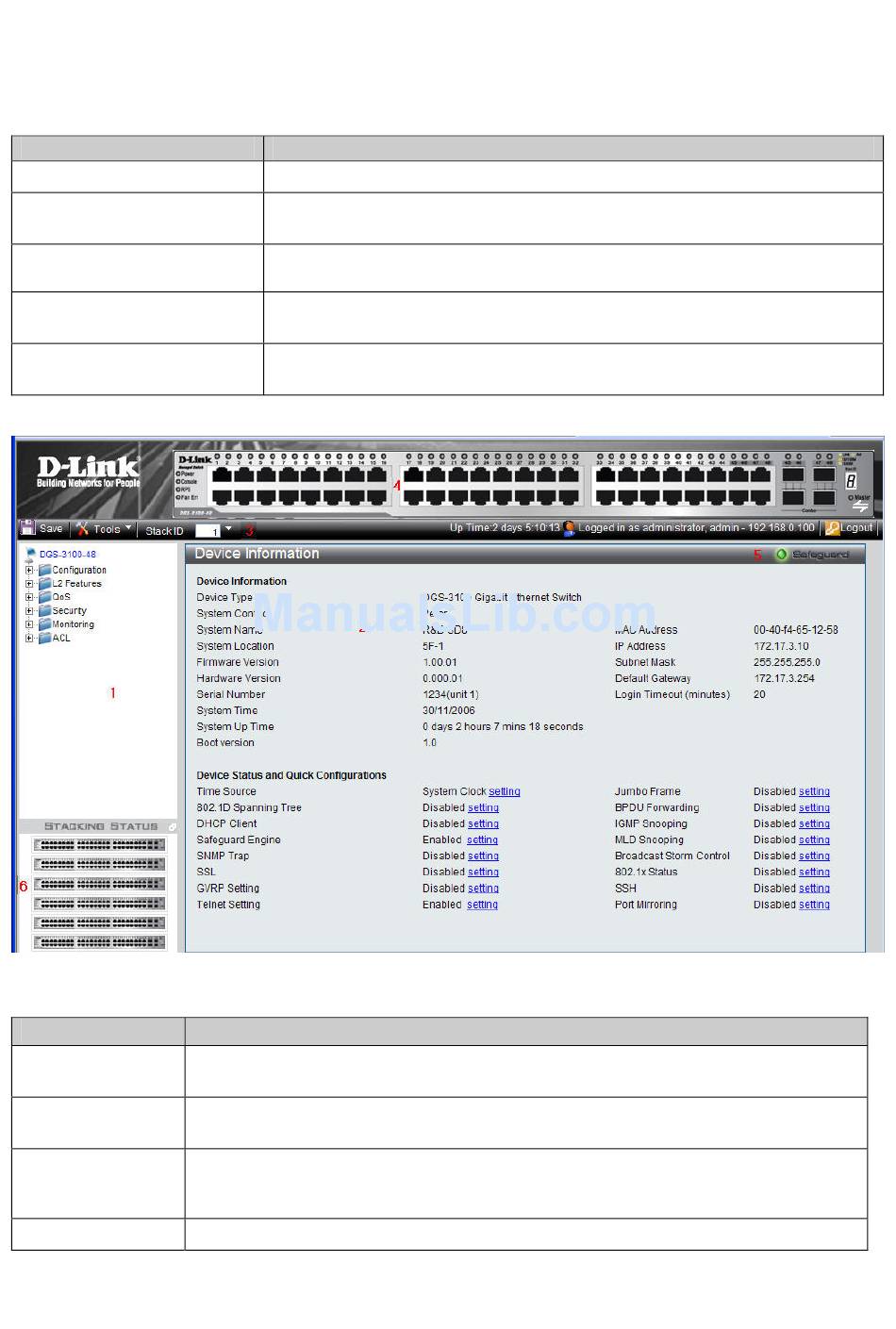

Figure 1-1. Device Information Page
Description
Select the folder or window to be displayed. The folder icons can be opened to display the
hyperlinked menu buttons and subfolders contained within them.
Presents Switch information based on the selection and the entry of configuration data
Presents the Save button, a menu for accessing device tools, and a menu for Stack ID
selection. The current
Up Time and current User Loggin information is reported. The Logout button is
also here.
Presents a graphical near real-time image of the front panel of the Switch. This area displays
