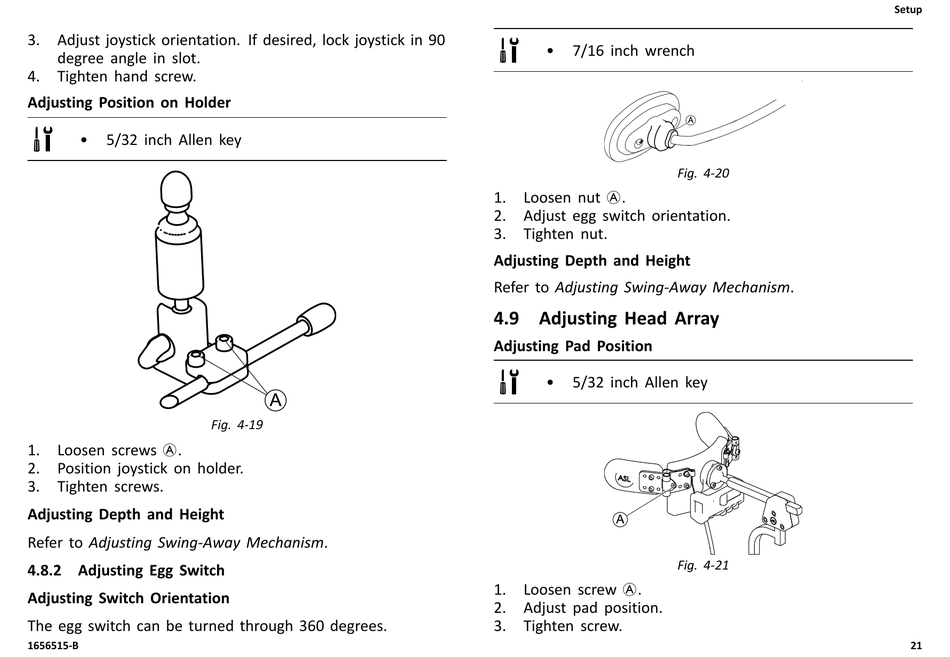

Adjusting Egg Switch; Adjusting Head Array - Invacare Modulite User Manual

3. Adjust joystick orientation. If desired, lock joystick in 90
degree angle in slot.
4. Tighten hand screw.
Adjusting Position on Holder
• 5/32 inch Allen key
1. Loosen screws A.
2. Position joystick on holder.
3. Tighten screws.
Adjusting Depth and Height
Refer to Adjusting Swing-Away Mechanism.

4.8.2 Adjusting Egg Switch

Adjusting Switch Orientation
The egg switch can be turned through 360 degrees.
1656515-B
Fig. 4-19
• 7/16 inch wrench
1. Loosen nut A.
2. Adjust egg switch orientation.
3. Tighten nut.
Adjusting Depth and Height
Refer to Adjusting Swing-Away Mechanism.

4.9 Adjusting Head Array

Adjusting Pad Position
• 5/32 inch Allen key
1. Loosen screw A.
2. Adjust pad position.
3. Tighten screw.
Fig. 4-20
Fig. 4-21
Setup
21
