Analog I/O Board
2-5-6

Specifications

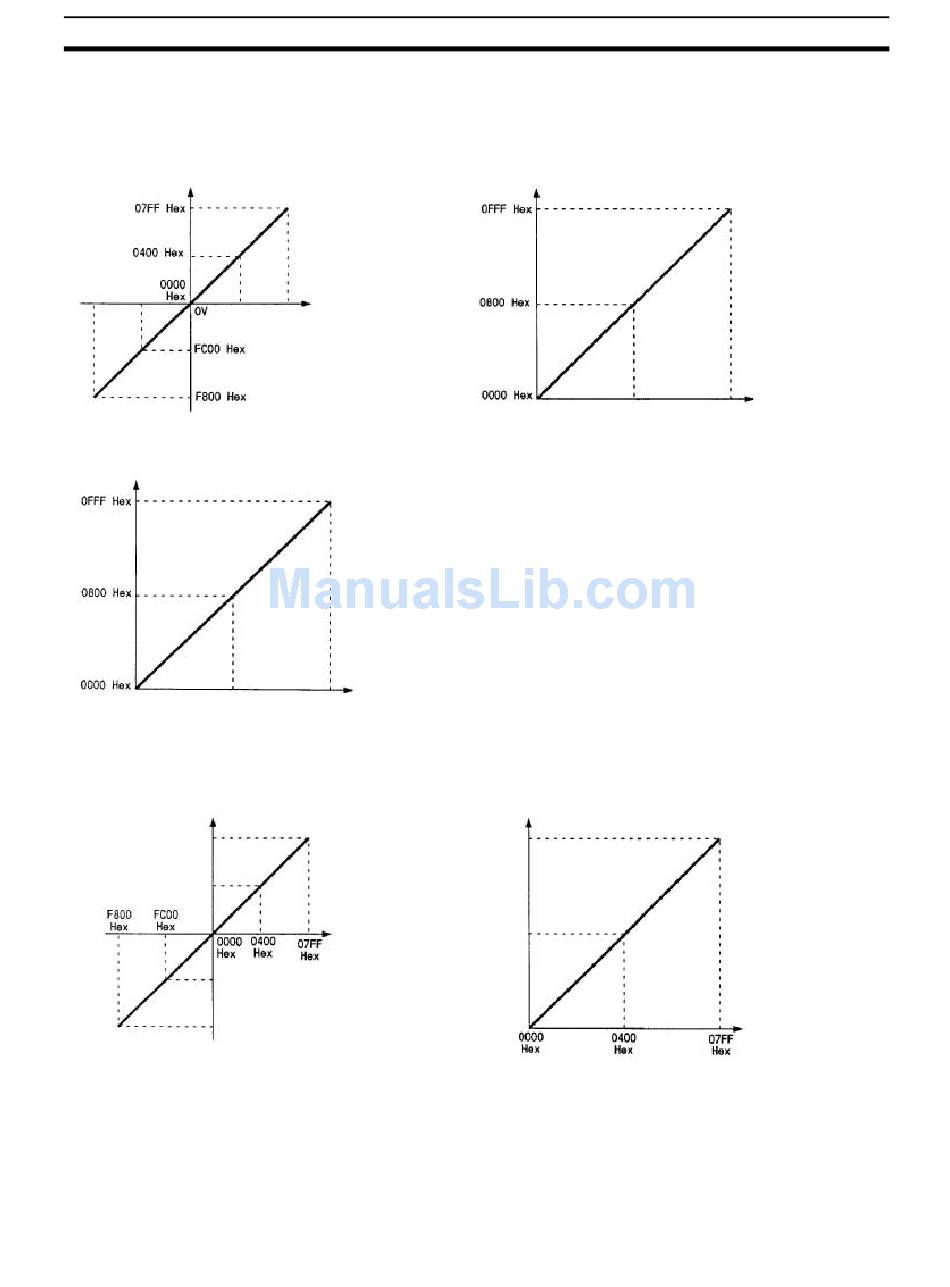

Analog Inputs: Input Data and Converted Values
−10 to +10 V
Converted value
(12-bit binary data)
−10 V
5 V
+5 V
0 to 5 V or 0 to 20 mA
Converted value
(12-bit binary data)
0 V 2.5 V
0 mA 10 mA
Analog Outputs: Settings and Output Data
−10 to +10 V
Analog output signal
+10 V
+5 V
0 V
5 V
10 V
Applications Examples
Analog input signal
+10 V
Analog input signal
5 V
20 mA
Setting (12-bit
binary data)
The Board uses no special instructions. MOV(21) is used to read analog input
values and set analog output values.
0 to +10 V
Converted value
(12-bit binary data)
0 V 5 V
0 to 20 mA
Analog output signal
20 mA
10 mA
0 mA
Section 2-5
Analog input signal
10 V
Setting (11-bit
binary data)
