Omron CQM1H - PROGRAM Programming Manual page 95

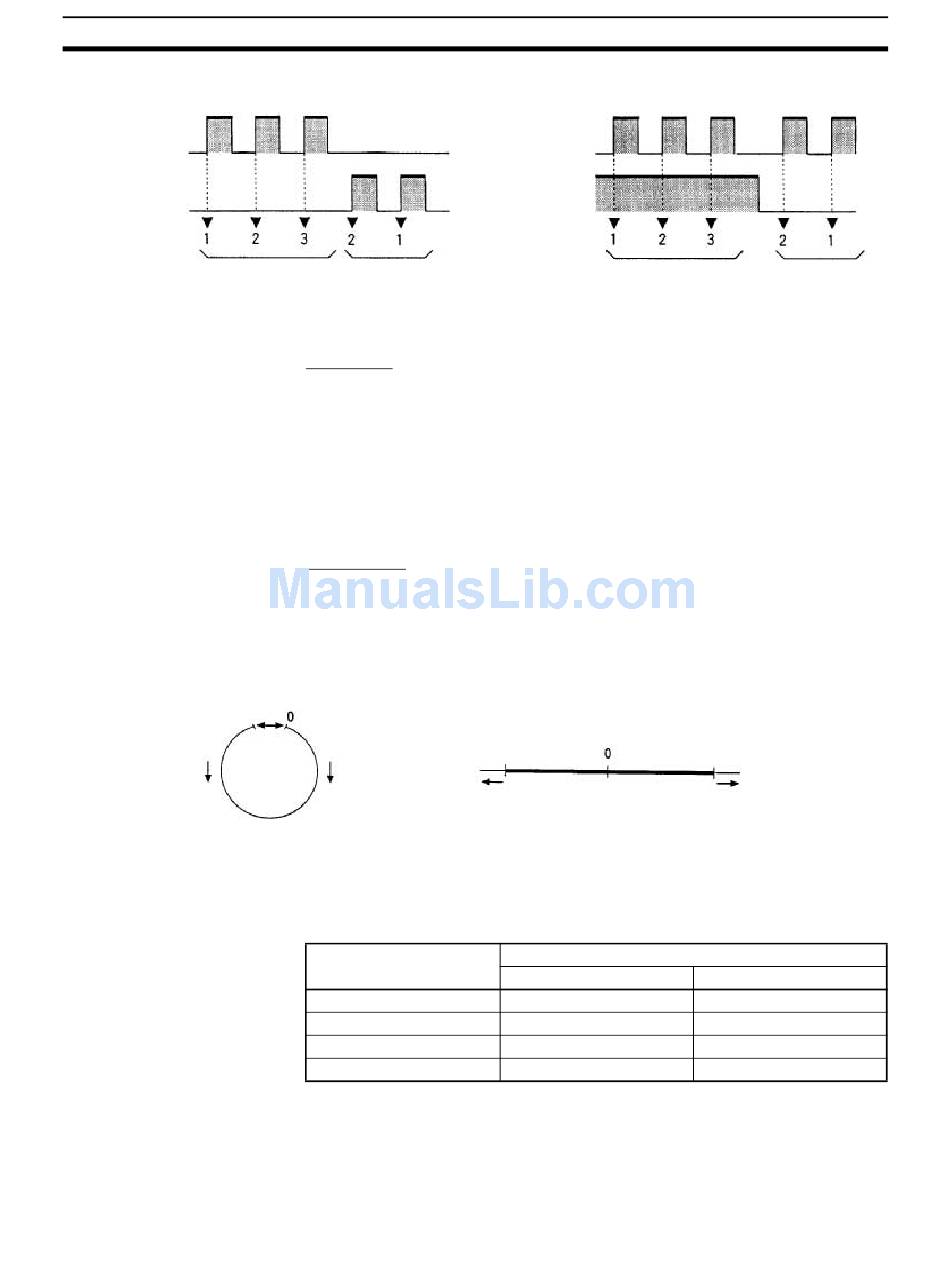

High-speed Counter Board
Up/Down Mode
Encoder input A
(UP input)
Encoder input B
(DOWN input)
Increment
Numeric Ranges
Ring Mode
Max. count value
(Ring value)
Decrement
70
Encoder input A
(Pulse input)
Encoder input B
(Direction input)
Decrement
The values counted by high-speed counters 1 to 4 can be counted using the
following two range settings:
Ring Mode
In Ring Mode, the maximum value of a numerical range can be set using
CTBL(63), and when the count is increment beyond this maximum value, it
returns to zero. The count never becomes negative. Similarly, if the count is
decremented from 0, it returns to the maximum value. The number of points
on the ring is determined by setting the maximum value (i.e., the ring value) to
a value between 1 and 8388607 BCD or between 1 and 7FFFFFFF Hex.
When the maximum value is set to 8388607, the range will be 0 to 8388607
BCD.
Linear Mode
In Linear Mode, the count range is always –8388608 to 8388607 BCD or
F8000000 to 07FFFFFF Hex. If the count decrements below –8388608 BCD
or F8000000 Hex, an underflow is generated, and if it increments above
8388607 BCD or 07FFFFFF Hex, an overflow is generated.
F8000000 Hex
−8388608 BCD
Increment
Underflow
If an overflow occurs, the PV of the count will remain at 08388607 BCD or
07FFFFFF Hex, and if an underflow occurs, it will remain at F8388608 BCD or
F8000000 Hex. In either case, counting and comparison will stop, but the
comparison table will be retained in memory. The PV Overflow/Underflow Flag
shown below will turn ON to indicate the underflow or overflow.
Counter
High-speed counter 1
High-speed counter 2
High-speed counter 3
High-speed counter 4
When restarting the counting operation, use the reset methods given below to
reset high-speed counters 1 and 2. (Counters will be reset automatically when
program execution starts and finishes.)
Pulse/Direction Mode
Increment
Linear Mode
PV Overflow/Underflow Flag
Slot 1
IR 20814
IR 20914
IR 21014
IR 21114
Section 2-1
Decrement
07FFFFFF Hex
Overflow
Slot 2
IR 24014
IR 24114
IR 24214
IR 24314
