Pulse Output Function

1-5

Pulse Output Function

Pulse Output Operations
44
This section explains the settings and methods for using the CQM1H pulse
output function. Refer to the CQM1H Operation Manual for details on hard-
ware connections to output points and ports.

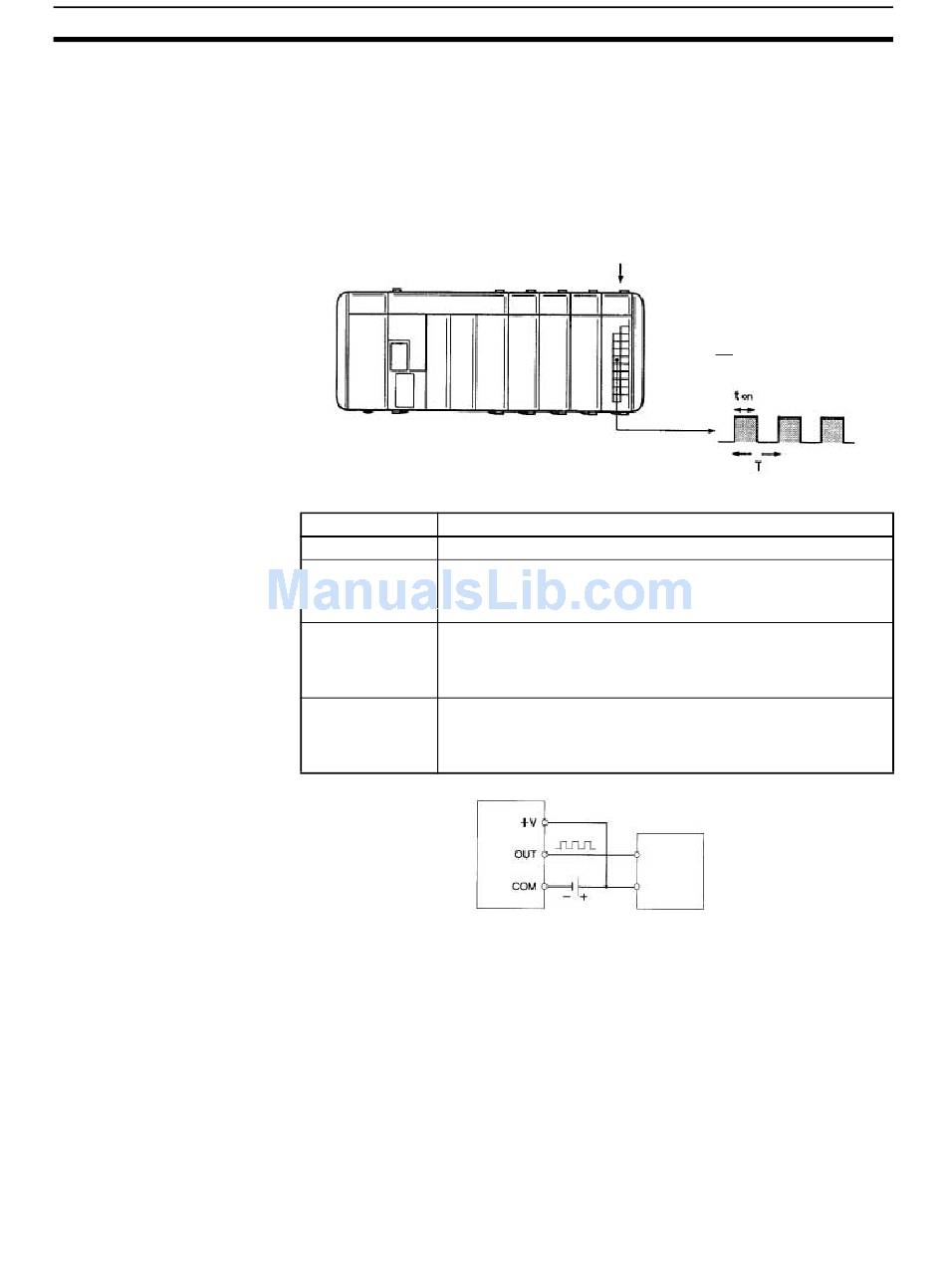

Standard pulses can be output from a Transistor Output Unit's output using
SPED(64). Pulses can be output from just one bit at a time. The duty factor of
the pulse output is 50% and the frequency can be set from 20 Hz to 1 kHz.
Item
Applicable Unit
Pulse output
Features
Applicable instruc-
tions
The following table shows the pulse output operations that can be made with
combinations of PULS(65), SPED(64), and INI(61).
Note A Transistor Output Unit must be used for this application.
Transistor Output Unit
Specification
Transistor Output Unit
Pulse output from specified bit
Any output word from IR 100 to IR 115 can be specified, but
pulses can be output from just one bit of the word at a time.
Frequency: 20 Hz to 1 kHz
Duty factor: 50%
Word specification: PC Setup (DM 6615)
Bit specification: In the ladder instruction
Setting number of pulses: PULS(65)
Starting the pulse output: SPED(64)
Changing the frequency:
Stopping the pulse output: SPED(64) or INI(61)
Transistor Output Unit
24 V DC
Section 1-5
t
on
=50% (0.5)
T
SPED(64)
Motor driver
