Special Instructions
1,2,3...
Control Data
Logic Diagnostic
Instructions
388

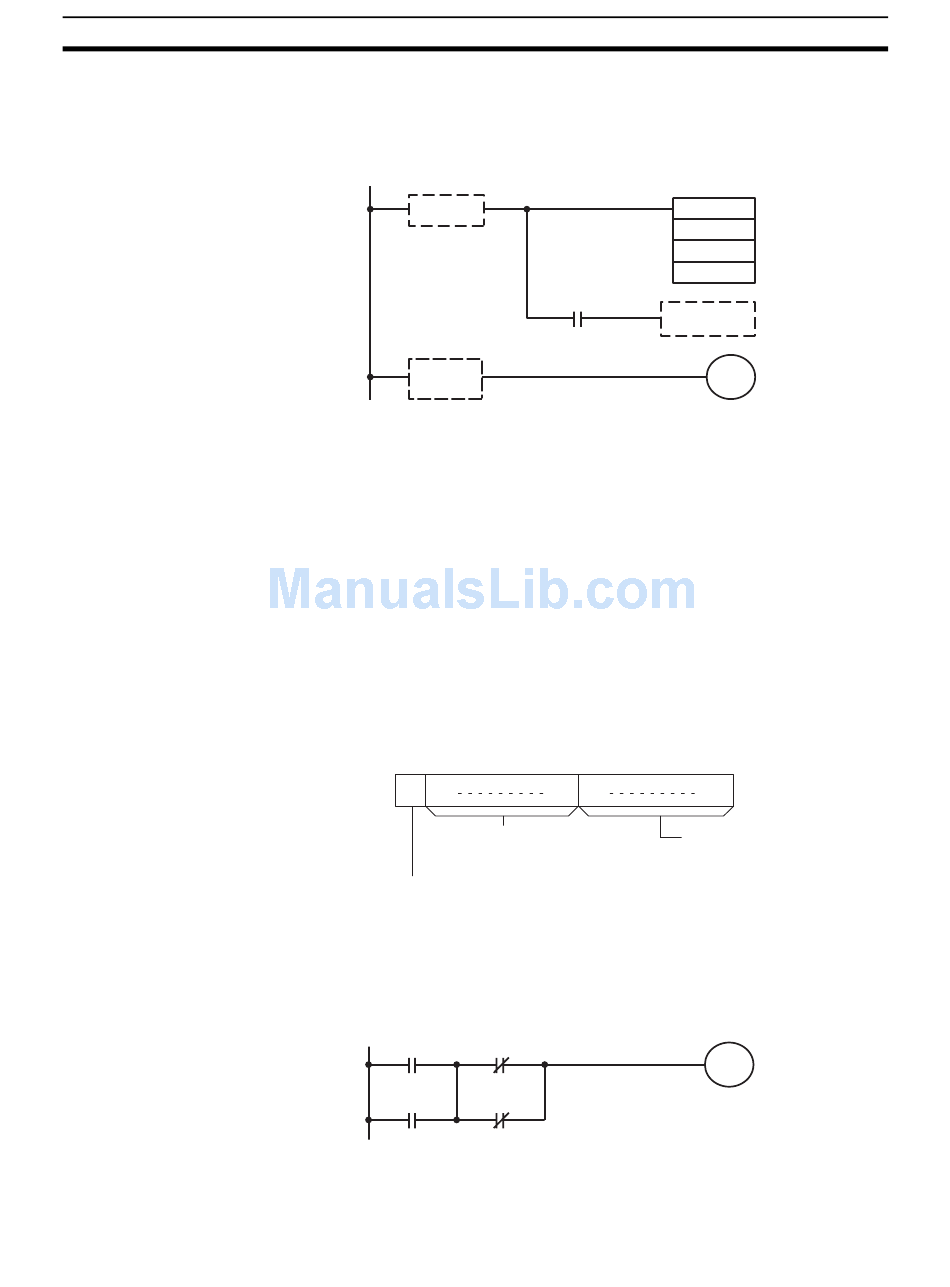

The program sections marked by dashed lines in the following diagram can be
written according to the needs of the particular program application. The pro-
cessing programming section triggered by CY is optional and can be used any
instructions but LD and LD NOT. The logic diagnostic instructions and execu-
tion condition can consist of any combination of NC or NO conditions desired.
Execution
condition
Logic
diagnostic
instructions
When the execution condition is OFF, FPD(––) is not executed. When the exe-
cution condition is ON, FPD(––) monitors the time until the logic diagnostics
condition goes ON, turning ON the diagnostic output. If this time exceeds T,
the following will occur:
1. An FAL(06) error is generated with the FAL number specified in the first two
digits of C. If 00 is specified, however, an error will not be generated.
2. The logic diagnostic instructions are searched for the first OFF input con-
dition and this condition's bit address is output to the destination words be-
ginning at D.
3. The CY Flag (SR 25504) is turned ON. An error processing program sec-
tion can be executed using the CY Flag if desired.
4. If bit 15 of C is ON, a preset message with up to 8 ASCII characters will be
displayed on the Peripheral Device along with the bit address mentioned
in step 2.
The function of the control data bits in C are shown in the following diagram.
C: 15 14
Not used. Set to zero.
Diagnostics output
0 (OFF): Bit address output (binary)
1 (ON):
If the time until the logic diagnostics condition goes ON exceeds T, the logic
diagnostic instructions are searched for the OFF input condition. If more than
one input condition is OFF, the input condition on the highest instruction line
and nearest the left bus bar is selected.
00000
00001
When IR 00000 to IR 00003 are ON, the normally closed condition IR 00002
would be found as the cause of the diagnostic output not turning ON.
Branch
SR 25504
(CY Flag)
08 07
Bit address and message output (ASCII)
00002
00003
Section 5-28
FPD(−−)(50)
C
T
D
Processing after
error detection.
Diagnostic
output
00
FAL number
(2-digit BCD, 00 to 99)
Diagnostic
output
