Pulse I/O Board
Trapezoidal Pulse Output
With Different
Acceleration/Deceleration
Determine port mode.
Determine pulse output port.
Mount Board and wire output.
PC Setup
(DM 6611/DM 6643/DM 6644)
Ladder Program
Trapezoidal Acceleration/Deceleration Pulse Outputs
Port Mode Setting
Simple Positioning or
High-speed Counter Mode
PC Setup
Set DM 6611 to
0001.

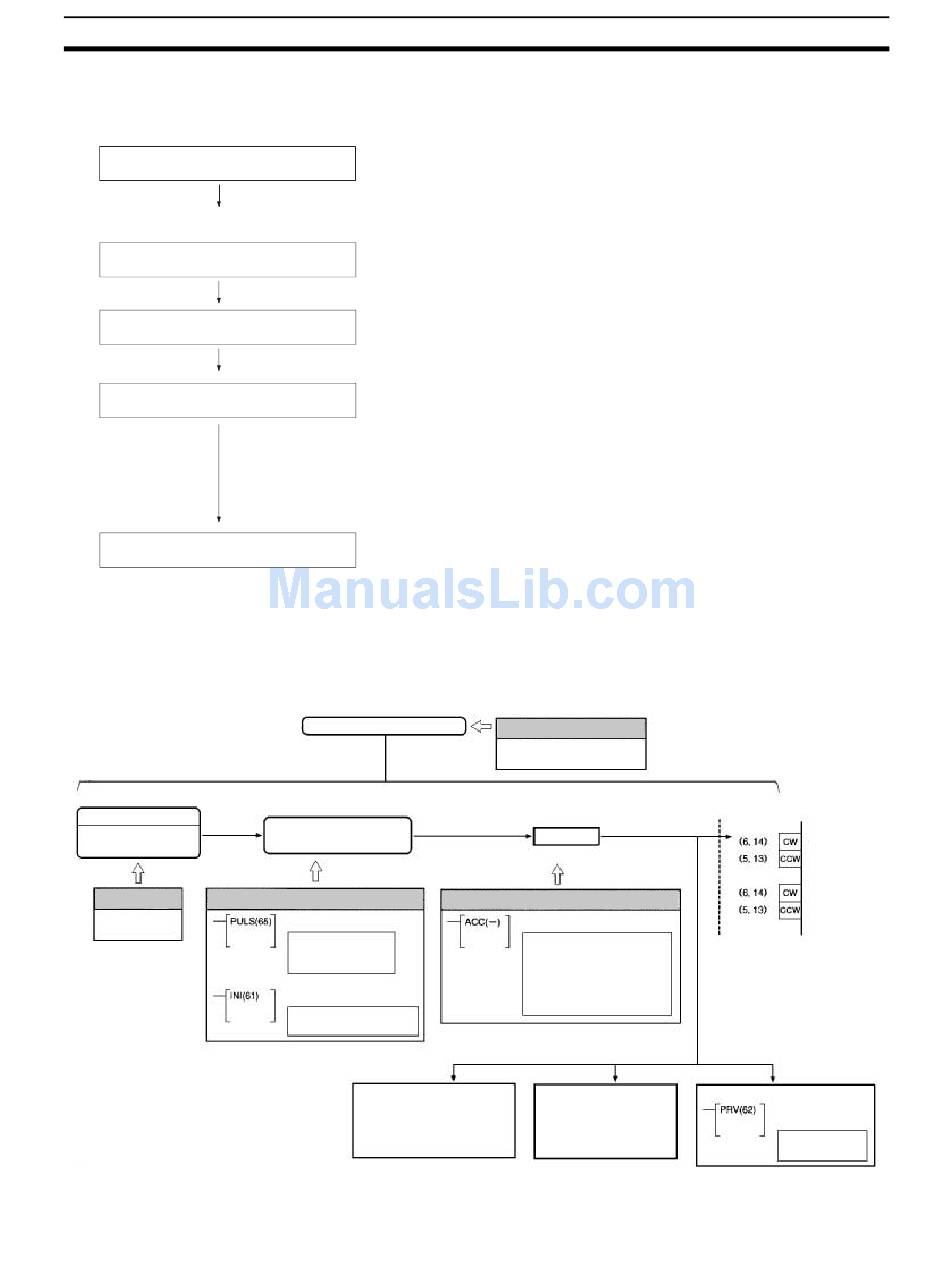

The following flowchart shows the procedure for using PULS(65) and
ACC(––) to perform trapezoidal pulse outputs with different acceleration/
deceleration rates.
Simple Positioning Mode:
All functions of ACC(−−) can be used.
High-speed Counter Mode:
Modes 1 to 3 of ACC(−−) can be used; Mode 0 (Acceleration + Indepen-
dent) is disabled.
Port 1 or port 2.
Output:
CW/CCW with/without 1.6 kΩ resistance.
Power supply for output: 5/24 V DC
Port Mode Setting (DM 6611):
Set to High-speed Counter Mode (0000 Hex) or Simple Positioning Mode
(0001 Hex). See note.
Operation settings for ports 1 and 2 (DM 6643/DM 6644):
Set to fixed duty factor.
Note: ACC(−−) Mode 0 (Acceleration + Independent) cannot be used in
High-speed Counter Mode.
SET PULSES, PULS(65):
Set number of output pulses for each port.
ACCELERATION CONTROL, ACC(−−):
Port-specific trapezoidal acceleration/deceleration pulse output control with
different acceleration/deceleration rates.
MODE CONTROL, INI(61):
Stop pulse output to a specified port.
HIGH-SPEED COUNTER PV READ, PRV(62):
Read pulse output status of a specified port.
Fixed duty factor pulse output
Trapezoidal Acceleration/
Deceleration Pulse Outputs
Ladder Program
OUTPUT PULSES
No. of pulses output
8-digit BCD (00000001
to 16777215)
MODE CONTROL
Pulse output stop
Pulse output PV change
Pulse output status
AR 05 to AR 06
PC Setup
Bits 12 to 15 of
DM 6643/DM 6644 set to 0.
Output
Ladder Program
ACCELERATION CONTROL
Mode setting
Target: 0 to 50 kHz
Acc/dece rate (separate):
4.08 ms
10 Hz to 2 kHz
Starting pulse output
Each cycle Each cycle
Pulse output PV
Port 1: IR 237, IR 236
Port 2: IR 239, IR238
Section 2-2
Pulse I/O Board
− Pulse output
− Port 1 (CN1)
− Pulse output
− Port 2 (CN2)
Each execution
HIGH-SPEED
COUNTER PV
READ
Output status
read
