Analog I/O Board
2-5-4

Applicable Inner Board Slot

2-5-5

Names and Functions

LED Indicators
138

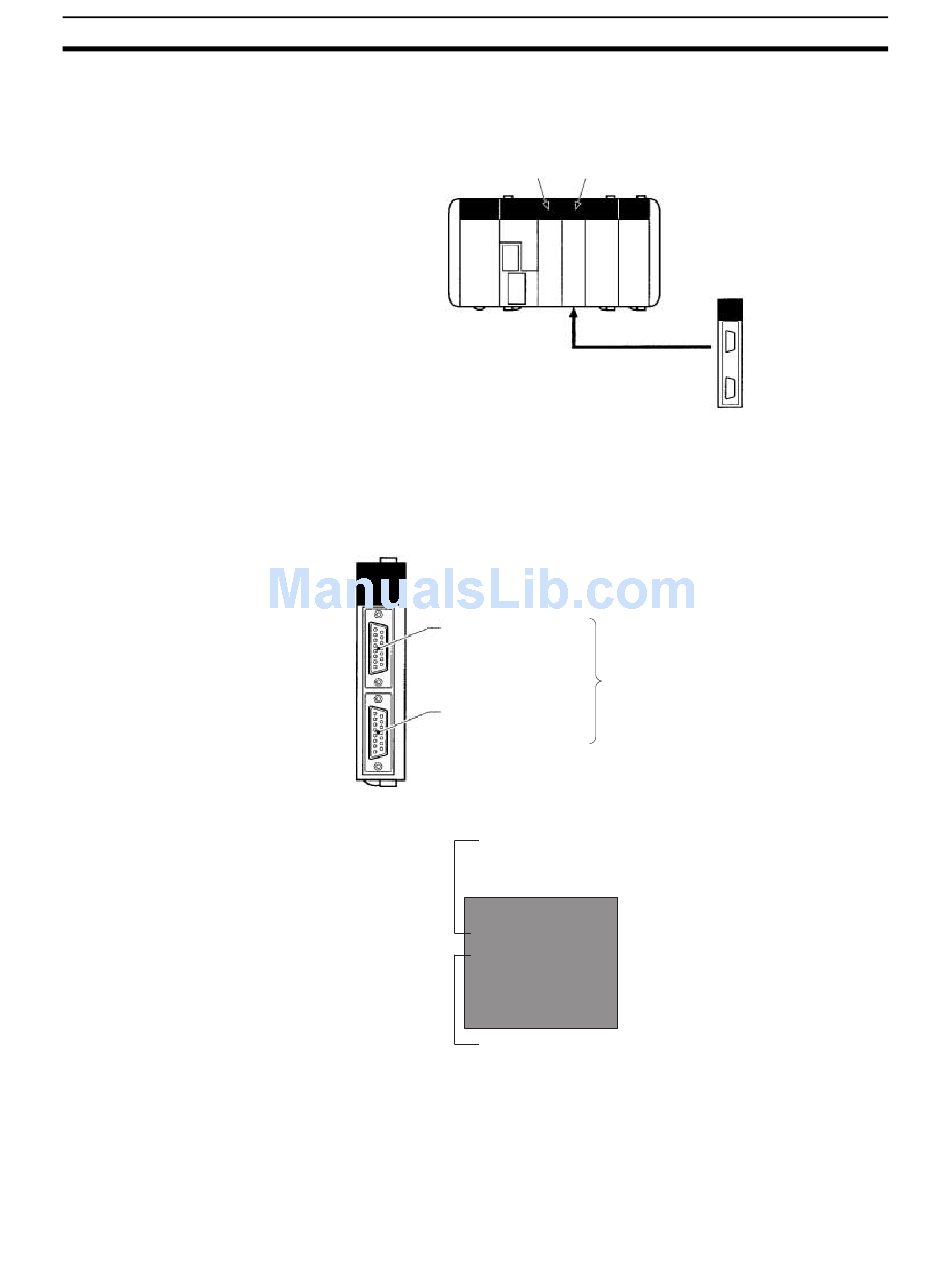

The Analog I/O Board can only be mounted in slot 2 (right slot) of the
CQM1H-CPU51/61 CPU Unit.
The Analog I/O Board has a CN1 connector for the four analog inputs and a
CN2 connector for 2 analog outputs.
CQM1H-MAB42
Analog I/O Board
CN1
Analog inputs 1 to 4
CN2
Analog outputs 1 to 2
ERR
RDY
Slot 1: No Slot 2: OK
Compatible connector
Socket: XM2D-1501 (OMRON)
Hood: XM2S-1511 (OMRON)
Two Socket+Hood sets are pro-
vided as standard accessories.
ERR (Red)
Lit when there is an error in the PC Set-
up for analog I/O, or when an error has
occurred during analog conversion.
(
(
RDY (Green)
Lit when analog I/O can be performed.
Section 2-5
