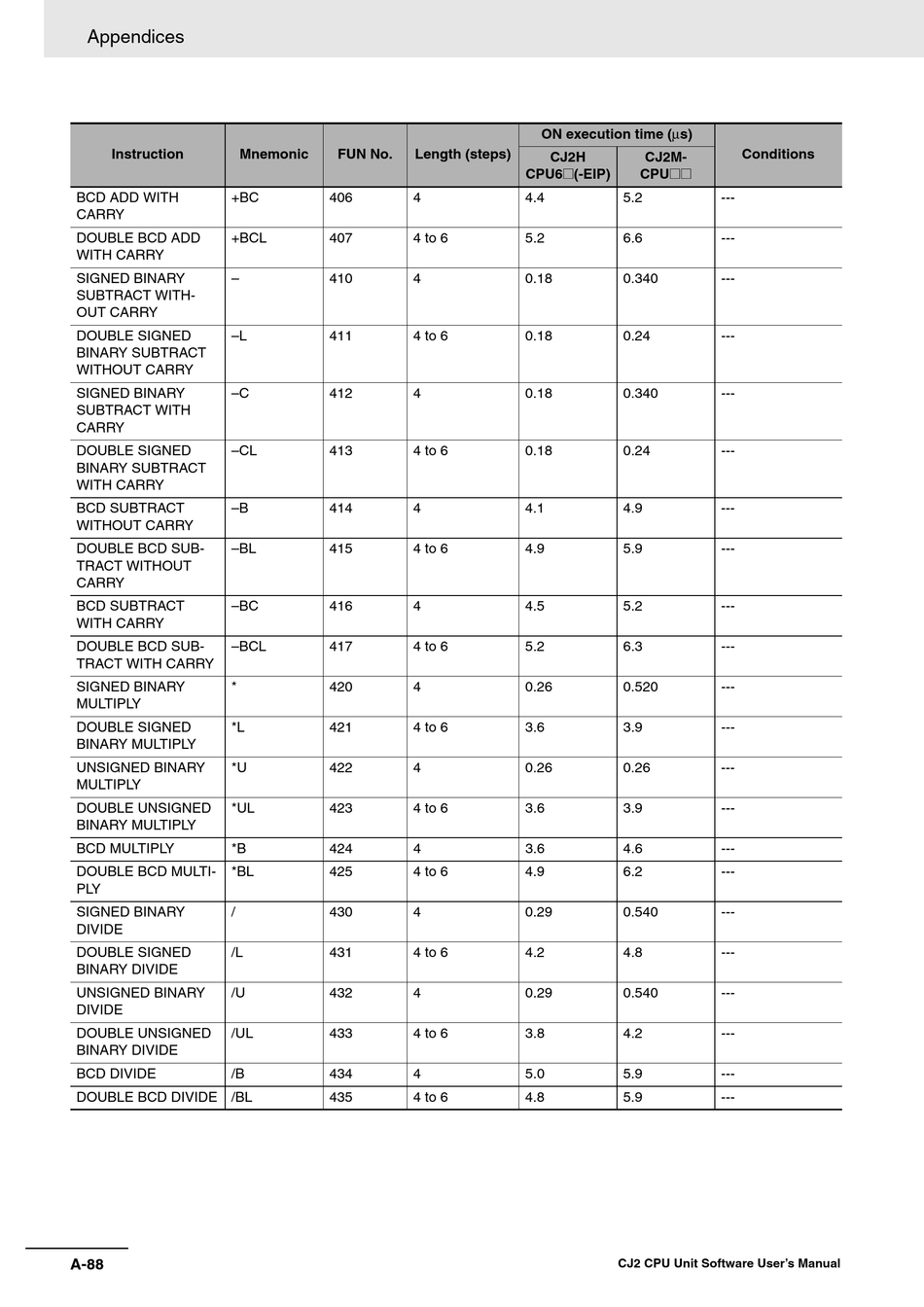

Omron CJ2 CPU UNIT SOFTWARE User Manual page 572

Appendices
Instruction Mnemonic
BCD ADD WITH +BC
CARRY
DOUBLE BCD ADD +BCL
WITH CARRY
SIGNED BINARY –
SUBTRACT WITH-
OUT CARRY
DOUBLE SIGNED –L
BINARY SUBTRACT
WITHOUT CARRY
SIGNED BINARY –C
SUBTRACT WITH
CARRY
DOUBLE SIGNED –CL
BINARY SUBTRACT
WITH CARRY
BCD SUBTRACT –B
WITHOUT CARRY
DOUBLE BCD SUB- –BL
TRACT WITHOUT
CARRY
BCD SUBTRACT –BC
WITH CARRY
DOUBLE BCD SUB- –BCL
TRACT WITH CARRY
SIGNED BINARY *
MULTIPLY
DOUBLE SIGNED *L
BINARY MULTIPLY
UNSIGNED BINARY *U
MULTIPLY
DOUBLE UNSIGNED *UL
BINARY MULTIPLY
BCD MULTIPLY *B
DOUBLE BCD MULTI- *BL
PLY
SIGNED BINARY /
DIVIDE
DOUBLE SIGNED /L
BINARY DIVIDE
UNSIGNED BINARY /U
DIVIDE
DOUBLE UNSIGNED /UL
BINARY DIVIDE
BCD DIVIDE /B
DOUBLE BCD DIVIDE /BL
A-88
FUN No. Length (steps)
406 4
407 4 to 6
410 4
411 4 to 6
412 4
413 4 to 6
414 4
415 4 to 6
416 4
417 4 to 6
420 4
421 4 to 6
422 4
423 4 to 6
424 4
425 4 to 6
430 4
431 4 to 6
432 4
433 4 to 6
434 4
435 4 to 6
ON execution time (µs)
CJ2H CJ2M-
CPU6@(-EIP) CPU@@
4.4 5.2
5.2 6.6
0.18 0.340
0.18 0.24
0.18 0.340
0.18 0.24
4.1 4.9
4.9 5.9
4.5 5.2
5.2 6.3
0.26 0.520
3.6 3.9
0.26 0.26
3.6 3.9
3.6 4.6
4.9 6.2
0.29 0.540
4.2 4.8
0.29 0.540
3.8 4.2
5.0 5.9
4.8 5.9
CJ2 CPU Unit Software User's Manual
Conditions
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
