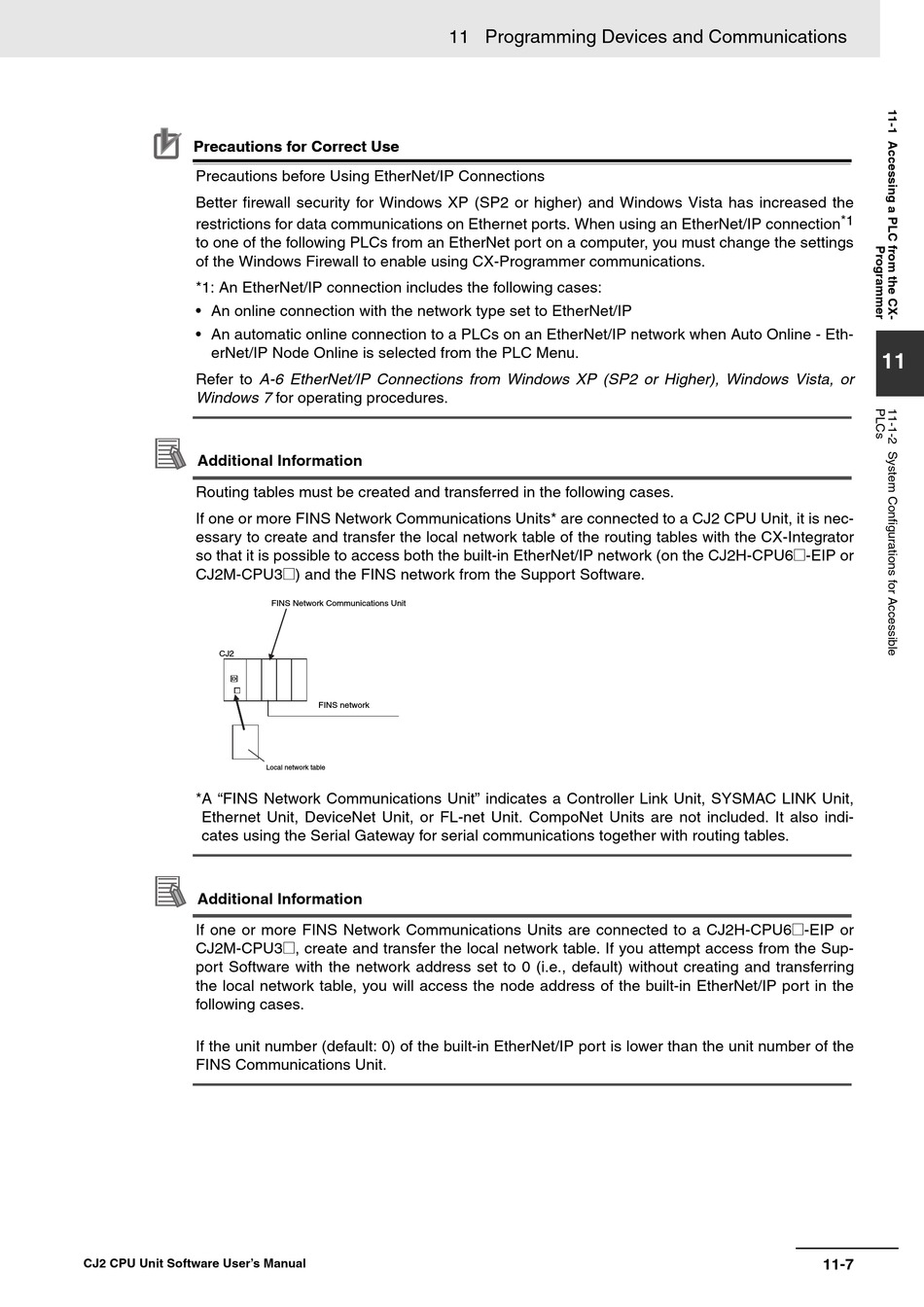

Omron CJ2 CPU UNIT SOFTWARE User Manual page 443

Precautions for Correct Use Precautions for Correct Use
Precautions before Using EtherNet/IP Connections
Better firewall security for Windows XP (SP2 or higher) and Windows Vista has increased the
restrictions for data communications on Ethernet ports. When using an EtherNet/IP connection
to one of the following PLCs from an EtherNet port on a computer, you must change the settings
of the Windows Firewall to enable using CX-Programmer communications.
*1: An EtherNet/IP connection includes the following cases:
• An online connection with the network type set to EtherNet/IP
• An automatic online connection to a PLCs on an EtherNet/IP network when Auto Online - Eth-
erNet/IP Node Online is selected from the PLC Menu.
Refer to A-6 EtherNet/IP Connections from Windows XP (SP2 or Higher), Windows Vista, or
Windows 7 for operating procedures.
Additional Information
Routing tables must be created and transferred in the following cases.
If one or more FINS Network Communications Units* are connected to a CJ2 CPU Unit, it is nec-
essary to create and transfer the local network table of the routing tables with the CX-Integrator
so that it is possible to access both the built-in EtherNet/IP network (on the CJ2H-CPU6@-EIP or
CJ2M-CPU3@) and the FINS network from the Support Software.
CJ2
*A "FINS Network Communications Unit" indicates a Controller Link Unit, SYSMAC LINK Unit,
Ethernet Unit, DeviceNet Unit, or FL-net Unit. CompoNet Units are not included. It also indi-
cates using the Serial Gateway for serial communications together with routing tables.
Additional Information
If one or more FINS Network Communications Units are connected to a CJ2H-CPU6@-EIP or
CJ2M-CPU3@, create and transfer the local network table. If you attempt access from the Sup-
port Software with the network address set to 0 (i.e., default) without creating and transferring
the local network table, you will access the node address of the built-in EtherNet/IP port in the
following cases.
If the unit number (default: 0) of the built-in EtherNet/IP port is lower than the unit number of the
FINS Communications Unit.
CJ2 CPU Unit Software User's Manual
FINS Network Communications Unit
FINS network
Local network table
