Error Simulation Function

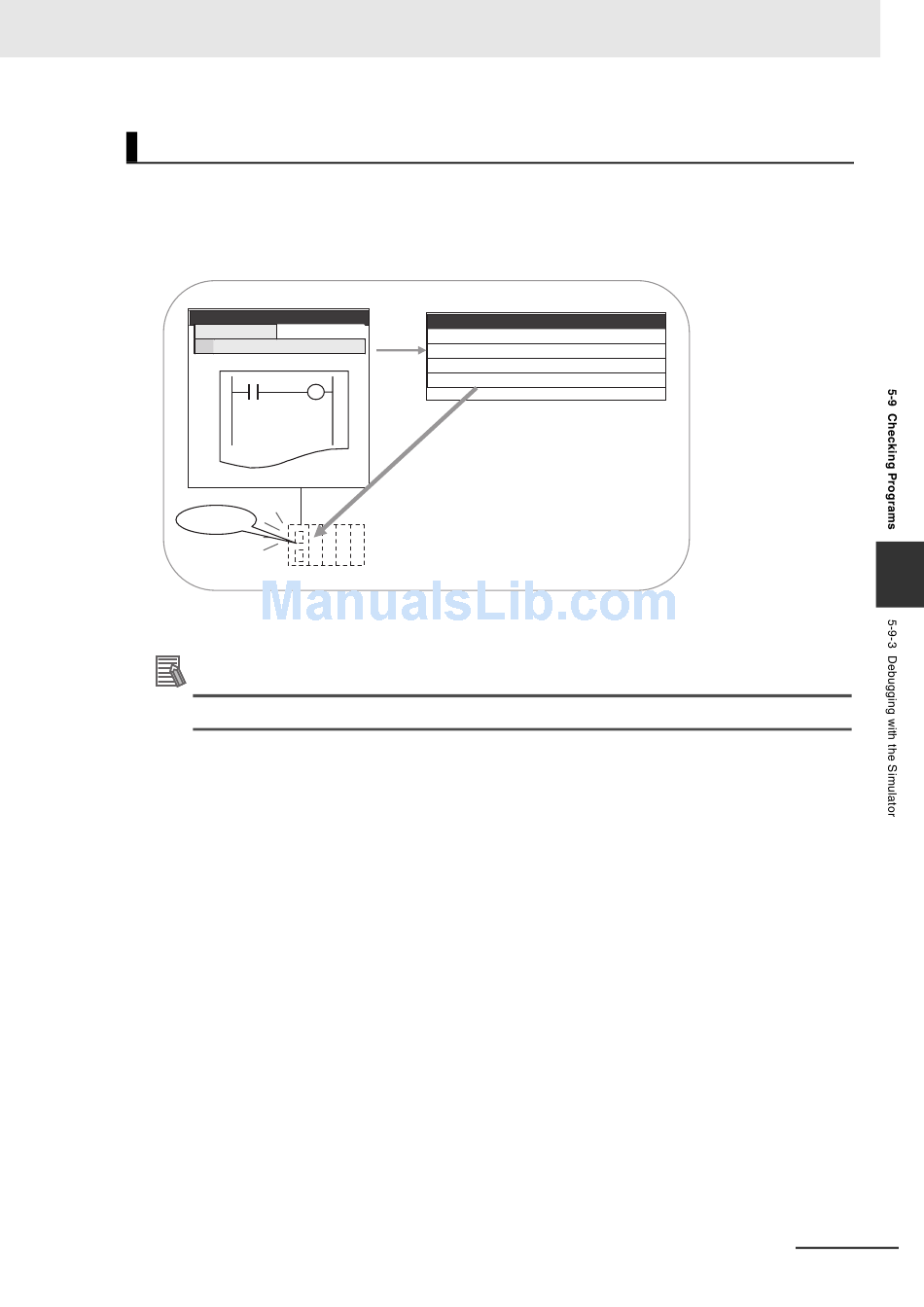

With the CX-Programmer, it is possible to generate system errors in the virtual PLC during ladder pro-
gramming simulation. It is easy to check operation of the ladder programming an the NS-series PT
when a PLC system error occurs by generating the desired fatal or non-fatal system error using a spe-
cial operation window. For information on the debugging procedure, refer to the CX-Programmer Oper-
ation Manual (Cat. No. W446).
CX-Programmer
Simulation
PLC error generation simulator
Simulation in progress
Error occurs
Note Unlike with an actual error, ladder execution will not stop even if a fatal error is generated using the PLC error
generation simulation function.
Additional Information
System errors can also be generated in the PLC by using a FAL(006) or FALS(007) instruction.
CJ2 CPU Unit Software User's Manual
PLC Error Generation Simulator
Error List
1. Start
Example: Turn ON battery error (A402.04).
2. Error generation indication
Virtual PLC
3. Error generation is simulated.
5 Understanding Programming
Turn ON the Cycle Time Exceeded Flag (A401.08).
Turn ON the Memory Error Flag (A401.15).
