Use Pulse I/O and Interrupt Inputs (CJ2M CPU Units Only)
With the CJ2M CPU Units, up to two Pulse I/O Modules can be mounted. This enables input functions,
such as general-purpose inputs, interrupt inputs, high-speed counter inputs, and quick-response inputs,
and output functions, such as general-purpose outputs, pulse outputs, and variable duty factor pulse
outputs. This provides support for many different types of applications.

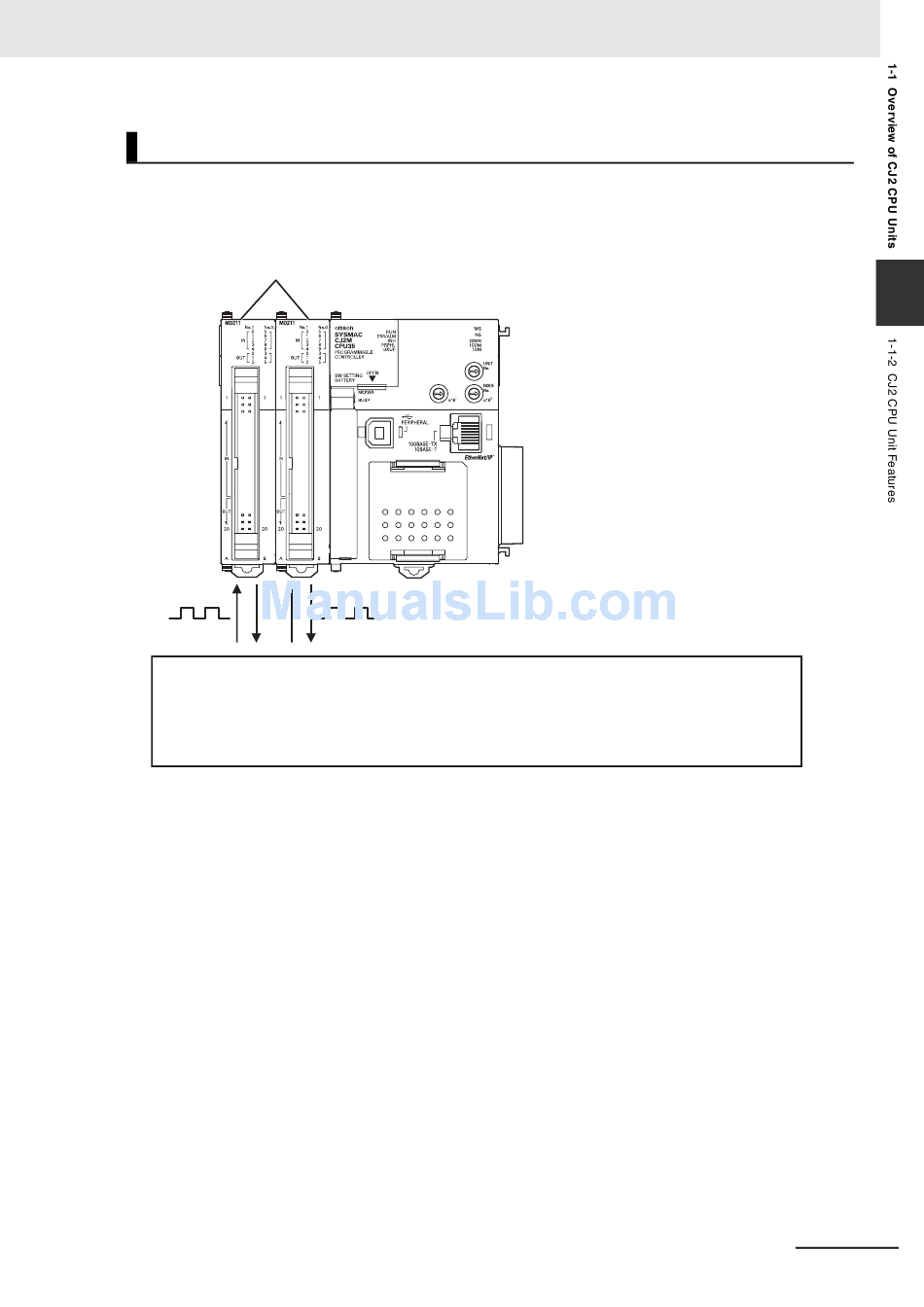

Pulse I/O Module
• Normal inputs: 20 (10 per Pulse I/O Module)
• Interrupt inputs: 8 (4 per Pulse I/O Module)
• High-speed counter inputs: 4 (2 per Pulse I/O Module)
• Quick-response inputs: 8 (4 per Pulse I/O Module)
CJ2 CPU Unit Software User's Manual
• Normal outputs: 12 (6 per Pulse I/O Module)
• Pulse outputs: 4 (2 per Pulse I/O Module)
• Variable duty factor pulse outputs: 4
(2 per Pulse I/O Module)
