10 CPU Unit Functions

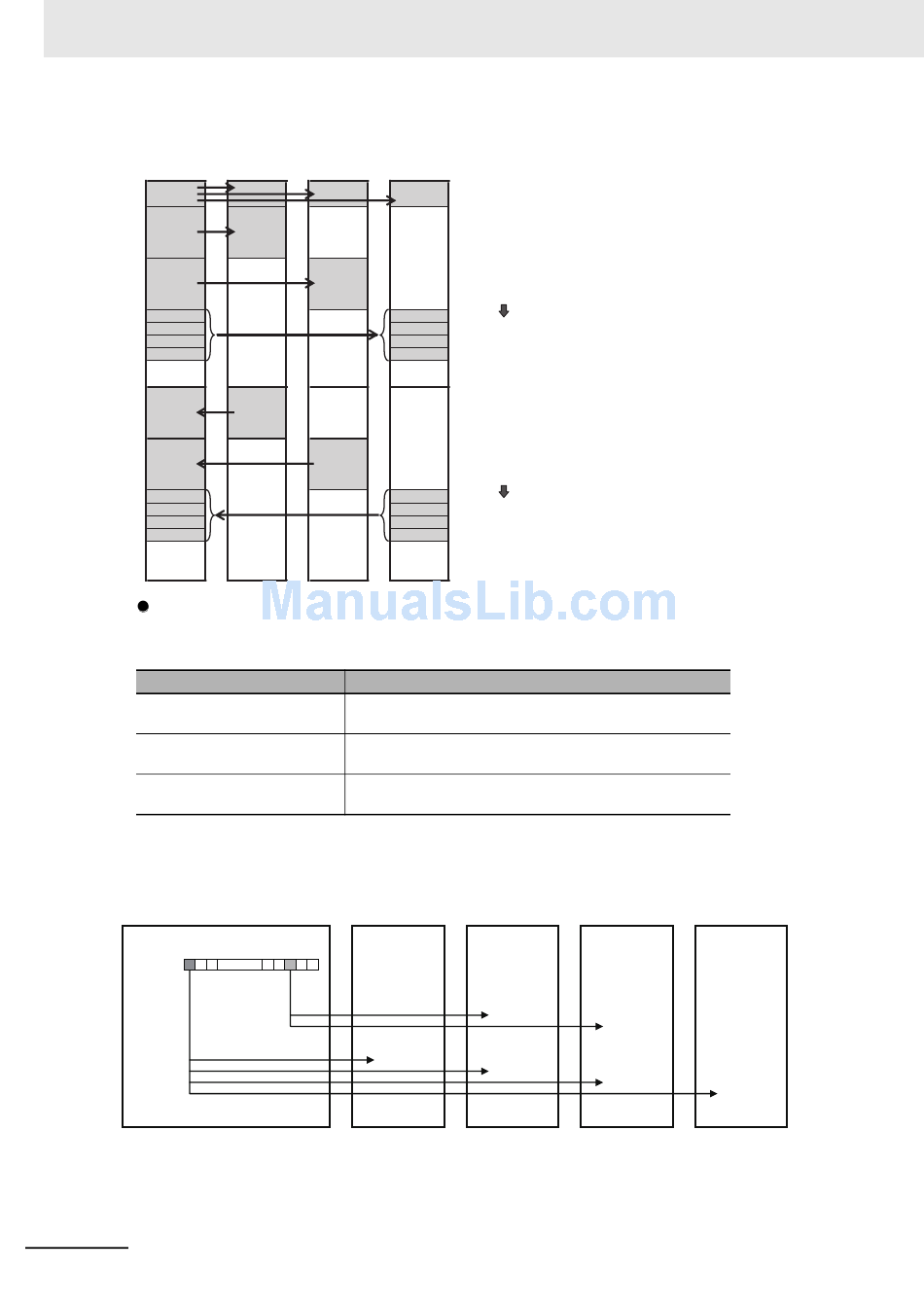

Setting Example
Synchronous
Unit 1
CPU Unit
CIO 1200
CIO 1202
CIO 1210
CIO 1218
CIO 1250
CIO 1258
CIO 1266
CIO 1295
Application Example
I/O data is used as described in the following table when using Position Control Units and High-
speed Counter Units and Synchronous Units.
Data
Words allocated to CPU Unit
Output data for synchronous
data refresh
Input data for synchronous data
refresh
* Synchronous Group Stop Command Bits and Synchronous Unit Stop Command Bit
Command bits can be used from the CPU Unit to stop the function that is currently being executed for Synchro-
nous Units that are performing synchronous unit operation. There are two command bits. The Synchronous Unit
Stop Command Bit applies to all Synchronous Units. The Synchronous Group Stop Command Bits apply to pre-
set groups of Synchronous Units.
CPU Unit
15
CIO 1200
Synchronous Group
Stop Command Bit
Synchronous Unit
Stop Command Bit
10-90
Synchronous Synchronous
Unit 2 Unit 3
Synchronous Group Stop Command Bits, Synchronous Unit
Stop Command Bit,* etc.
Target position data (X, Y, Z, and U axes)
Present feedback data (X, Y, Z, and U axes)
Synchronous
Unit 1
02 00
Synchronous
Group Stop
Selection:
bit 02 = OFF
Stop
command
(4) Output Data Assignments for Synchronous Units
(Setting the Destination of Output Data)
CIO 1218: Position Data for Synchronous Feed Command for Axis 1
CIO 1220: Position Data for Synchronous Feed Command for Axis 2
CIO 1222: Position Data for Synchronous Feed Command for Axis 3
CIO 1224: Position Data for Synchronous Feed Command for Axis 4
(5) Input Data Assignments for Synchronous Units
(Setting the Data To Be Input)
CIO 1266 to CIO 1267: Present Feedback Position for Axis 1
CIO 1268 to CIO 1269: Present Feedback Position for Axis 2
CIO 1270 to CIO 1271: Present Feedback Position for Axis 3
CIO 1272 to CIO 1273: Present Feedback Position for Axis 4
Application example
Synchronous
Synchronous
Unit 3
Unit 2
Synchronous
Synchronous
Group Stop
Group Stop
Selection:
Selection:
bit 02 = ON
bit 02 = ON
Stop command
Stop
command
Stop
Stop
command
command
CJ2 CPU Unit Software User's Manual
Synchronous
Unit 4
Synchronous
Group Stop
Selection:
bit 02 = OFF
Stop
command
