8 I/O Allocations and Unit Settings
I/O Allocation Method for Each Unit Classification
This section describes the I/O allocation method for each Unit classification (Basic I/O Units, Special
I/O Units, and CPU Bus Units).
I/O Allocation to Basic I/O Units
CJ-series Basic I/O Units are allocated words in the I/O Area (CIO 0000 to CIO 0159). They can be
connected to the CPU Rack or Expansion Racks. The following method is used.
Basic I/O Units in the CPU Rack
Basic I/O Units on the CPU Rack are allocated words from left to right starting with the Unit clos-
est to the CPU Unit. Each Unit is allocated as many words as it requires.
Note Units that have 1 to 16 I/O points are allocated16 bits and Units that have 17 to 32 I/O points are
allocated 32 bits.

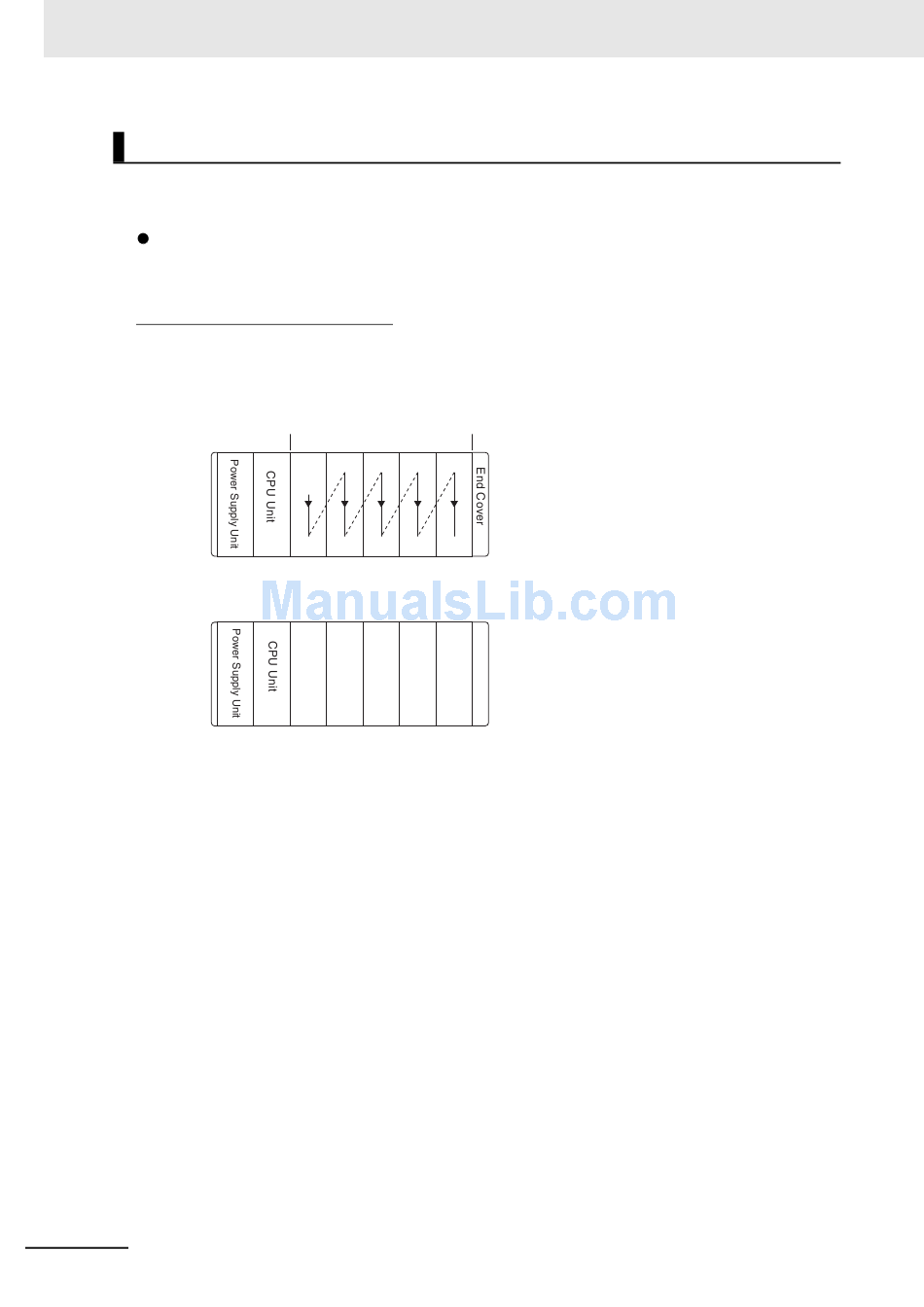

Example
From the left →
8-6
← →
Connected Units
CIO
0000
1 2 3 4 5
IN IN IN OUT OUT
16 pt 16 pt 32 pt 32 pt 64 pt
0002 0004 0006
0000 0001 0003 0005 to
0009
CPU Rack
CPU Rack
