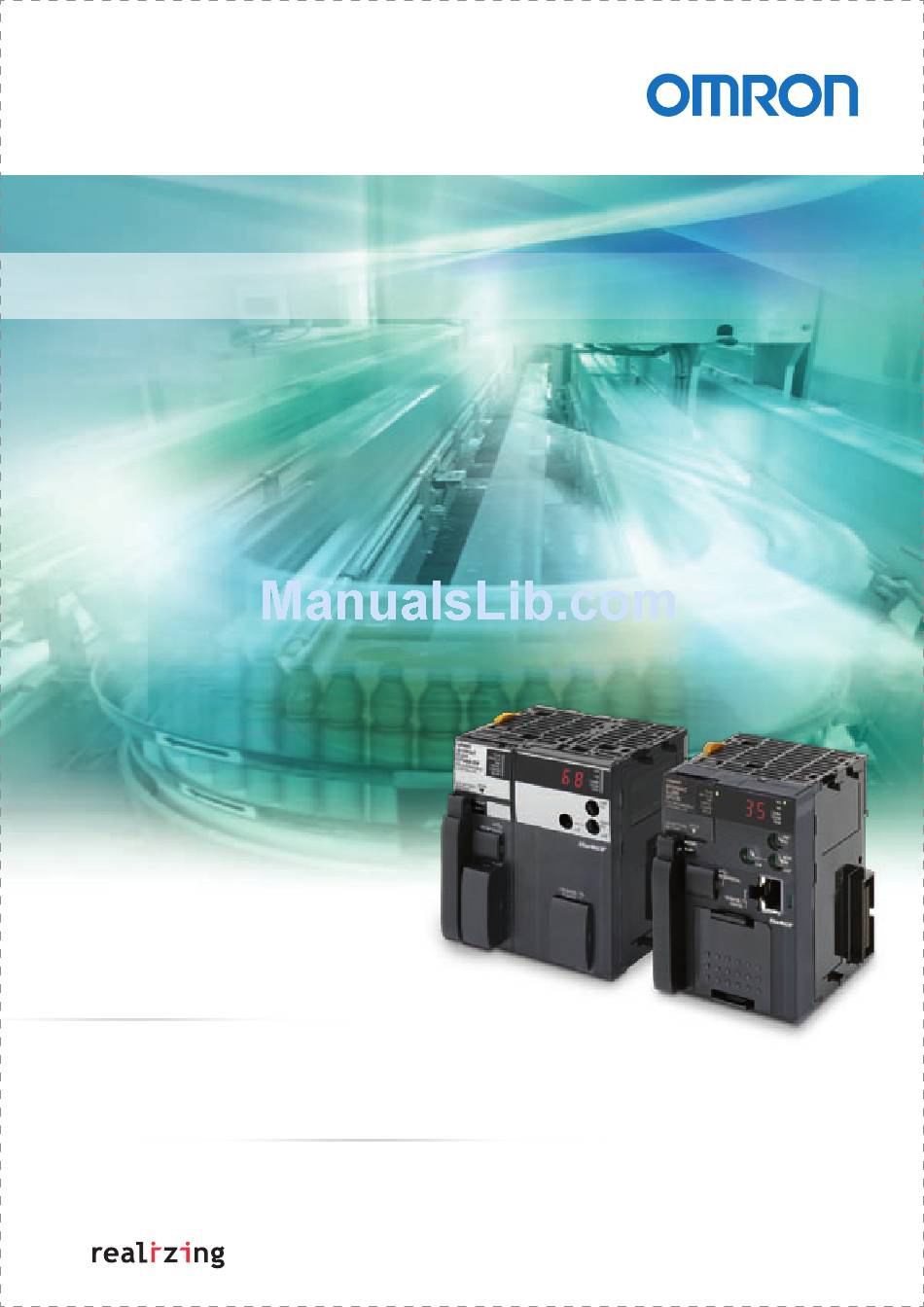

CJ2 FAMILY
N e w P L C s w i t h a p r o v e n t r a c k r e c o r d
» F l e x i b i l i t y i n c o m m u n i c a t i o n
» Fa s t e r m a c h i n e d e v e l o p m e n t
» I n n o v a t i o n t h r o u g h e v o l u t i o n

Advertisement

loading

Related Manuals for Omron CJ2

Summary of Contents for Omron CJ2

  • Page 1 CJ2 FAMILY N e w P L C s w i t h a p r o v e n t r a c k r e c o r d » F l e x i b i l i t y i n c o m m u n i c a t i o n »...
  • Page 2 EtherNet/IP Data Link function. Always accessible The standard USB and Ethernet ports give you instant The CJ2 is the result of years of experience as market access for programming, commissioning, maintenance and troubleshooting. leader in the field of modular controllers and represents a logical next step in controller design.
  • Page 3 The wide range of CPUs means you need only to get familiar with one PLC family for use in everything from simple stand-alone applications up to networked, high-speed machines. Inspired by proven technology Proven track record Faster development Talks to all...
  • Page 4 Faster production, better quality control and better traceability require more speed and more memory. That’s why the CJ2 Family offers a wide range of CPUs- to suit any task. From 5 Ksteps program capacity and 64 Kwords memory, right up to 400 Ksteps capacity and 832 Kwords.
  • Page 5 Simply connect the cable, with no settings required USB port (standard on all models) Commercially available USB cable A CJ2 CPU Unit on an EtherNet/IP network can be accessed via USB, with no need for routing tables EtherNet/IP CX-One (e.g., CX-Programmer)
  • Page 6 Up to two modules can be mounted per CPU, allowing direct control of four motion axes. Using dedicated instructions, these axes can be controlled directly by the PLC program, without communication delays.
  • Page 7 High data memory capacity of up to 832 Kwords Multi-functional Ethernet Port Of course you can also use the same Ethernet port with programming, CJ2’s built-in Ethernet port supports the EtherNet/IP protocol for fast monitoring, file transfers or message communications through tag-based data links.
  • Page 8 Modular PLC Model CJ2M-CPU11 CJ2M-CPU12 CJ2M-CPU13 CJ2M-CPU14 CJ2M-CPU15 CJ2M-CPU31 CJ2M-CPU32 CJ2M-CPU33 CJ2M-CPU34 CJ2M-CPU35 I/O Capacity/Mountable Units 2,560 Points/40 Units (3 Expansion Racks Max.) Program Capacity 5K steps 10K steps 20K steps 30K steps 60K steps 5K steps 10K steps 20K steps...
  • Page 9 Modular PLC Model CJ2H-CPU64 CJ2H-CPU65 CJ2H-CPU66 CJ2H-CPU67 CJ2H-CPU68 CJ2H-CPU64- CJ2H-CPU65- CJ2H-CPU66- CJ2H-CPU67- CJ2H-CPU68- I/O Capacity/Mountable Units 2,560 Points/40 Units (3 Expansion Racks Max.) Program Capacity 50K steps 100K steps 150K steps 250K steps 400K steps 50K steps 100K steps 150K steps...

  • Page 10: Specifications

    However, a maximum of two CJ1W-INT01 Interrupt Input Units can be mounted. Special I/O units Units for up to 96 unit numbers can be mounted. (Unit numbers run from 0 to 95. Units are allocated between 1 and 8 unit numbers.) CPU bus units CJ2H-CPU6_-EIP: 15 Units max.
  • Page 11 Index registers IR0 to IR15 These are special registers for storing PLC memory addresses for indirect addressing. (Index Registers can be set so that they are unique in each task or so that they are shared by all tasks.) Cyclic task flag area...
  • Page 12 A960 to A1471 and A10000 to A11535 cannot be accessed by CPU Bus Units, Special I/O Units, PTs, and Support Software that do not specifically support the CJ2 CPU Units. Bits in the EM Area can be addressed either by bit or by word. These bits cannot be addressed by CPU Bus Units, Special I/O Units, PTs, and Support Software that do not specifically support the CJ2 CPU Units.
  • Page 13 Improved debugging greater capacity Synchronous unit operation General-purpose networks for Built-in EtherNet/IP port Support Software interface (CJ2H-CPU6_-EIP) CJ2M CPU units Standard CPU Unit (CJ2M-CPU3_) Simple CPU Unit (CJ2M-CPU1_) Tag access Easier programming Easier programming Improved debugging Built-in EtherNet/IP port General-purpose...
  • Page 14 Modular PLC Dimensions CJ2M-CPU1_ 76.2 84.5 CJ2M-CPU3_ 76.2 84.5...
  • Page 15 Modular PLC CJ2H-CPU6_ 66.2 48.8 74.5 CJ2H-CPU6_-EIP 66.2 79.8 74.5...

  • Page 16: Ordering Information

    Fast and powerful CPUs for any task The comprehensive lineup of new CJ2 processors offer outstanding new features while evolving from the CJ1 series and its proven track record. The wide range of high performance CPU's allow scaleability and flexibility for any automation challenge. The new CJ2 CPU units offer increased capacity plus built-in USB and ethernet ports, yet are fully compatible with the extensive range of CJ1 I/O units.
  • Page 17 Depending on the CPU type, up to 3 expansions can be connected to the CPU 'rack', giving a total capacity of 40 I/O units. The total length of the expansion cables of one system may be up to 12 m.
  • Page 18 Replacement 18-point screw terminal blocks for I/O units, pack of 5 pcs. CJ-OD507-18P-5 I/O terminal block (40×M3 screw) for XW2Z-_ _ _ K MIL (40pt) XW2D-40G6 Connection cable between I/O terminal block and I/O unit ( _ _ _ = length in cm) MIL (40pt) XW2Z-_ _ _ K...
  • Page 19 From basic analogue I/O to advanced temperature control The CJ-series offers a wide choice of analogue input units, fit for any application, from low-speed, multi-channel temperature measurement to high-speed, high-accu- racy data acquisition. Analogue outputs can be used for accurate control or external indication.
  • Page 20 Accuracy for Voltage and Current Inputs/Outputs as percentage of full scale and typical value at 25°C ambient temperature (Consult the operation manual for details) Accuracy for Temperature Inputs/Outputs as percentage of process value and typical value at 25°C ambient temperature (Consult the operation manual for details) Note: All Analogue I/O units are designated as Special I/O units, except TS561/TS562, which are Basic I/O units (cannot be used with CP1H).
  • Page 21 Servo interface block for 2- or 4-Axis position control unit (with communications support) – XW2B-40J6-4A General purpose I/O connection cable for I/O units with 40-pt. Fujitsu connector ( _ _ _ = length in cm) Fujitsu (40 pt.) to XW2Z-_ _ _ B MIL (40 pt.)
  • Page 22 Fully user-configurable serial and CAN-based communication can be used to emulate a variety of application-specific protocols. EtherNet/IP units provide data link functions to share large amounts of data between PLCs. The new PROFINET- IO controller together with the SmartSlice modular I/O system offers ethernet-based I/O with controller- and network redundancy.
