Operation
5.
Operation
5.1
Starting Up
Connect the the display/output devices through the signal output socket, see
power supply and switching on the power supply.
i
Allow the measuring system to warm up before the first measurement or calibration for approximately 15 min.
5.2

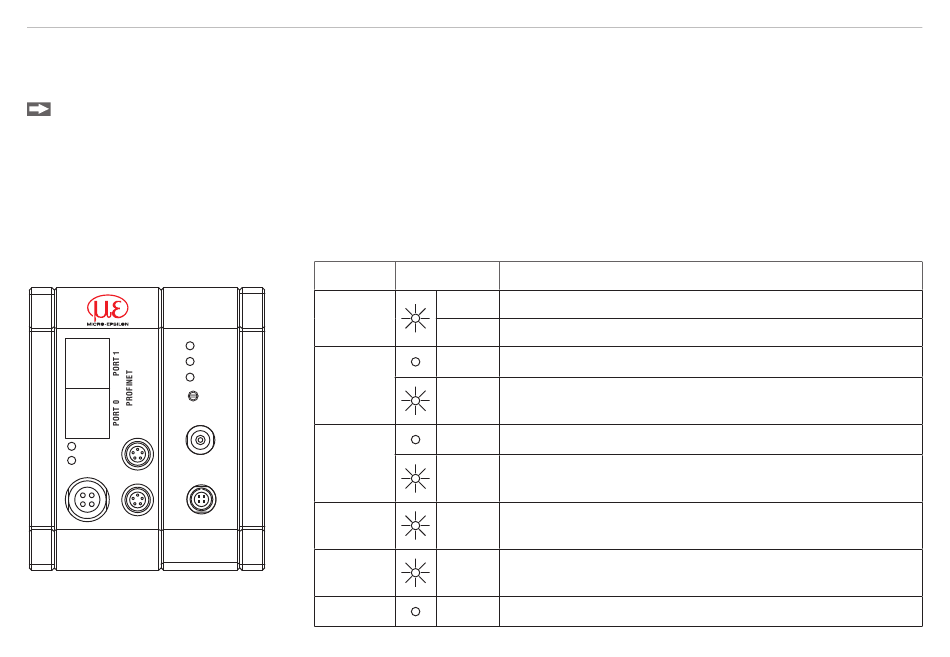

Operating or Display Elements
5.2.1
LED's
Range
LP Filter
Zero
Zero
SENSOR/CP
SYNC
IN
BF
SF
POWER/TRIG.
OUT
SIGNAL OUT
1) LP Filter only switchable via Ethernet.
capaNCDT 6240
Kommentar:
„Range, LP Filter weg --> sind bei Kompaktsystem nicht verbaut"
LED's gibt es laut Foto doch.
LED
Color
green
Range
red
off
LP Filter
1
red
off
Zero
red
BF
red
SF
red
BF, SF
Chap. 4.7,
before connecting the device to the
Function
Target in measuring range
Measuring range exceeded
Standard bandwidth active
20 Hz Low-pass filter on the analog outputs enabled
Zero poti in basic position (right stop)
Zero poti adjusted
Bus failure
System failure
No failure
