Appendix| Measurements on Balls and Shafts
A 6 Measurements on Balls and Shafts
16.0%
Ball-Ø30 mm CS1
14.0%
12.0%
Ball-Ø40 mm CS1
10.0%
8.0%
6.0%
4.0%
2.0%
0.0%
10 % 20 % 30 % 40 % 50 %
Target distance (inner width), [% of MR]

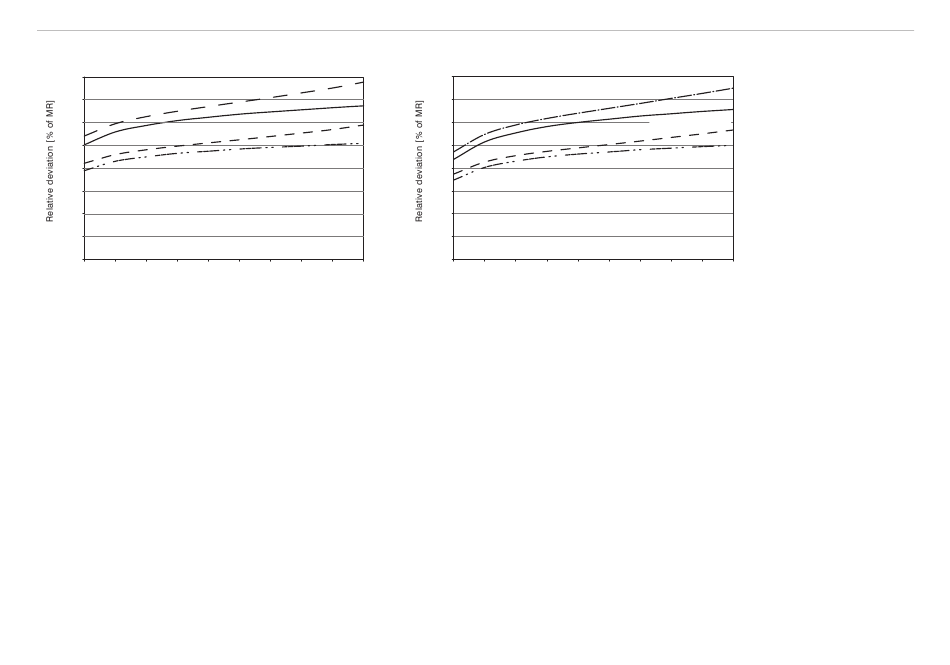

Fig. 35 Measuring value deviation in the case of
measurement on ball-shaped targets
i
Figures give an influence example shown on the sensors CS02 and CS1 in the case of different sensor distances to the target as
well as target diameters. As this results from internal simulations and calculations, please request for detailed information.
capaNCDT 6240
Ball-Ø30 mm CS02
Ball-Ø40 mm CS02
60 % 70 % 80 % 90 % 100 %
8,0%
7.0%
Cylinder Ø30 mm CS1
6.0%
Cylinder Ø40 mm CS1
5.0%
4.0%
3.0%
2.0%
1.0%
0.0%
10 % 20 % 30 % 40 % 50 %
Target distance (inner width), [% of MR]
Fig. 36 Measuring value deviation in the case of
measurement on cylindrical targets
Cylinder Ø30 mm CS02
Cylinder Ø40 mm CS02
60 % 70 % 80 % 90 % 100 %
