Installation and Assembly

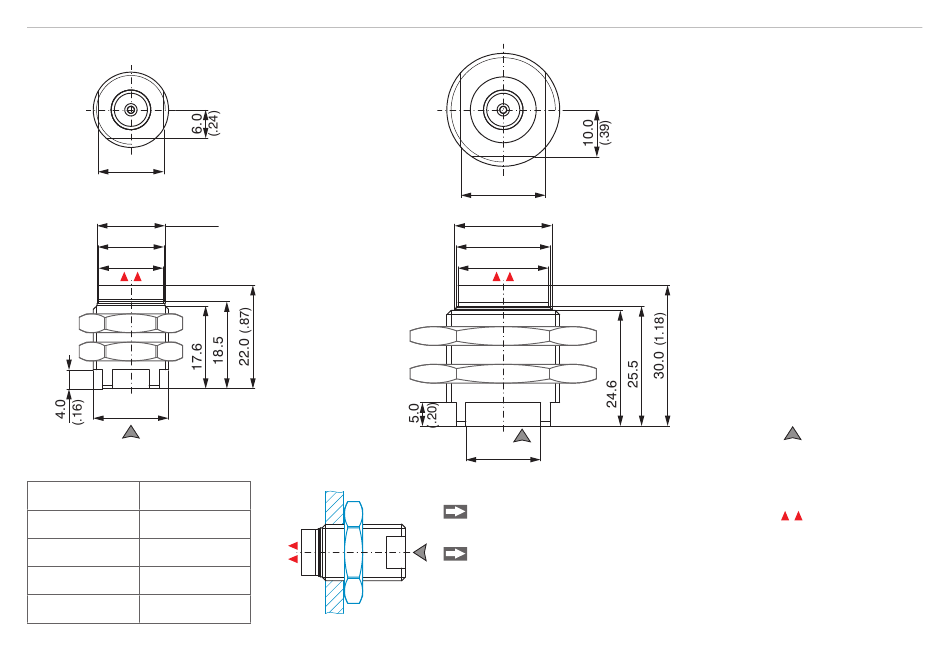

CSE2/M16
WS14
ø14.4
(.57 dia.)
ø14.0
ø13.7
M16x1
Sensor Torque
CSE05/M8 2.5 Nm max.
CSE1,5/M12 10 Nm max.
CSE2/M16 20 Nm max.
CSE3/M24 70 Nm max.
capaNCDT 6240
CSE3/M24
WS18
ø20.6
(.81 dia.)
ø20.0
ø19.2
M24x1.5
Preferred mounting:
Screw the sensor into the sen-
sor holder.
Turn the mounting nut on. Do
not exceed torques.
Connector side
Dimensions in mm
(inches)
Active measuring
surface sensor
Dimensional drawings
of other sensors are
available on request.
