Appendix| Integration Into TIA Portal

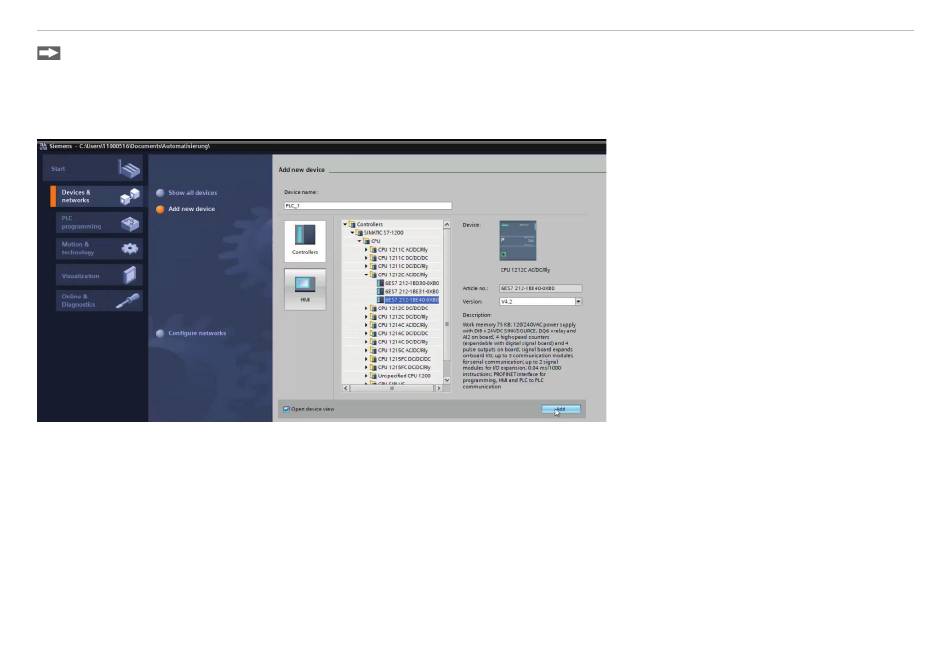

Click Add new device. Select the S7 CPU series you are using in the device list and click the Add button. Make sure that the
checkbox Open device view on the bottom left of the window is activated.
i
Identify your CPU module based on the order number on the S7 device, its packaging, or the delivery note. Also select the cor-
rect firmware Version.
The software switches automatically to the Project view and displays the Working window (center of screen) in the Device
view. Below, you can find the Inspector window which shows the parameterization options of the selected PLC in the Proper-
ties register.
i
The TIA Portal automatically assigns the IP address and subnet mask. You can manually adjust these data here (General >
PROFINET interface > Ethernet addresses) if necessary and save them by clicking the Save project button, see
top left corner in the Toolbar.
