Installation and Assembly
4.6

Ground Connection, Earthing

Make sure you have a sufficient grounding of the measuring object, for example connect it with the sensor or the supply ground.
Non-contact target earthing
In several applications, the target earthing is difficult or even impossible.
Different to other systems, with capaNCDT systems is no target earthing necessary

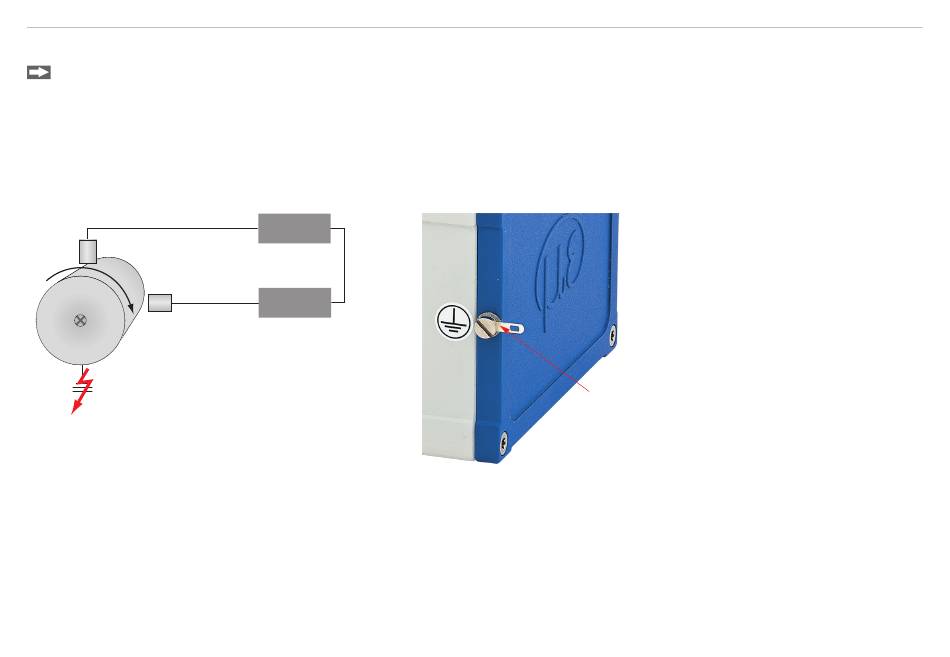

The drawing below shows two synchronized capaNCDT sensors, measuring against a mill. Due to the unique synchronizing tech-
nique of MICRO-EPSILON a special target earthing is not needed in most cases.
Sensor
Sensor
Fig. 13 Position and unbalance measuring with two
measuring systems
No target grounding required with two synchronized capaNCDT sensors.
If necessary use the ground connection on the housing cover.
capaNCDT 6240
Controller
sync.
Controller
Fig. 14 Ground connection on the housing cover
Ground connection
Page 39
