Installation and Assembly

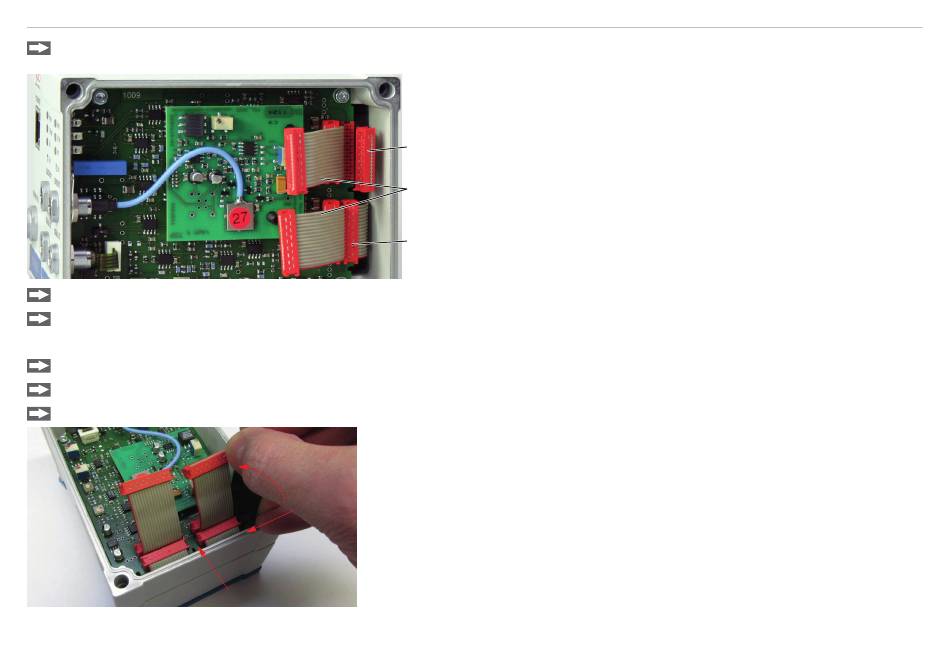

Connect both flat flexible cables (5) of the preceding demodulator module with the new demodulator module (6).
Put on the right housing cover (3).
Screw the sleeve nuts (4b) on the threaded rods on the right side of the controller and tighten the sleeve nuts.
The wiring to the preceding demodulator module (5) can be solved using the supplied plugging off assistance as follows:
1. Press the plugging off assistance with the recess laterally to the connector (5).
2. Loosen the connector with a lever movement.
3. Loosen the other side of the connector in the same way.
Fig. 12 Use of the plugging off assistance for the wiring of the demodulator elements
capaNCDT 6240
2.
1.
3.
5 Wiring preceding demodulator module
6 Wiring following demodulator module
5
6
5
Fig. 11 Wiring demodulator modules
