Initial Operation
6.3

Data Format

All configuration parameters and data are transmitted in Little Endian format.

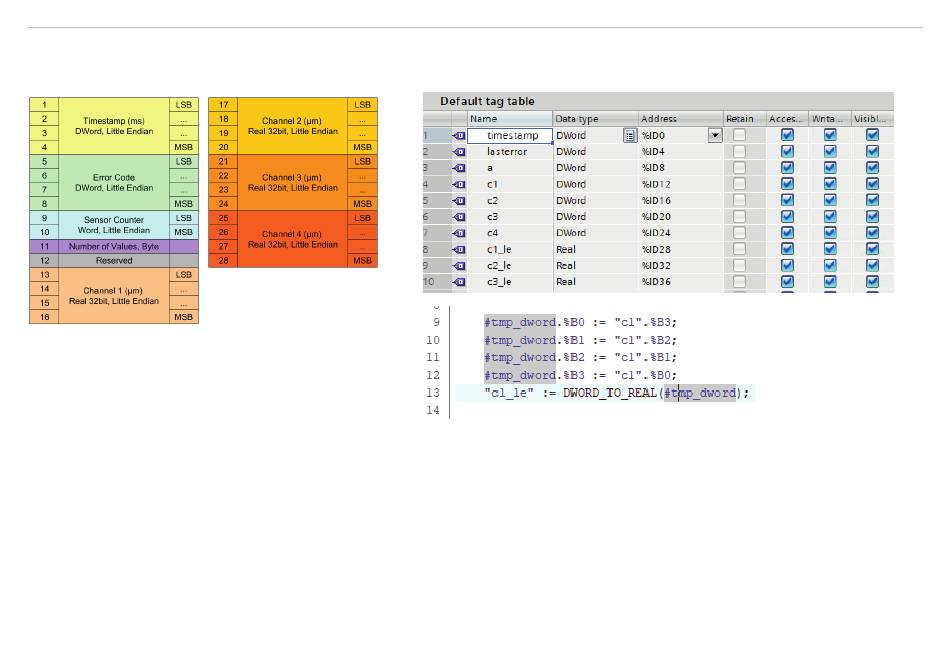

Fig. 24 Data format and conversion of a DWORD to REAL
The IO-Area contains the data as shown see
Timestamp Milliseconds passed since device power up
Error Code Status code of the communication module
Sensor Counter Sequential number of currently transmitted sample
Number of Values Sensor values collected since last communication cycle
Reserved Reserved
Channel 1 Distance in µm calculated based on channel measurement range and offset
....
capaNCDT 6240
Fig. 24:
