Appendix| Integration Into TIA Portal
A 3.2 Unique integration of capaNCDT 6240 into the PROFINET network

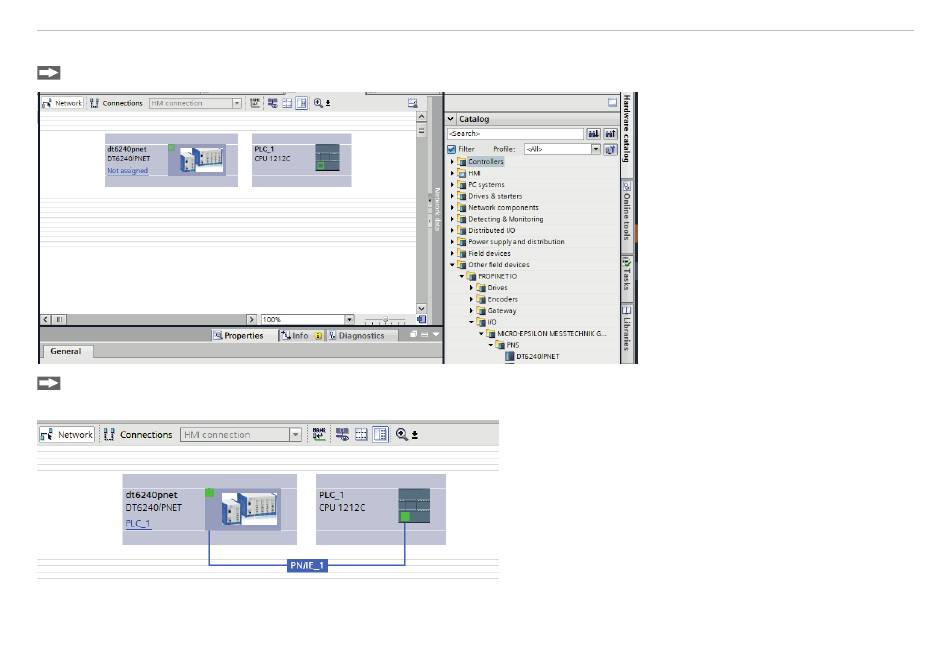

Switch to the Network view of the Working window and add DT6240/PNET from the Hardware catalog by drag and drop.
Connect the Port 0 LAN socket of capaNCDT 6240 with the one of the PLC by clicking one of the green boxes with the left
mouse button. Hold the button and draw the resulting line to the other green box in order to create a PROFINET subsystem.
