Sequence When Writing and Reading Acyclical Data

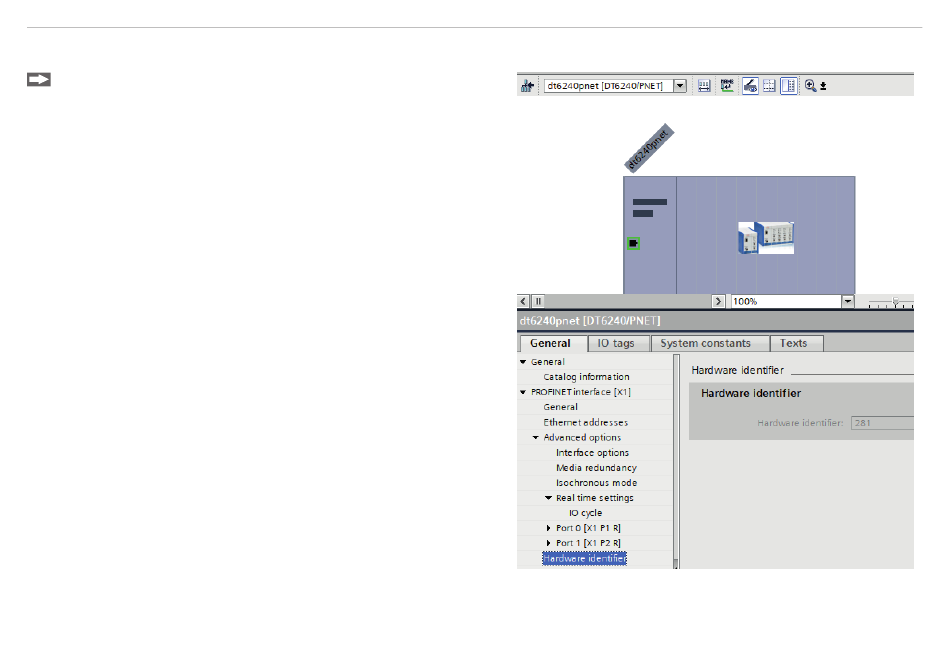

Determine the hardware identification (ID) of the module. To do
so, switch to the General > PROFINET-Interface > Ad-
vanced Options tab.
In the example to the right, you get the value 281.
On the SPS, WRREC_DB with input parameters (:=) is called.
REQ // Start execution
ID // Hardware ID of the target device addressed
INDEX // Target address in the object directory
LEN // Length of the binary data block to be written
RECORD // Usable data for writing
RECORD, VALID, BUSY, ERROR, STATUS and LEN contain
return parameters (=>) that allow for determining the success or
progress of the write command.
