Structure

The non-contact, multi-channel measuring system, installed in an aluminum housing, consists of:
- A basic module DT6240
- A demodulator module DL6220 or DL6230, each with integrated preamplifier per sensor
- Sensor, sensor cable
- Power supply cable
- Ethernet cable
- Signal output cable
The modular assembly allows to join up to 4 channels (module system).
Trigger
Micro controller
Sync out
Oscillator
Sync in
Voltage
12 ... 36 V
conditioning
DT 6240

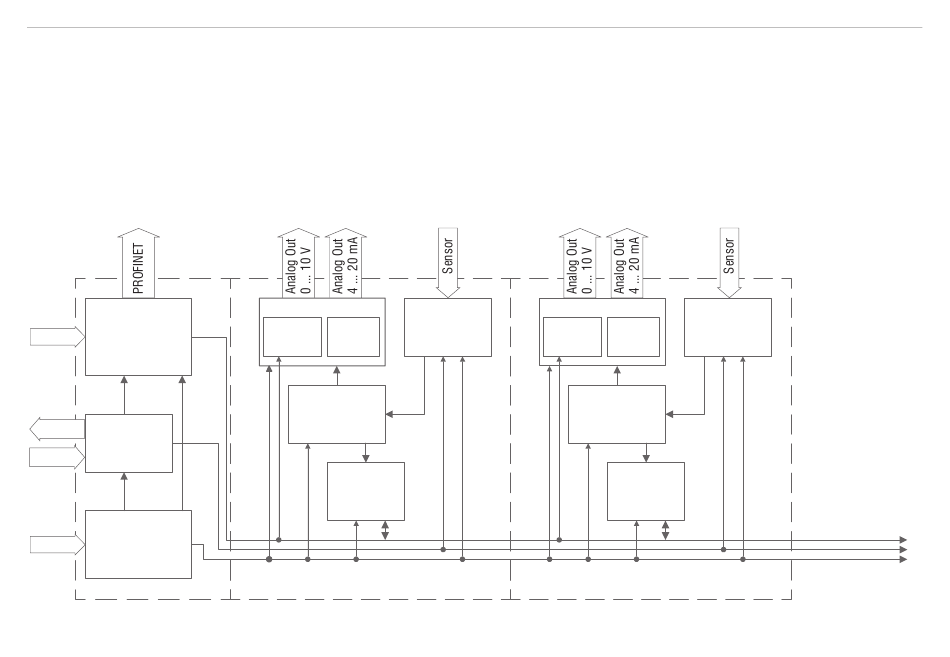

Fig. 2 Block diagram capaNCDT 6240
capaNCDT 6240
Output circuit
Zero point
Analog filter
Preamplifier
digital
adjustable
switchable
poti
Demodulator
A/D
converter
DL 6220
Output circuit
Zero point
Analog filter
Preamplifier
digital adjustable
switchable
poti
Demodulator
A/D
converter
DL 6230
