Sequence When Writing Structured Data - MICRO-EPSILON capaNCDT 6240 Operating Instructions Manual

Initial Operation
6.6

Sequence When Writing Structured Data

WRREC_DB
REQ := 1 0
ID := 273
INDEX := 0x2530
LEN := 15
8Byte + Data Length
RECORD :=
DONE =>
BUSY =>
Status/Result Output
ERROR =>
STATUS =>

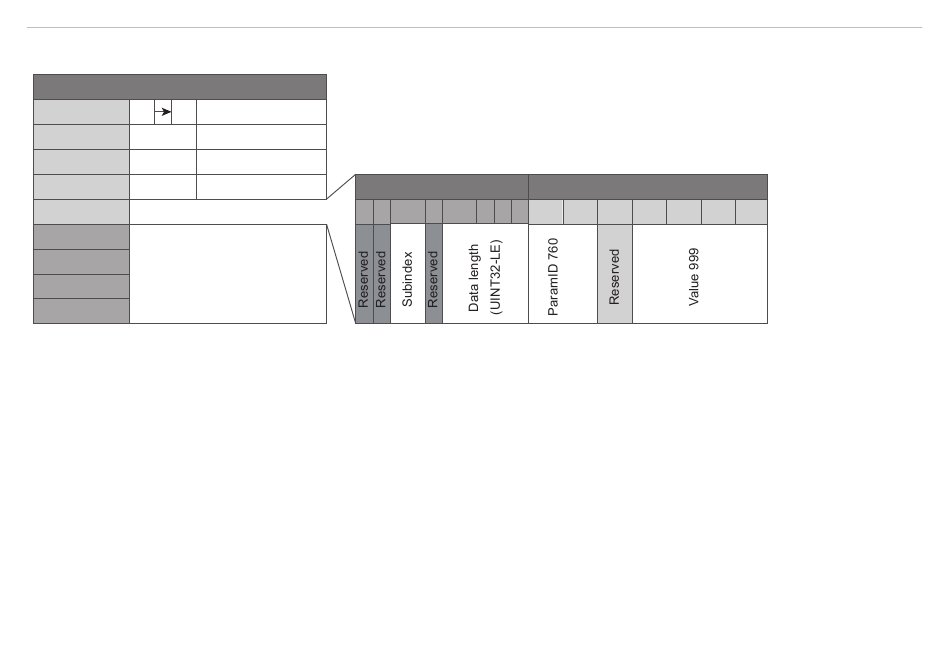

Fig. 25 Write command with data from SPS to capaNCDT 6240
capaNCDT 6240
Enable-Flag
HW-ID
Objekt Index
Write-Header (8 Byte)
0 0 0x01 0 0x07
PARAMID: 760, VALUE: 999
0 0 0
0xF8 0x02 0x00 0xE7 0x03 0x00 0x00
