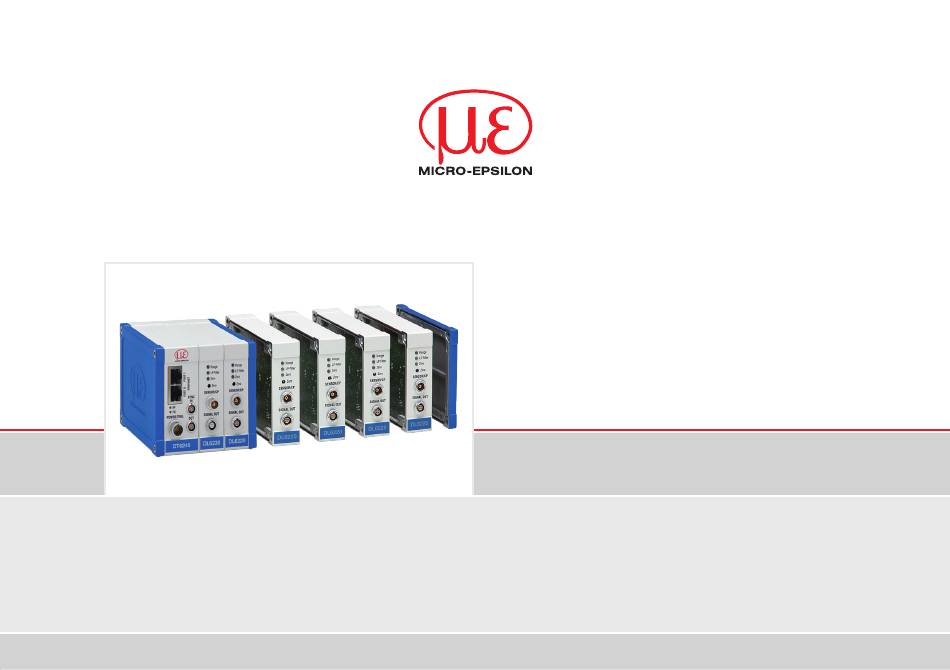

  • Page 1 Operating Instructions capaNCDT 6240 PROFINET...
  • Page 2 Non-contact Capacitive Displacement Measuring MICRO-EPSILON MESSTECHNIK GmbH & Co. KG Koenigbacher Str. 15 94496 Ortenburg / Germany Tel. +49 (0) 8542 / 168-0 Fax +49 (0) 8542 / 168-90 e-mail info@micro-epsilon.com www.micro-epsilon.com...

  • Page 3: Table Of Contents

    Flat Sensors ..........................22 4.2.4 Dimensional Drawings Sensors ....................23 Sensor Cable ..............................31 Controller ............................... 34 4.4.1 Basic Module, Demodulator Module ................... 34 4.4.2 Housing Cover ..........................36 Insert Demodulator Module ........................... 37 Ground Connection, Earthing ........................39 capaNCDT 6240...
  • Page 4 Sample Time ..........................59 6.4.8 Device Info ............................ 60 6.4.9 Sensor Information ........................61 6.4.10 Parameter Info ..........................62 6.4.11 Float Parameter ..........................62 6.4.12 Integer Parameter ......................... 63 6.4.13 Unsigned Integer Parameter ......................64 6.4.14 String Parameter ........................... 64 capaNCDT 6240...
  • Page 5 Integration Into TIA Portal ...................... 75 A 3.1 Importing capaNCDT 6240 into the software ....................75 A 3.2 Unique integration of capaNCDT 6240 into the PROFINET network ............79 A 3.3 Loading the configuration into the PLC ......................83 A 3.4 Accessing input and output data ........................
  • Page 6 6240...

  • Page 7: Safety

    > Risk of injury > Static discharge Connect the power supply and the display/output device according to the safety regulations for electrical equipment. > Risk of injury > Damage to or destruction of the sensor and/or controller capaNCDT 6240 Page 7...

  • Page 8: Notes On Ce Marking

    The EU Declaration of Conformity and the technical documentation are available to the responsible authorities according to the EU Directives. Intended Use - The capaNCDT 6240 measuring system is designed for use in industrial and laboratory applications. It is used for ƒ displacement, distance, thickness and movement measurement ƒ position measuring of parts or machine components - The system must only be operated within the limits specified in the technical data.

  • Page 9: Proper Environment

    - The space between the sensor surface and the target must have an unvarying dielectric constant. - The space between the sensor surface and the target may not be contaminated (for example water, rubbed-off parts, dust, etc.) capaNCDT 6240 Page 9...

  • Page 10: Functional Principle, Technical Data

    Measuring electrode (metals) without any additional electronic linearization. Slight changes in the conductivity or magnetic proper- ties do not affect the sensitivity or linearity. Electrical conductor Fig. 1 Functional principle of the guard ring capacitor capaNCDT 6240 Page 10...

  • Page 11: Structure

    Micro controller switchable switchable poti poti Demodulator Demodulator Sync out Oscillator Sync in converter converter Voltage 12 ... 36 V conditioning DT 6240 DL 6220 DL 6230 Fig. 2 Block diagram capaNCDT 6240 capaNCDT 6240 Page 11...

  • Page 12: Sensors

    CSE1,25/M12 1.25 mm 10 mm CSG0.50 0.5 mm approx. 7 x 8 mm CSH1 1 mm 11 mm CSG1.00 1.00 mm approx. 8 x 9 mm CSH1FL 1 mm 11 mm CS1HP 1 mm 9 mm capaNCDT 6240 Page 12...

  • Page 13: Sensor Cable

    The sensors of type CSH have integrated a 1.4 long sensor cable. Cable lengths of 2.8 m are available too if required. Other cable lengths are also available on request. The sensor model CSE1 (measuring range 1 mm) has the connector type C. capaNCDT 6240 Page 13...

  • Page 14: Controller

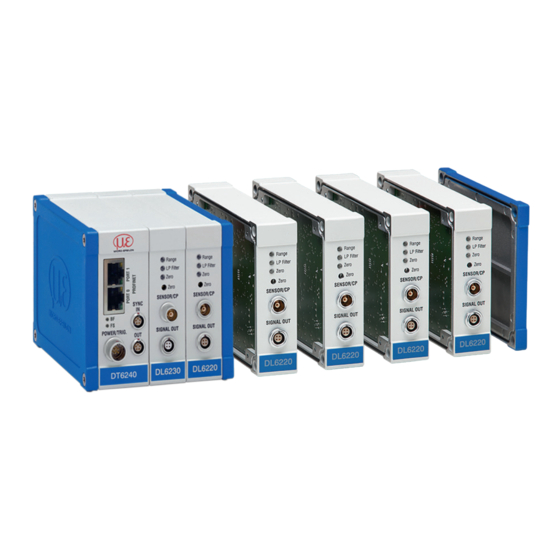

    Functional Principle, Technical Data 2.2.3 Controller The capaNCDT 6240 Multi-channel measuring system consists of a basic module DT6240 and one up to four demodulator modules DL62xx, according to requirements. The components are stored in aluminum housings. Basic module Demodulator module(s) Fig.
  • Page 15 Fig. 3. The output voltage can reach a maximum value of 15 VDC if the sensor is unplugged or if the measuring range is exceeded. Observe possible restrictions for the evaluation or display units to be connected. capaNCDT 6240 Page 15...

  • Page 16: Technical Data

    0.75 mm / 10 … 500 Hz in 3 axis, 2 directions and 10 cycles each Vibration (DIN-EN 60068-2-6) 2 g / 10 … 500 Hz in 3 axis, 2 directions and 10 cycles each Protection class (DIN-EN 60529) IP40 capaNCDT 6240 Page 16...

  • Page 17: Options

    Special tuning for 3 times sensor cable 2982047 ECL3 DL6220 • • length ○ ○ ○ 2982048 EMR2 DL6220 Extended measuring range (factor: 2) • ○ ○ ○ 2982049 RMR1/2 DL6220 Shortened measuring range (factor: 1/2) • capaNCDT 6240 Page 17...
  • Page 18 ○ ○ 2982052 EMR3 DL6230 Extended measuring range (factor: 3) • ○ ○ ○ 2982053 RMR1/2 DL6230 Shortened measuring range (factor: 1/2) • • Articles already contain the option ○ Option available - No option available capaNCDT 6240 Page 18...

  • Page 19: Delivery

    Check for completeness and shipping damages immediately after unpacking. If there is damage or parts are missing, immediately contact the manufacturer or supplier. Download GSDML file <GSDML-V2.42-MICRO-EPSILON-DT6x40PNET-202x.xml> is available at https://www.micro-epsilon.com/service/down- load/ TIA function components for easier configuration, available at https://www.micro-epsilon.com/service/download/...

  • Page 20: Storage

    CCmx CCgx/90 CCmx/90 -50 … +80 °C -50 … +200 °C (-58 to +176 °F) (-58 to +392 °F) Controller -10 ... +75 °C (+14 to +167 °F) - Humidity: 5 - 95 % RH (non-condensing) capaNCDT 6240 Page 20...

  • Page 21: Installation And Assembly

    This simple type of fixture is only recommended for a force and vibration-free installation position. The grub screw must be made of plastic so that it cannot damage or deform the sensor housing. Grub screw Fig. 4 Radial point clamping with grub screw Do not use metal grub screws! Danger of damaging the sensor capaNCDT 6240 Page 21...

  • Page 22: Circumferential Clamping, Cylindric Sensors

    Flat sensors are mounted by means of a tap hole for M2 (in case of sensors 0.2 and 0.5 mm) or by a through hole for M2 screws. The sensors can be bolted on top or below. Screwing from above Screwing from bottom capaNCDT 6240 Page 22...

  • Page 23: Dimensional Drawings Sensors

    ø20h7 (.79 dia.) ø10h7 (.394 dia) ø7.7 (0.30 dia.) ø10h7 (.394 dia.) Connector side Dimensions in mm (inches) Circumferential clamping possible from 3 mm behind the front face. Dimensional drawings of other sensors are available on request. capaNCDT 6240 Page 23...
  • Page 24 ø40h7 (1.58 dia.) ø20h7 (.79 dia.) ø20h7 (.79 dia.) ø20h7 (.79 dia.) Connector side Dimensions in mm (inches) Circumferential clamping possible from 3 mm behind the front face. Dimensional drawings of other sensors are available on request. capaNCDT 6240 Page 24...
  • Page 25 Installation and Assembly CSH02-CAmx, CSH1-CAmx, appr. 9.4 (.37) appr. 9.4 (.37) CSH05-CAmx CSH1.2-CAmx ø12g6 (.473 dia.) ø8g6 (.315 dia.) ø7.5 ø11.5 (.30 dia.) (.45 dia.) ø2.2 (.09 dia.) ø2.2 (.09 dia.) Dimensions in mm (inches), not to scale capaNCDT 6240 Page 25...
  • Page 26 Installation and Assembly Cylindric sensors CSH2-CAmx appr. 9.4 (.37) ø20g6 (.79) ø19.5 (.77) ø2.2 (.09) Dimensions in mm (inches), not to scale capaNCDT 6240 Page 26...
  • Page 27 Cylindrical sensors with thread CSE05/M8 CSE1,25/M12 ø10.4 (.41 dia.) ø6.0 ø10 (.24 dia.) ø5.7 ø9.7 M8x0.5 M12x1 Connector side Dimensions in mm (inches) Active measuring surface sensor Dimensional drawings of other sensors are available on request. capaNCDT 6240 Page 27...
  • Page 28 2.5 Nm max. sor holder. surface sensor CSE1,5/M12 10 Nm max. Turn the mounting nut on. Do Dimensional drawings not exceed torques. CSE2/M16 20 Nm max. of other sensors are available on request. CSE3/M24 70 Nm max. capaNCDT 6240 Page 28...
  • Page 29 9.4 appr. 9.4 CSH02FL-CRmx, CSH1FL-CRmx, 4 (.16) CSH05FL-CRmx CSH1.2FL-CRmx (.37) (.37) 4 (.16) (.003) (.24) 0.1 (.003) (.22) ø3 ø3 (.29) (.12 dia.) (.12 dia.) ø2.2 ø2.2 (.09) (.09) Dimensions in mm (inches), not to scale capaNCDT 6240 Page 29...
  • Page 30 9.4 15.5 (.06) (.61) (.79) (.09) (.37) appr. 9.4 (.37) (.003) (.003) ø3 (.12) ø3 (.12) ø2.2 (.09) ø2.2 (.09) Cable length 1.4 m visible (incl. crimp sleeve) Dimensions in mm (inches), not to scale capaNCDT 6240 Page 30...

  • Page 31: Sensor Cable

    The sensor is connected to the controller by the sensor cable. The connection is made by simple plugging. The connector locks auto- matically. The tight fit can be checked by pulling the connector housing (cable bushing). The lock can be released and the connector can be opened by pulling the knurled housing sleeve of the cable bushing. capaNCDT 6240 Page 31...
  • Page 32 3.1 mm • 0.05 - 0.8 mm 10 mm 22 mm (once) (permanently) CCgxB 2/4 or 6 m 3.1 mm • 1 ... 10 mm CCgxB/90 2/4 or 6 m 3.1 mm • 1 ... 10 mm capaNCDT 6240 Page 32...
  • Page 33 2.1 mm • 0.05 - 0.8 mm 7 mm 15 mm (once) (permanently) CCmxB 1.4/2.8 or 4.2 m 2.1 mm • 1 ... 10 mm CCmxB/90 1.4/2.8 or 4.2 m 2.1 mm • 1 ... 10 mm capaNCDT 6240 Page 33...

  • Page 34: Controller

    Dimensions in mm (inches rounded off) The controller is mounted using mounting plates or retaining clips for a DIN rail mounting, which are included in an optional conversion kit. Fig. 6 Dimensional drawing basic module and demodulator capaNCDT 6240 Page 34...
  • Page 35 SYNC SYNC POWER/TRIG. POWER/TRIG. SIGNAL OUT SIGNAL OUT SIGNAL OUT SIGNAL OUT SIGNAL OUT SIGNAL OUT SIGNAL OUT Fig. 8 Dimensional drawing of controller with three or four demodulator modules Dimensions in mm (inches rounded off) capaNCDT 6240 Page 35...

  • Page 36: Housing Cover

    DIN-rail 8 (.31) 5 (.20) 4 (.16) 125 (4.92) Fig. 9 Dimensional drawing housing cover Dimensions in mm (inches rounded off) The controller is mounted using mounting plates or holding clamps for a mounting on DIN-rail. capaNCDT 6240 Page 36...

  • Page 37: Insert Demodulator Module

    Touch the demodulator modules only at the housing, not at the electronics. This will prevent electrostatic discharges on the electronics. Attach the additional demodulator module. Number demodulator modules Length threaded rod M4 59 mm 84 mm 109 mm 134 mm Fig. 10 Mechanical components controller capaNCDT 6240 Page 37...
  • Page 38 Press the plugging off assistance with the recess laterally to the connector (5). Loosen the connector with a lever movement. Loosen the other side of the connector in the same way. Fig. 12 Use of the plugging off assistance for the wiring of the demodulator elements capaNCDT 6240 Page 38...

  • Page 39: Ground Connection, Earthing

    Different to other systems, with capaNCDT systems is no target earthing necessary The drawing below shows two synchronized capaNCDT sensors, measuring against a mill. Due to the unique synchronizing tech- nique of MICRO-EPSILON a special target earthing is not needed in most cases. Sensor Controller sync.

  • Page 40: Electrical Connections

    4.7.1 Connectivity Options The power supply and the signal output are located at the front side of the controller. Controller LAN cable E th RJ-45-connectors CCxxx PS 2020 Ammeter/ Sensor Voltmeter Fig. 15 Measuring system assembly capaNCDT 6240 Page 40...

  • Page 41: Pin Assignment Supply, Trigger

    Analog grounds are connected internally. SCACx/4 is a View on solder pin Signal output on 3 m (13.12 ft) long, 4-wire output cable. It is supplied as an side, 4-pole male controller, 4-pole male optional accessory. cable connector cable connector capaNCDT 6240 Page 41...

  • Page 42: Pin Assignment Synchronization

    5-pin ODU male cable connector 5-pin female cable connector Several measuring systems series capaNCDT 6240 can simultaneously be used as multi-channel system. With the synchronization of the systems, a mutual influence of the sensors is avoided. Plug the synchronization cable SC6000-x, see Chap.
  • Page 43 Installation and Assembly SC6000-x Controller 2 Controller 1 Fig. 16 Synchronization of a second controller capaNCDT 6240 Page 43...

  • Page 44: Fieldbus Cabling

    Redundancy Protocol) between the output port of the last slave device and channel 1 of the IO controller. The DT6240 can participate in an MRP ring as a client; however, it cannot manage the ring. To achieve ring functionality, all participants must be configured as ring participants. capaNCDT 6240 Page 44...

  • Page 45: Operation

    20 Hz Low-pass filter on the analog outputs enabled SENSOR/CP SYNC Zero poti in basic position (right stop) Zero POWER/TRIG. Zero poti adjusted SIGNAL OUT Bus failure System failure 1) LP Filter only switchable via Ethernet. BF, SF No failure capaNCDT 6240 Page 45...

  • Page 46: Poti

    Signal Signal 10 V 20 mA Range LP Filter Zero Zero SENSOR/CP Displacement Displacement 4 mA 100 % 100 % SIGNAL OUT Zero Zero DL62xx -10 V -12 mA Fig. 18 Zero point shifting with zero-poti capaNCDT 6240 Page 46...

  • Page 47: Triggering

    Operation Triggering The measuring value output on capaNCDT 6240 is controllable by an external electrical trigger signal. Here, only the digital output is affected. Triggering release by: Controller Trigger in - Trigger input (pin 3 and pin 4 on 4-pole power supply...
  • Page 48 Another rising edge stops the measuring value output respec- tively switches it on again. Fig. 22 Rising edge trigger (U ), relevant digital signal (D No trigger is set ex factory. The controller starts the data transfer immediately after the switching on. capaNCDT 6240 Page 48...

  • Page 49: Measurement Averaging

    = Continuous index = Average value Fig. 23 Formula for the moving average Method Each new measured value is added, and the first (oldest) value is removed from the averaging. Example with N = 7: capaNCDT 6240 Page 49...

  • Page 50: Arithmetic Average Value

    Then, the average value is provided as the median value. If a even value is selected for the average number N, middle both measuring values are added and divided by two. Example with N = 7: Sorted measuring value Median Sorted measuring value Median capaNCDT 6240 Page 50...

  • Page 51: Dynamic Noise Rejection

    For that purpose the signal noise is calculated dynamically and measurement changes are only transferred, if they exceed this calcu- lated noise. Thereby at a change in direction of the measurement signal small hysteresis effects in the size of the calculated noise can occur. capaNCDT 6240 Page 51...

  • Page 52: Initial Operation

    Initial Operation Initial Operation General This section describes how to use a SIMATIC S7 controller with Micro-Epsilon sensors (controller). Basic Settings Module the Input_1 module offers an easy way to specify the required settings. After setting up the DT6240 in the TIA portal, see Chap.

  • Page 53: Data Format

    Status code of the communication module Sensor Counter Sequential number of currently transmitted sample Number of Values Sensor values collected since last communication cycle Reserved Reserved Channel 1 Distance in µm calculated based on channel measurement range and offset …. capaNCDT 6240 Page 53...

  • Page 54: Object Directory

    8: Low level, value output, as long as the level is active 16: Gate trigger with rising edge, starts resp. stops the measuring value output alternatively 32: Gate trigger with falling edge, starts resp. stops the measuring value output alternatively capaNCDT 6240 Page 54...

  • Page 55: Filter Settings

    Uint32 Filter value Length of filter: 2 / 3 / 4 / 5 / 6 / 7 / 8 6.4.5 Measuring Range Index Subindex Data type Name Description 0x2033 1 Float[4] RW Measrange Measrange per sensor capaNCDT 6240 Page 55...

  • Page 56: Math Functions

    RW Channel 2 Factor 4 int8 RW Channel 2 Factor 5 / reserved int8 RW Channel 2 Factor 6 / reserved int8 RW Channel 2 Factor 7 / reserved int8 RW Channel 2 Factor 8 / reserved uint8 RW reserved capaNCDT 6240 Page 56...
  • Page 57 RW Channel 5 Factor 4 / reserved int8 RW Channel 5 Factor 5 / reserved int8 RW Channel 5 Factor 6 / reserved int8 RW Channel 5 Factor 7 / reserved int8 RW Channel 5 Factor 8 / reserved uint8 RW reserved capaNCDT 6240 Page 57...
  • Page 58 RW Channel 8 Factor 4 / reserved int8 RW Channel 8 Factor 5 / reserved int8 RW Channel 8 Factor 6 / reserved int8 RW Channel 8 Factor 7 / reserved int8 RW Channel 8 Factor 8 / reserved capaNCDT 6240 Page 58...

  • Page 59: Sample Time

    Name Description 256: 3906,3 Hz 480: 2083,3 Hz 960: 1041,7 Hz 1920: 520,8 Hz 0x2036 1 Uint32 RW Sample time interval 9600: 104,2 Hz 16000: 62,5 Hz 19200: 52,1 Hz 32000: 31,3 Hz 38400: 26 Hz capaNCDT 6240 Page 59...

  • Page 60: Device Info

    Test software version Uint8 Test hour Uint8 Test day Uint8 Test month Uint8 Test year Int32 Article number circuit board Int32 Serial number circuit board Uint8[32] Name Uint8 sensor/channel count Uint8 protocol block count Uint8[164] R protocol blocks capaNCDT 6240 Page 60...

  • Page 61: Sensor Information

    Nominal offset Nominal offset Float current measuring range Actual measuring range Float current offset Actual offset Uint8[32] Target material Target material Uint8[32] Sensor/channel name Sensor/channel name uint8 extension length Length of block extension uint8[138] R extension capaNCDT 6240 Page 61...

  • Page 62: Parameter Info

    NrOfObjects Please refer to the sensor documentation for available parameter IDs Uint16 RW Parameter ID and their types Uint8 RW Reserved Float RW Value Value Uint8[14] Name Designation Uint8[8] Unit Unit as a string Float Float capaNCDT 6240 Page 62...

  • Page 63: Integer Parameter

    NrOfObjects Please refer to the sensor documentation for available parameter IDs Uint16 RW Parameter ID and their types Uint8 RW Reserved Int32 RW Value Value Uint8[14] Name Designation Uint8[8] Unit Unit as a string Int32 Int32 capaNCDT 6240 Page 63...

  • Page 64: Unsigned Integer Parameter

    String Parameter Read or write string parameter Uint8 NrOfObjects Please refer to the sensor documentation for available parameter IDs Uint16 RW Parameter ID and their types Uint8 RW Reserved Uint8[246] RW Value Value Uint8[14] Name Designation capaNCDT 6240 Page 64...

  • Page 65: Sequence When Writing And Reading Acyclical Data

    LEN // Length of the binary data block to be written RECORD // Usable data for writing RECORD, VALID, BUSY, ERROR, STATUS and LEN contain return parameters (=>) that allow for determining the success or progress of the write command. capaNCDT 6240 Page 65...

  • Page 66: Sequence When Writing Structured Data

    0 0 0x01 0 0x07 0 0 0 0xF8 0x02 0x00 0xE7 0x03 0x00 0x00 DONE => BUSY => Status/Result Output ERROR => STATUS => Fig. 25 Write command with data from SPS to capaNCDT 6240 capaNCDT 6240 Page 66...

  • Page 67: Operation And Maintenance

    If the cause of a fault cannot Koenigbacher Str. 15 be clearly identified, please send us the entire 94496 Ortenburg / Germany measuring system to: Tel. +49 (0) 8542 / 168-0 Fax +49 (0) 8542 / 168-90 info@micro-epsilon.com www.micro-epsilon.com capaNCDT 6240 Page 67...

  • Page 68: Disclaimer

    MICRO-EPSILON or to your distributor / retailer. MICRO-EPSILON undertakes no liability whatsoever for damage, loss or costs caused by or related in any way to the product, in par- ticular consequential damage, e.g., due to...

  • Page 69: Decommissioning, Disposal

    Here you can inform yourself about the respective national collection and return points. - Old devices can also be returned for disposal to MICRO-EPSILON at the address given in the imprint at https://www.micro-epsilon.de/impressum/. - We would like to point out that you are responsible for deleting the measurement-specific and personal data on the old devices to be disposed of.

  • Page 70: Appendix

    Optional Accessories MC2.5 Micrometer calibration fixture, setting range 0 - 2.5 mm, reading 0.1 µm, for sensors CS005 to CS2 MC25D Digital micrometer calibration fixture, setting range 0 - 25 mm, adjustable zero point for all sensors capaNCDT 6240 Page 70...
  • Page 71 Appendix| Accessories, Service SWH.OS.650.CTMSV Vacuum feed through, 34 (1.34) Max. leak rate 1x10e- mbar · l s M10x0.75 Compatible with connector type B (.08) max. 17 (.67) capaNCDT 6240 Page 71...
  • Page 72 Max. leak rate 1x10e-9 mbar · l s Compatible with connector type B (.24) Knit line Vacuum feed through triax screwable Max. leak rate 1x10e-9 mbar · l s 25 (.98) Compatible with connector type B ø13.50h6 SW11 capaNCDT 6240 Page 72...

  • Page 73: A 1.3 Service

    Power supply for mounting on DIN-rail input 230 VAC (115 VAC) output 24 VDC / 2.5 A; L/W/H 120 x 120 x 40 mm A 1.3 Service Function and linearity check-out, inclusive 11-point protocol with grafic and post-calibration. capaNCDT 6240 Page 73...

  • Page 74: A 2 Factory Setting

    - Zero-poti = Off (right-stop) - Data rate = 3906 Sa/s - LP filter 20 Hz = Off - Filter = Off - Linearization = Off - Trigger mode = Off - Math functions = Off capaNCDT 6240 Page 74...

  • Page 75: A 3 Integration Into Tia Portal

    A 3.1 Importing capaNCDT 6240 into the software This section describes how to connect capaNCDT 6240 to SIMATIC S7 controllers. Start the TIA (Totally Integrated Automation) Portal. Therefore, either double-click the TIA Portal icon on your desktop or call up the framework via the Start Menu.
  • Page 76 The TIA Portal automatically assigns the IP address and subnet mask. You can manually adjust these data here (General > PROFINET interface > Ethernet addresses) if necessary and save them by clicking the Save project button, see top left corner in the Toolbar. capaNCDT 6240 Page 76...
  • Page 77 The GSDML file contains information about a PROFINET device. This file is needed for the PROFINET controller and must be integrat- ed into the corresponding configuration software. You get the GSDML file from Micro-Epsilon. Import the GSDML file. To do so, in the Extras > Manage device description files (DDF) menu, select the path for the file <GSDML-Vx-MICRO-EPSILON-DT6240PNET-202x.xml>.
  • Page 78 Appendix| Integration Into TIA Portal Make sure that capaNCDT 6240 has been integrated correctly. Switch to the Hardware catalog tab. In the menu, select Other field devices > PROFINET IO > I/O > MICRO-EPSILON MESSTECHNIK GmbH > PNS > DT6240/PNET. capaNCDT 6240...

  • Page 79: A 3.2 Unique Integration Of Capancdt 6240 Into The Profinet Network

    Switch to the Network view of the Working window and add DT6240/PNET from the Hardware catalog by drag and drop. Connect the Port 0 LAN socket of capaNCDT 6240 with the one of the PLC by clicking one of the green boxes with the left mouse button.
  • Page 80 This is one of several possibilities to change the device name. Fig. 27 Assigning a device name The device name is used to identify the device on the PN network and as an address; it must be unique across the entire sys- tem. capaNCDT 6240 Page 80...
  • Page 81 Appendix| Integration Into TIA Portal The change of name must be communicated to the PN network. Right-click the DT6240/PNET. You now reach the context menu shown. Select the Assign device name entry. capaNCDT 6240 Page 81...
  • Page 82 Finally, click the Assign name button. If you activate the Flash LED checkbox in the orange highlighted area you can verify which device you are currently address- ing. This is especially helpful in larger networks. capaNCDT 6240 Page 82...

  • Page 83: A 3.3 Loading The Configuration Into The Plc

    Load button transfers the hardware configuration. The Load preview dialog box opens. Select the Stop all option in Stop modules. The device configuration can only be loaded when the CPU is in the operating state STOP. capaNCDT 6240 Page 83...
  • Page 84 The results of the loading process are displayed in the following Dialog box. If the process was completed successful, start your S7. Activate the Start all checkbox, if necessary, and click the Finish button. If no error occurs, the S7 changes to the operating state RUN which is indicated by the green RUN-LED. capaNCDT 6240 Page 84...

  • Page 85: A 3.4 Accessing Input And Output Data

    You can now define variables in the Tag register to read out the desired memory locations. Each PLC tag is assigned a name, a data type, and an address. Proceed as follows to read out the content of the input module at its start address: capaNCDT 6240 Page 85...
  • Page 86 Open the extended view of the address definition. This facilitates the correct specification of operand and memory space. Enter the start address from point 1 and confirm the entry by clicking the symbol button with the green check mark. capaNCDT 6240 Page 86...
  • Page 87 Toolbar or select this function by right-clicking within the tag table. This leads to the online mode and the column Monitor value is displayed in the table. Clicking the symbol button once again quits the monitor mode. capaNCDT 6240 Page 87...

  • Page 88: Tilt Angle Influence On The Capacitive Sensor

    As this results from internal simulations and calculations, please request for detailed information. Angle  [°] Fig. 30 Example of measuring range deviation in the case of a sensor distance of 100 % of the measuring range capaNCDT 6240 Page 88...

  • Page 89: A 5 Measurement On Narrow Targets

    Figures give an influence example shown on the sensors CS05 in the case of different sensor distances to the target as well as target widths. As this results from internal simulations and calculations, please request for detailed information. capaNCDT 6240 Page 89...

  • Page 90: A 6 Measurements On Balls And Shafts

    Figures give an influence example shown on the sensors CS02 and CS1 in the case of different sensor distances to the target as well as target diameters. As this results from internal simulations and calculations, please request for detailed information. capaNCDT 6240 Page 90...
  • Page 92 MICRO-EPSILON MESSTECHNIK GmbH & Co. KG Koenigbacher Str. 15 · 94496 Ortenburg / Germany Tel. +49 (0) 8542 / 168-0 · Fax +49 (0) 8542 / 168-90 X9751447-B012123MSC info@micro-epsilon.com · www.micro-epsilon.com MICRO-EPSILON MESSTECHNIK Your local contact: www.micro-epsilon.com/contact/worldwide/...
