Installation and Assembly
4.2.2

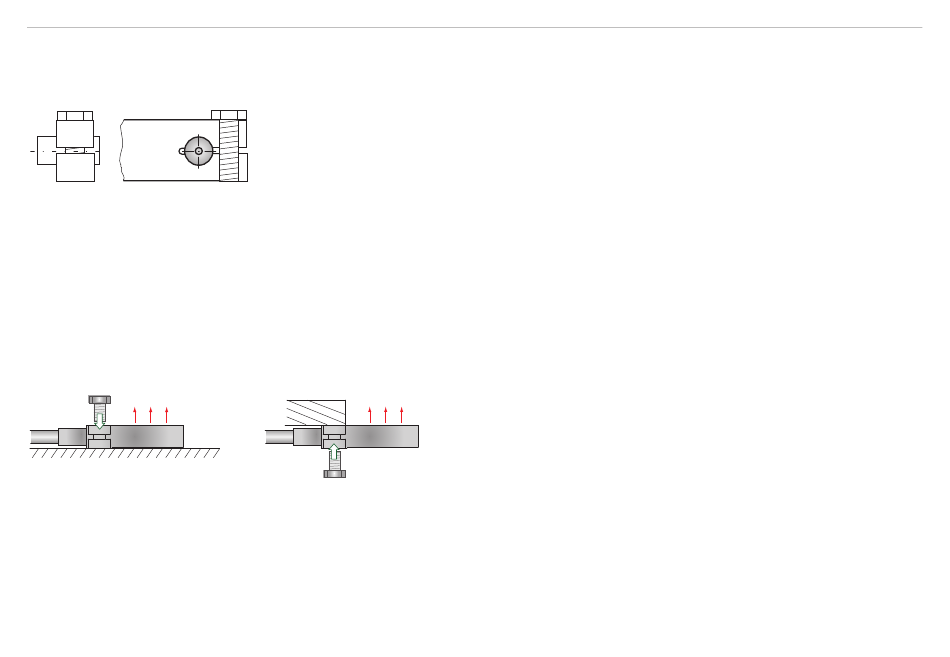

Circumferential Clamping, Cylindric Sensors

This sensor mounting option offers maximum reliability because the sensor is clamped around its cylindrical housing. It is absolutely
necessary in difficult installation environments, for example on machines, production plants et cetera.
Fig. 5 Circumferential clamping
i
Tension at the cable is inadmissible!
4.2.3

Flat Sensors

Flat sensors are mounted by means of a tap hole for M2 (in case of sensors 0.2 and 0.5 mm) or by a through hole for M2 screws. The
sensors can be bolted on top or below.
Screwing from above
capaNCDT 6240
Mounting with
clamping ring
Screwing from bottom
Page 22
