Operation
5.2.2

Poti

The zero-poti on the demodulator modules is used for zero adjustment of the analog outputs.
End positions on the left or right stop are marked by a slight click.
The electrical zero point can be set across the whole measuring range with the "zero" potentiometer. The start of the measuring range
(= mechanical zero point) is on the front face of the sensor.
A tilted sensor or measuring object results in a reduced measuring range and zero point shifting according to the tilting.
The potentiometer is ex factory set at the right stop (maximum level).
Signal
10 V
0 V
Zero
-10 V

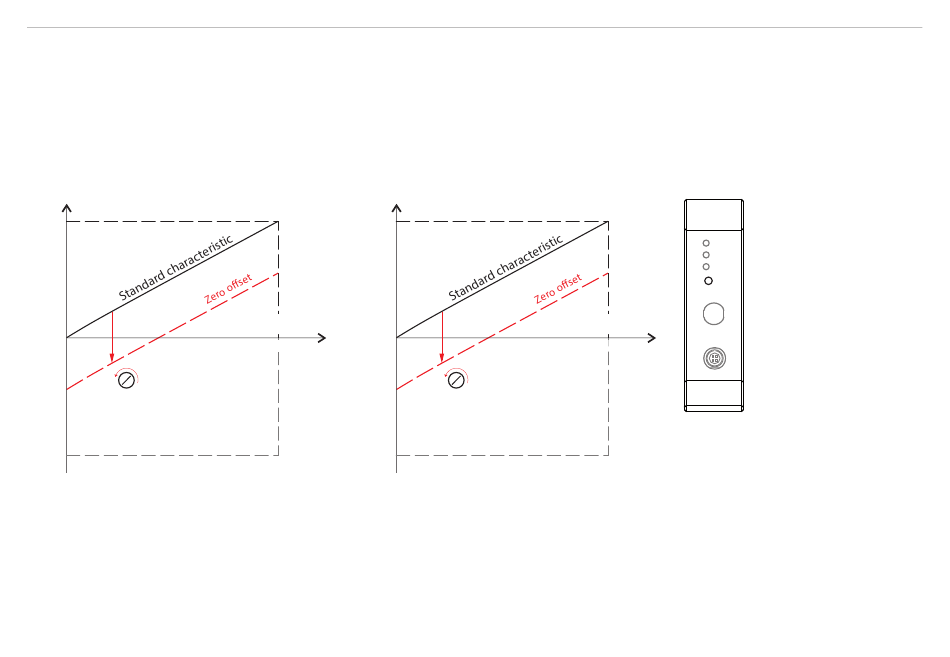

Fig. 18 Zero point shifting with zero-poti
capaNCDT 6240
Signal
20 mA
Displacement
4 mA
100 %
-12 mA
Displacement
100 %
Zero
Range
LP Filter
Zero
Zero
SENSOR/CP
SIGNAL OUT
DL62xx
