MICRO-EPSILON capaNCDT 6240 Operating Instructions Manual page 29

Installation and Assembly

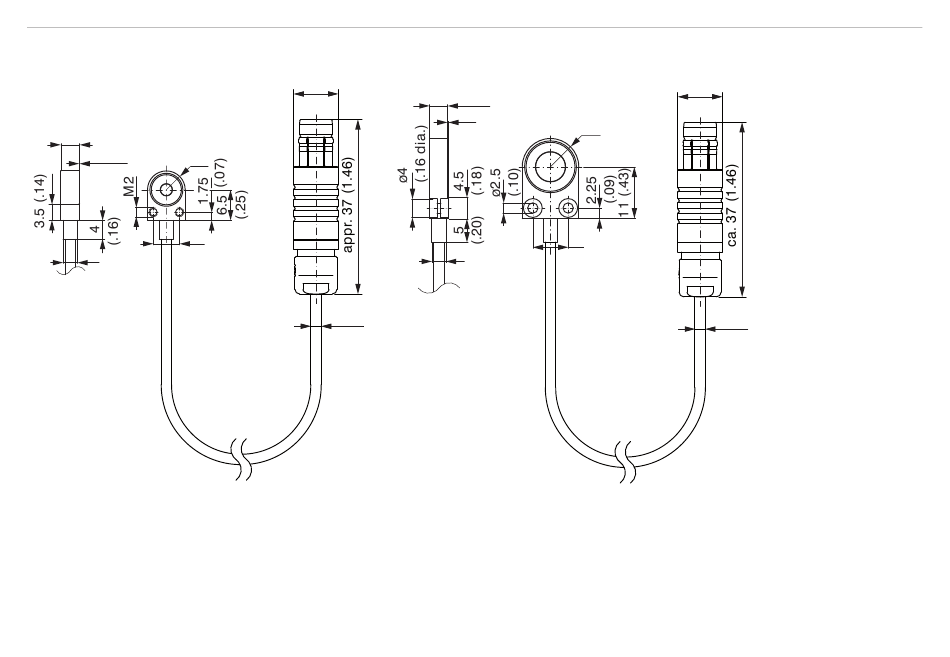

Flat sensors
CSH02FL-CRmx,
CSH05FL-CRmx
4 (.16)
0.1 (.003)
R4
5.5
(.22)
ø3
(.12 dia.)
Dimensions in mm (inches), not to scale
capaNCDT 6240
appr. 9.4
4 (.16)
(.37)
0.1
(.003)
ø3
(.12 dia.)
ø2.2
(.09)
appr. 9.4
CSH1FL-CRmx,
CSH1.2FL-CRmx
(.37)
R6
(.24)
7.5
(.29)
ø2.2
(.09)
Page 29
