Installation and Assembly
4.4

Controller

4.4.1

Basic Module, Demodulator Module

34 (1.34)
0.5
3.6
(.14)
42 (1.65)
SYNC
IN
37 (1.46)
BF
SF
POWER/TRIG.
OUT
22.5 (.89)
0

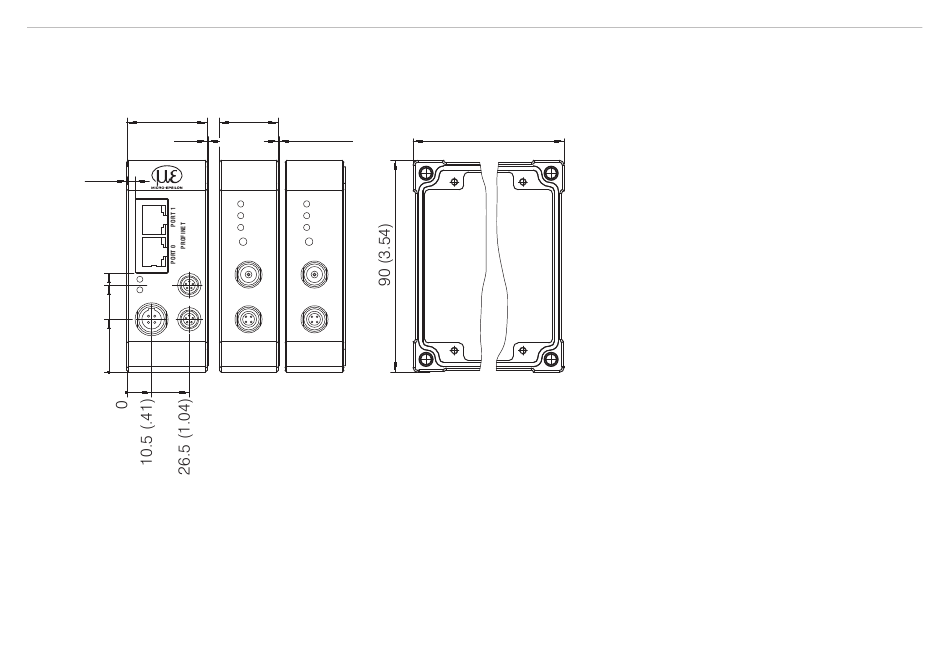

Fig. 6 Dimensional drawing basic module and demodulator
capaNCDT 6240
25 (.98)
0.5 (.02)
Range Range
LP Filter LP Filter
Zero Zero
Zero Zero
SENSOR/CP SENSOR/CP
SIGNAL OUT SIGNAL OUT
125 (4.92)
Dimensions in mm (inches rounded off)
The controller is mounted using mounting
plates or retaining clips for a DIN rail mounting,
which are included in an optional conversion
kit.
