User Guide
a. From the front of the rack, using the T15 Torx screwdriver, uninstall the M5 Torx screw and
washer that secure the front of the rack mount Rails and bracket to the rack.

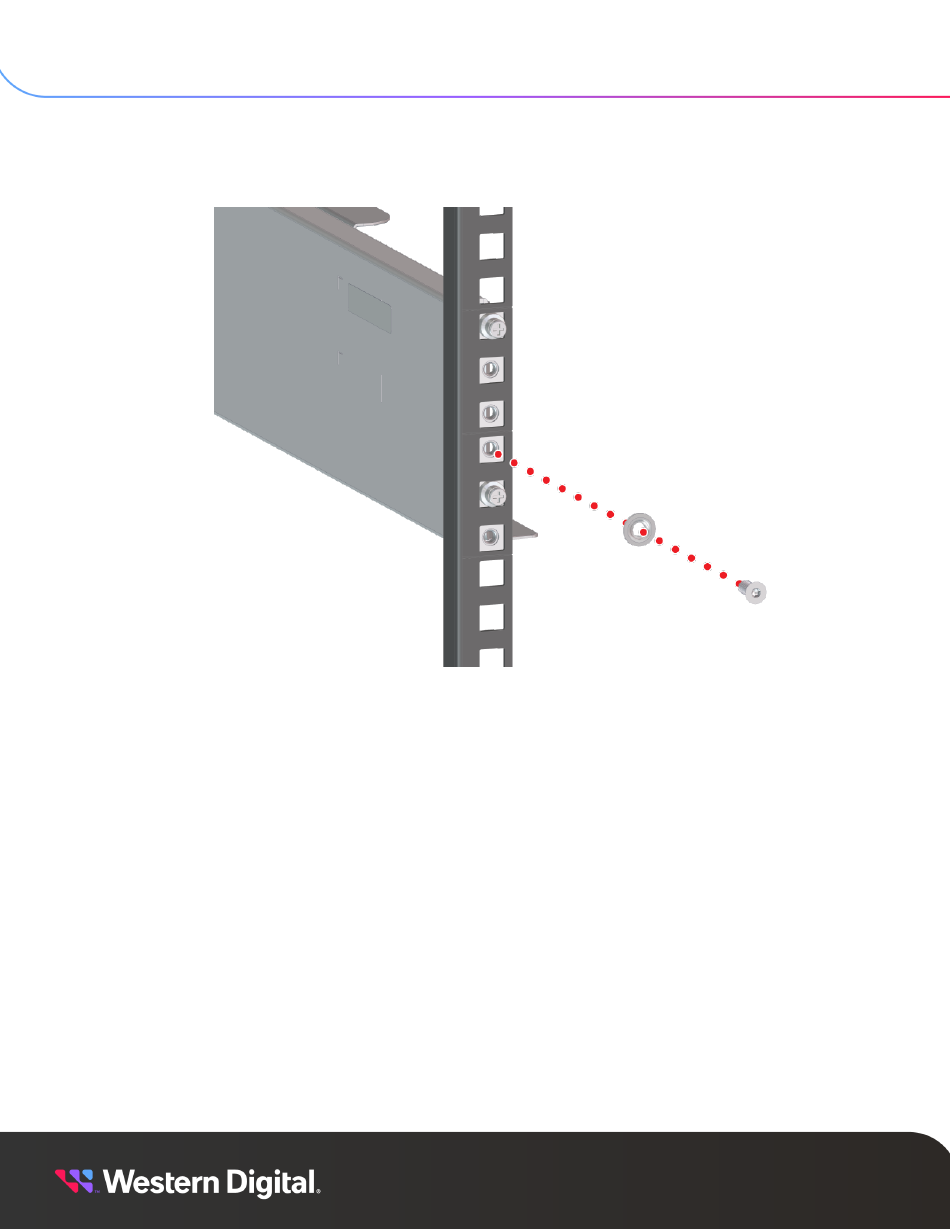

Figure 104: Uninstall Front Rack Mount
b. From the rear of the rack, using the T15 Torx screwdriver, uninstall the two M5 Torx screws
and washers that secure the rear of the rack mount Rails to the rack. Remove the Rail from
the rack by rotating the front mount out and pulling the rear mount out of the rack.
3. Support
3.7 Rails Replacement
86
