User Guide

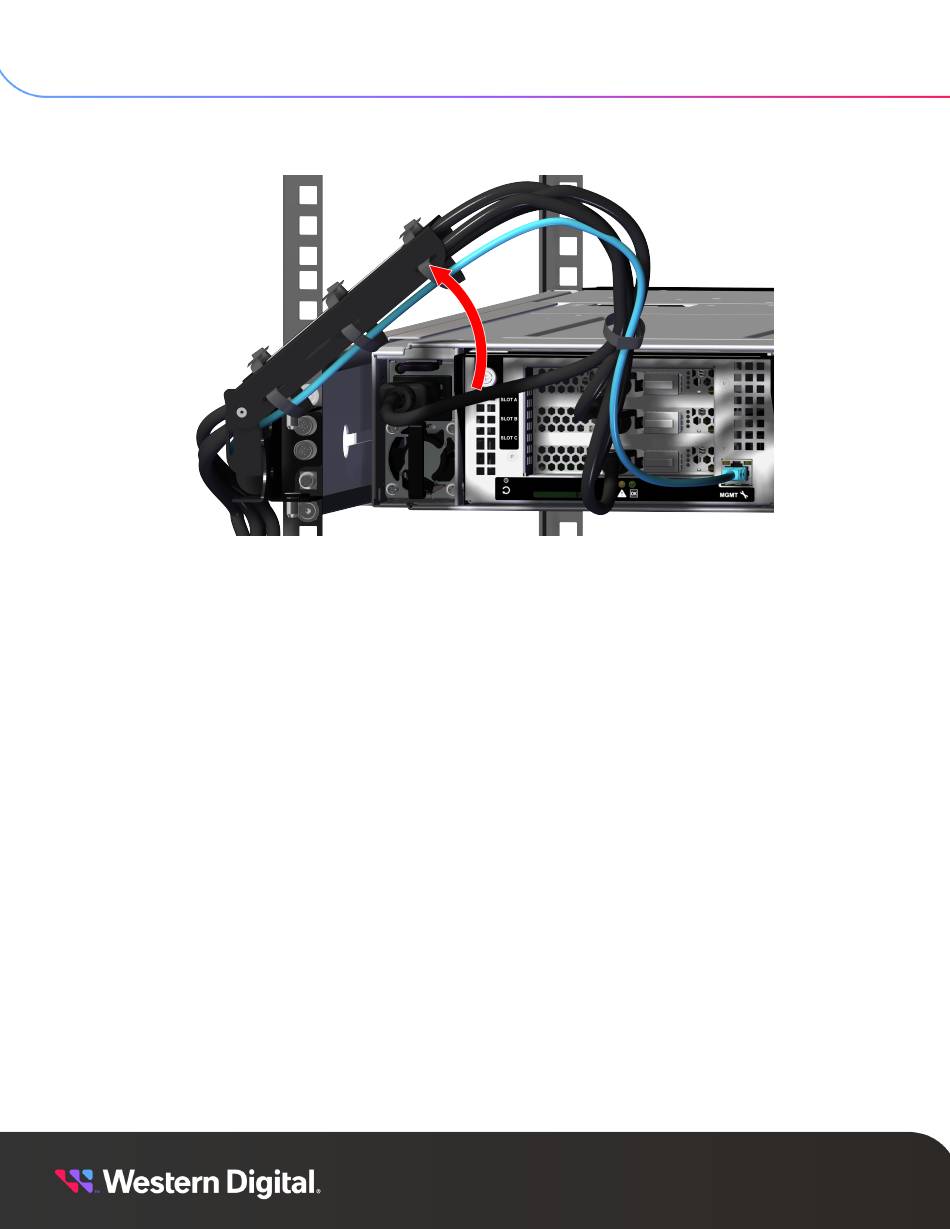

Figure 100: Move CMA Assembly into a Servicing State
Step 3 : (Optional)
Step 4 :
Uninstall the Chassis from the rack mounted rails.
a. From the front of the rack, using the T15 Torx screwdriver, loosen the two Torx captive screws
that secure the Chassis to the rail. Repeat this step to loosen the two Torx captive screws
that secure the Chassis to the remaining rail. The location of the captive screws are shown in
the following image.
Repeat the previous step to move the remaining arm into the servicing state.
3. Support
3.7 Rails Replacement
83
