User Guide

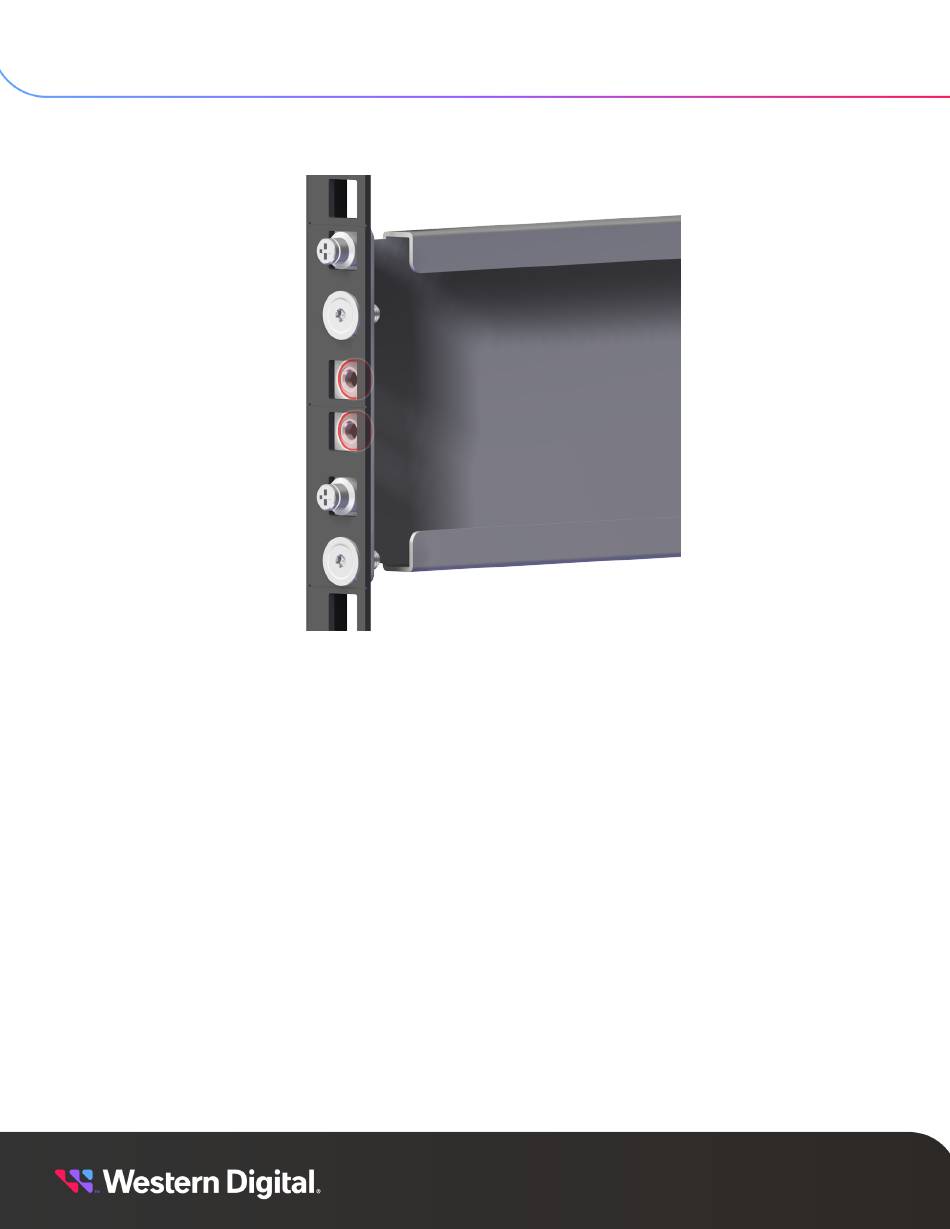

Figure 127: CMA Mounting Location
b. Place the CMA mounting assembly over the mounting location and begin turning the first
captive screw clockwise until it engages with the mounting hole on the rack mounted rail.
c. Begin turning the second captive screw clockwise until it engages with the mounting hole on
the rack mounted rail.
d. Tighten both captive screws until the CMA is full secure.
3.8 Cable Management Arm (CMA) Assembly Replacement
3. Support
99
