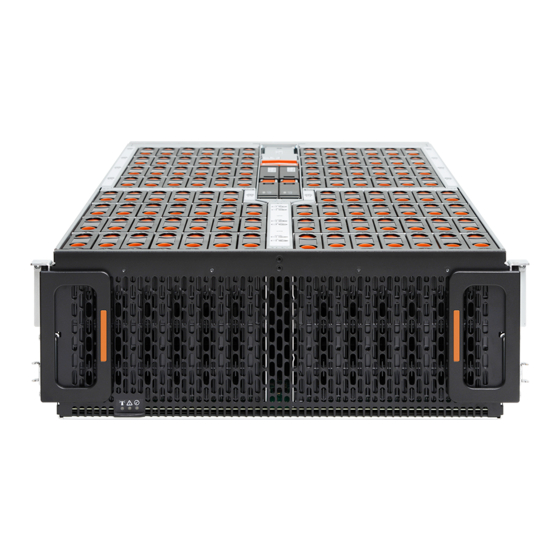

Western Digital EcoDesign Ultrastar Data102 Manual

Disclosures
Hide thumbs Also See for EcoDesign Ultrastar Data102:

Advertisement

Quick Links

Download this manual
EcoDesign
Disclosures
Ultrastar® Data102
Regulatory Model: H4102-J
1ET2152
Version 1.0
February 2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the EcoDesign Ultrastar Data102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Western Digital EcoDesign Ultrastar Data102

Summary of Contents for Western Digital EcoDesign Ultrastar Data102

  • Page 1 EcoDesign Disclosures Ultrastar® Data102 Regulatory Model: H4102-J 1ET2152 Version 1.0 February 2020...

  • Page 2: Table Of Contents

    EcoDesign Disclosures Table of Contents Table of Contents Notices......................................ii Chapter 1. EU EcoDesign Disclosures............................1 EcoDesign Overview................................. 2 Ultrastar Data102 EcoDesign Specifications..........................2 Instant Secure Erase / Secure Erase............................2 Ultrastar Data102 Disassembly..............................5...

  • Page 3: Notices

    Per Western Digital Terms and Conditions of Sale, the user of Western Digital products in life support applications assumes all risk of such use and indemnifies Western Digital against all damages.

  • Page 4: Chapter 1. Eu Ecodesign Disclosures

    Western Digital EU EcoDesign Disclosures This document provides information and instructions related to the Ultrastar Data102 's disclosures for the EU's ecodesign requirements. In This Chapter: - EcoDesign Overview........2 - Ultrastar Data102 EcoDesign Specifications...........2 - Instant Secure Erase / Secure Erase.... 2...

  • Page 5: Ecodesign Overview

    Secure Erase (SE) features included with Western Digital drives. Data Erasure Options Western Digital provides several options for securely erasing data from its drives. The appropriate method depends upon many factors, including the following: • Erase Configuration (ISE or SE) •...
  • Page 6 /documents.westerndigital.com/content/dam/doc-library/en_us/assets/public/western-digital/ collateral/tech-brief/tech-brief-instant-secure-erase..ISE / SE Overview Instant Secure Erase (ISE) is Western Digital’s implementation of the industry standard T10 (SAS)/T13 (SATA) command, allowing users to instantly erase both user-accesible data and hidden user data from sanitize Western Digital drives.
  • Page 7 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.3 Instant Secure Erase / Secure Erase • ISE - Crypto Erase - HDD/SSD: # sg_sanitize --crypto --quick <dev> • SE - Overwrite - HDD: # sg_sanitize --overwrite --quick --zero <dev> • Block Erase - SSD: # sg_sanitize --block --quick <dev>...

  • Page 8: Ultrastar Data102 Disassembly

    1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly 1.4   Ultrastar Data102 Disassembly This task provides instructions for disassembling an Ultrastar Data102 . Table 1: Procedure Requirements Time Required Tools # of People Required Required T7, T8, & T10 Torx Screwdrivers  * 2 hours #2 Phillips Screwdriver...
  • Page 9 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 2: CMA(s) in service position (Cables not shown) Powering Down the Enclosure Step 2 : Disconnect the Enclosure from power. a. Locate the redundant PSUs at the rear of the enclosure. b.
  • Page 10 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Step 3 : Disconnect the HD Mini-SAS cables from the rear of the enclosure by pulling (don't jerk) on the blue tab that is extending outward from the connector. This will free the cable from the port. Make sure each cable is labeled or label them yourself to ensure that they will be plugged back into the same location.
  • Page 11 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 5: Unlatching a CMA Connector Removing the Crossbar Step 7 : Uninstall the crossbar from the CMA mounting bracket. a. Locate the crossbar thumbscrew that secures the crossbar to the CMA mounting brackets and unscrew it.
  • Page 12 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 7: Crossbar Swinging Out c. Once the crossbar is straight it should easily come free from the mounting bracket. Uninstalling the PSUs Step 8 : Uninstall the PSU. a. Grasp the release lever and the metal handle in a downward pinching motion to release the latching mechanism.
  • Page 13 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Step 9 : To unlatch the rear fan from the fan housing, use one hand to press the clip at the top and bottom of the fan and pull to free it from the chassis and remove it. Figure 9: Uninstalling the Rear Fan Extending the Enclosure Step 10 : Grasp both handles at the front of the enclosure and pull with even pressure to extend the...
  • Page 14 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 10: Chassis Handle Operation Removing the Drives Step 11 : Follow these steps to remove a Drive Assembly. a. Find the latch release mechanism on the Drive Assembly being removed. b.
  • Page 15 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 12: Removing Drive Assembly Step 12 : Repeat these steps to remove all the drive assemblies from the enclosure. Removing the IOMs Step 13 : Uninstall the IOM(s). a. Locate the latch release on the IOM and press it in the direction shown in the following image.
  • Page 16 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 14: Removing IOM Step 14 : Repeat these steps to remove the remaining IOM from the enclosure. Disassembling the IOMs Step 15 : Lay one of the IOMs on its side. Step 16 : Using a T7 Torx screwdriver, remove the four (4) M3 6mm screws from the ends of the IOM: Step 17 : Lift the bottom edge of the side-panel.
  • Page 17 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Step 18 : Using a T10 Torx screwdriver, remove the six (6) M3 4mm pan-head screws securing the circuit board to the other side-panel: Step 19 : Pull the circuit board upward to remove it from the IOM:...
  • Page 18 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Step 20 : If applicable, repeat these steps to remove the circuit board from the other IOM. Removing the IOM Fan Step 21 : Remove the IOM Fan. a. With one hand, grasp around the center square of the fan housing as shown in the following image.
  • Page 19 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 19: Removing IOM Fan Releasing the Chassis Cover From the Rack Step 22 : Release the safety latch on the inner rails on each side of the chassis as shown in the following image.
  • Page 20 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Removing the Enclosure from the Rack Step 25 : Grasp both handles at the front of the enclosure and pull with even pressure to extend the chassis out of the rack until it is stopped by the safety latches. Make sure that the top cover comes with the chassis as it is extended out of the rack.
  • Page 21 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 22: Safety Latch Release d. Depress the latch release lever for the safety latches on the rail and push the chassis very slightly forward. The chassis is now unsecured from the rack. e.
  • Page 22 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 23: Remove Inner Rail b. Locate and unlatch the springlock on the side of the inner rail. Figure 24: Inner Rail Spring Latch c. Slide the inner rail toward the front of the enclosure to unlock it from the pegs that secure it to the sidewall and pull it free.
  • Page 23 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Step 28 : Uninstall the Cable Tray by removing the M3 x 8mm screws using the long T10 Torx head screwdriver. Figure 25: Uninstalling the Cable Tray Removing the Chassis Cover from the Enclosure Step 29 : Slide the chassis cover toward the rear of the enclosure.
  • Page 24 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Removing the PDB Cover The following image shows the PDB cover in red (for identification purposes only): Figure 27: PDB Cover Location...
  • Page 25 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Step 30 : Use a T7 Torx screwdriver to remove the three (3) M3 6mm screws securing the PDB cover to the left and right rear drive housings. Then pull the PDB cover upward to remove it from the chassis: Removing the Plenum Covers The following image shows the plenum covers in red (for identification purposes only):...
  • Page 26 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 29: Plenum Covers Location Step 31 : Use a T7 Torx screwdriver to remove the four (4) M3 7mm screws securing the plenum covers to the left and right rear drive housings: Step 32 : Remove the four (4) M3 6mm screws securing the plenum covers to the fan housing:...
  • Page 27 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Step 33 : Pull the plenum covers upward to remove them from the chassis: Removing the Fan Housing Assembly The following image shows the fan housing assembly in red (for identification purposes only):...
  • Page 28 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 33: Fan Housing Assembly Location Step 34 : Use a T7 Torx screwdriver to remove the twelve (12) M3 6mm screws securing the fan housing assembly to the rear of the chassis: The following image shows the screws in red (for identification purposes only):...
  • Page 29 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 35: Fan Housing Screw Locations, As Viewed from the Rear Step 35 : Use a T7 Torx screwdriver to remove the twelve (12) M3 6mm screws securing the fan housing assembly to the sides of the chassis: Step 36 : Pull the fan housing assembly away from the chassis, just far enough to unplug the fan cable connectors from their receptacles on the baseboard.
  • Page 30 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 37: Fan Cable Connectors, As Viewed from the Top-Rear Step 37 : Remove the fan housing assembly from the chassis: Removing the PDB Bus-Bar Screws The following image shows the PDB bus-bar screws in red (for identification purposes only):...
  • Page 31 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 39: PDB Bus-Bar Screws Location, As Viewed from the Front Top-Right Step 38 : Use a T8 Torx screwdriver to remove the four (4) M3 6mm screws securing the PDB to the baseboard.
  • Page 32 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 40: IOM Housing Location Step 39 : Use a T7 Torx screwdriver to remove the fourteen (14) M3 6mm screws securing the IOM housing to the drive housings. Then pull the IOM housing upward to remove it from the chassis:...
  • Page 33 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Removing the PDB from the IOM Housing Step 40 : Lay the IOM housing on its side. Step 41 : Use a T7 Torx screwdriver to remove the eighteen (18) M3 6mm screws securing the right side- panel of the IOM housing:...
  • Page 34 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Step 42 : Pull the right side-panel upward to remove it from the IOM housing:...
  • Page 35 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Step 43 : Use a T7 Torx screwdriver to remove the three (3) M3 6mm screws securing the PDB to the left side-panel of the IOM housing: Step 44 : Pull the PDB upward to remove it from the IOM housing: Removing the Rear Drive Housings The following image shows the rear-right drive housing in red (for identification purposes only), as viewed from the rear of the enclosure:...
  • Page 36 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 46: Rear-Right Drive Housing Location, As Viewed from Rear-Left-Top Step 45 : At the front of the rear-right drive housing, use a T7 Torx screwdriver to remove the four (4) M3 6mm screws securing the drive housing to the side-panel of the chassis:...
  • Page 37 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 47: Inside of Rear-Right Drive Housing, As Viewed from Left-Rear-Top Step 46 : Inside the drive bays of the rear-right drive housing, use a T7 Torx screwdriver to remove the four (4) M3 6mm screws securing the drive housing to the baseboard:...
  • Page 38 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 48: Rear-Right Drive Bays, As Viewed from Right-Front-Top Step 47 : On the outside of the chassis, at the front of the rear-right drive housing, use a T8 Torx screwdriver to remove the two (2) K30 10mm screws securing the drive housing to the side of the chassis: Figure 49: Outside-Right of Enclosure, As Viewed from Front-Top Step 48 : On the outside of the chassis, use a T7 Torx screwdriver to remove the twelve (12) M3 6mm...
  • Page 39 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 50: Right-Front Corner, As Viewed from Right-Front-Top Step 49 : Pull upward on the rear-right drive housing to remove it from the chassis:...
  • Page 40 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Step 50 : Repeat these steps to remove the rear-left drive housing. Removing the Front Drive Housings The following image shows the front-left drive housing in red (for identification purposes only), as viewed from the front of the enclosure:...
  • Page 41 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 52: Front-Left Drive Housing Location, As Viewed from Front-Right-Top Step 51 : At the junction between both front drive housings, remove the five (5) M3 6mm screws holding them together: Step 52 : At the front of the chassis, use a T7 Torx screwdriver to remove the two (2) M3 7mm screws securing the front-left drive housing to the front of the chassis:...
  • Page 42 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 54: Front-Left Corner, As Viewed from Right-Rear-Top Step 53 : Inside the drive bays of the front-left drive housing, use a T7 Torx screwdriver to remove the three (3) M3 6mm screws securing the drive housing to the baseboard: Figure 55: Front-Left Corner, As Viewed from Left-Rear-Top Step 54 : Inside the drive bays of the front-left drive housing, use a T7 Torx screwdriver to remove the eight (8) screws securing the drive housing to the sidewall of the chassis:...
  • Page 43 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 56: Front-Left Corner, As Viewed from Right-Rear-Top Step 55 : On the outside of the chassis, use a T8 Torx screwdriver to remove the three (3) K30 10mm screws securing the housing to the chassis:...
  • Page 44 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 57: Front-Left Corner, As Viewed from Front-Left-Bottom Step 56 : Lift the front-left drive housing, then slide it rearward to remove it from the chassis:...
  • Page 45 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Step 57 : Repeat these steps to remove the right-front drive housing. Removing the HDD Limiters The following image shows the HDD limiters in red (for identification purposes only):...
  • Page 46 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 59: HDD Limiter Locations The bottom side of each limiter has either twelve (12) or fourteen (14) clips that hold it to the baseboard; these clips must be disengaged from the baseboard in order to remove the limiter:...
  • Page 47 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 60: 12-Clip HDD Limiter, Bottom Side Step 58 : Use your fingers—or a flat object—to pry up the HDD limiters at their clip locations, and remove the limiters from the baseboard:...
  • Page 48 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Removing the Front Baseboard The following image shows the front baseboard in red (for identification purposes only):...
  • Page 49 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Step 59 : Use a T7 Torx screwdriver to remove the eleven (11) M3 6mm screws securing the smaller, front baseboard to the chassis. The screws are shown in red in the following image:...
  • Page 50 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 63: Front Baseboard Screw Locations, As Viewed from the Front-Top Step 60 : Pull the smaller, front baseboard upward to remove it from the chassis:...
  • Page 51 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 64: Front Baseboard, As Viewed from the Right-Front-Top Removing the Rear Baseboard The following image shows the rear baseboard in red (for identification purposes only):...
  • Page 52 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Step 61 : Use a T7 Torx screwdriver to remove the thirteen (12) M3 6mm screws securing the larger, rear baseboard to the chassis. The screws are shown in red in the following image:...
  • Page 53 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 66: Rear Baseboard Screw Locations, As Viewed from the Front-Top Step 62 : Pull the larger, rear baseboard upward to remove it from the chassis:...
  • Page 54 1. EU EcoDesign Disclosures EcoDesign Disclosures 1.4 Ultrastar Data102 Disassembly Figure 67: Rear Baseboard, As Viewed from the Right-Rear-Top The disassembly is now complete.
