User Guide

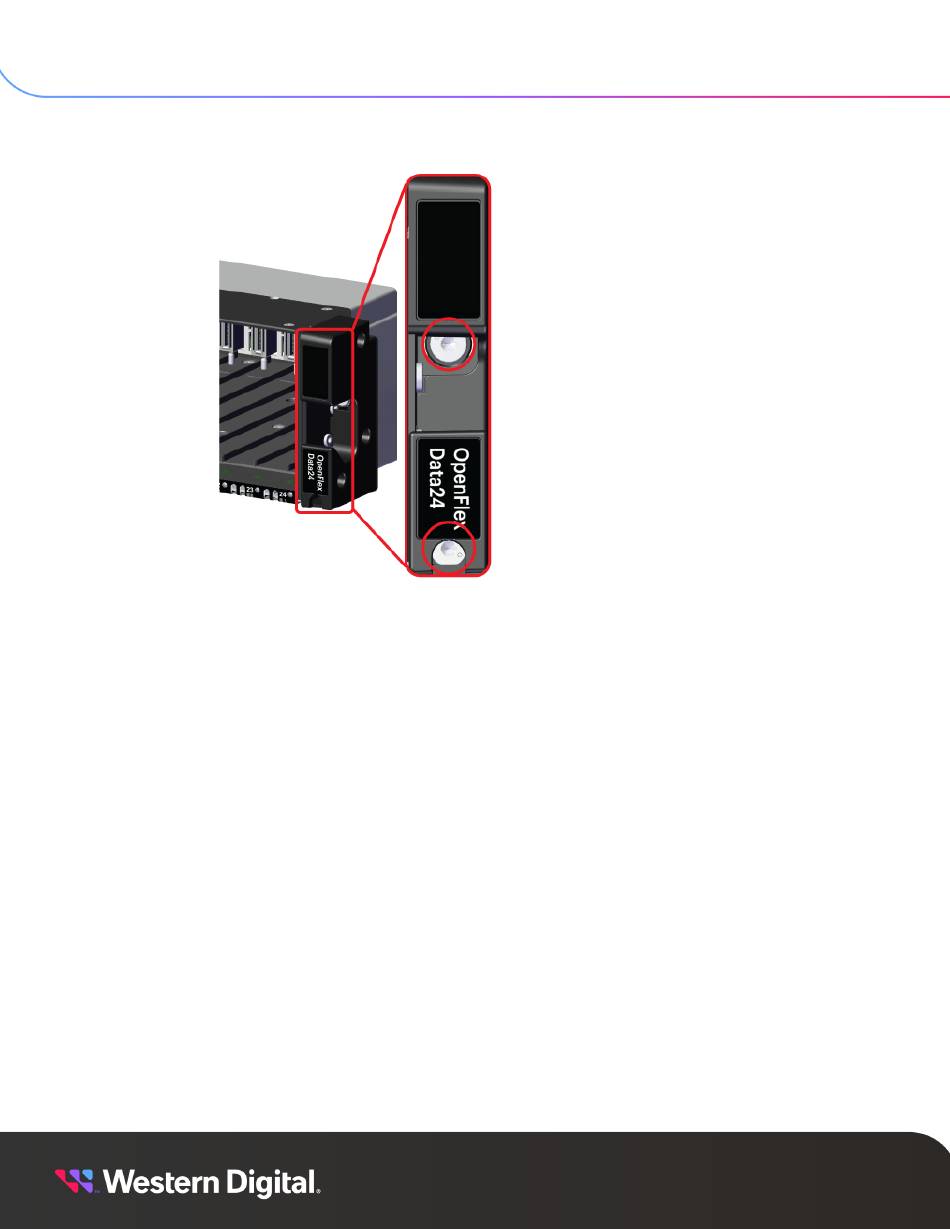

Figure 75: Rack Ear Captive Screw Location
b. Carefully pull the Chassis out of the rack. The chassis will slide out of the rails until the
locking tabs on the side of the chassis engage and stop the chassis from being pulled out
further.
c. Depress the locking tab on the right side of the chassis to allow it to be removed from the
rails.
3. Support
3.6 Chassis Replacement
68
