2.2 IO Module (IOM) w/ Single AIC
2.2.1 IOM Specifications w/ Single AIC
Table 20: IO Module (IOM) w/ Single AIC Specification Summary
Number per Enclosure
Number of Add-in Cards
Specification
Part Number
Hot Swappable?
Service window
Dimensions
Connector Type

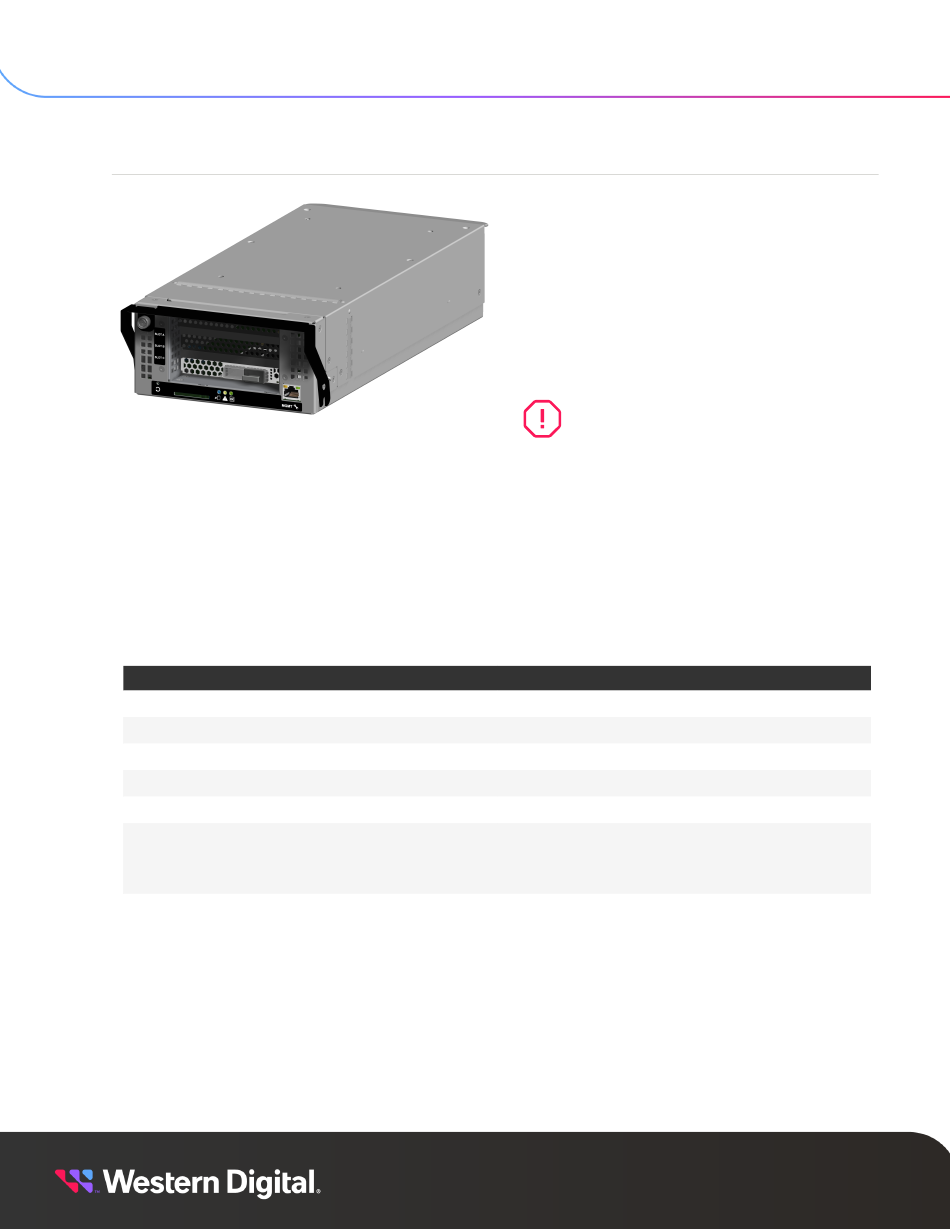

2.2 IO Module (IOM) w/ Single AIC

The IOM contains one RapidFlex® C2000
Fabric Bridge Adapter that provides system data
connectivity through one QSFP28 cable per IOM,
and supports cable lengths up to 5m. Out-of-Band
Management (OOBM) features are accessed via
an RJ45 port that supports a 10/100/1000 Mbps
Ethernet connection. The IOM status LEDs report
Fault and Power. The IOM is hot swappable and
easily removable by removing cables/connectors,
loosening the single thumbscrew and pulling on the
handle.
It is important to remove
Warning:
the QSFP28 connector and cables
before unscrewing and lowering the
handle. Lowering the handle while the
cables are still installed can damage the
internal components and the connector
itself.
Value
1EX2995
2
1
Yes
5 minutes
169.69 mm x 392.77 mm x
W: L:
3.28 in. x 15.46 in. x
W: L:
1 QSFP28 connector and 1 RJ45 Mgmt Port
2. Components
83.41 mm
H:
6.68 in.
H:
