User Guide
Browser Address Line:
data24-usalp03020qb0007/
Note:
• The connection to the "In-Band Path" is determined by the URI containing the Compute
Proxy's IP Address along with the Data24 URI that includes its "Enclosure ID".
• The first "nvme connection" determines which Controller (IOM) MI Device is used for the
Device Page information via the OpenFlex API.
• To explicitly connect the Device Page to either Controller (IOM) via the In-Band Path
connection, the MI Device to the Controller (IOM) that is desired needs to be connected
"first" (or is the only connection) when doing the NVMe connection process to guarantee
the desired In-Band Path connection.

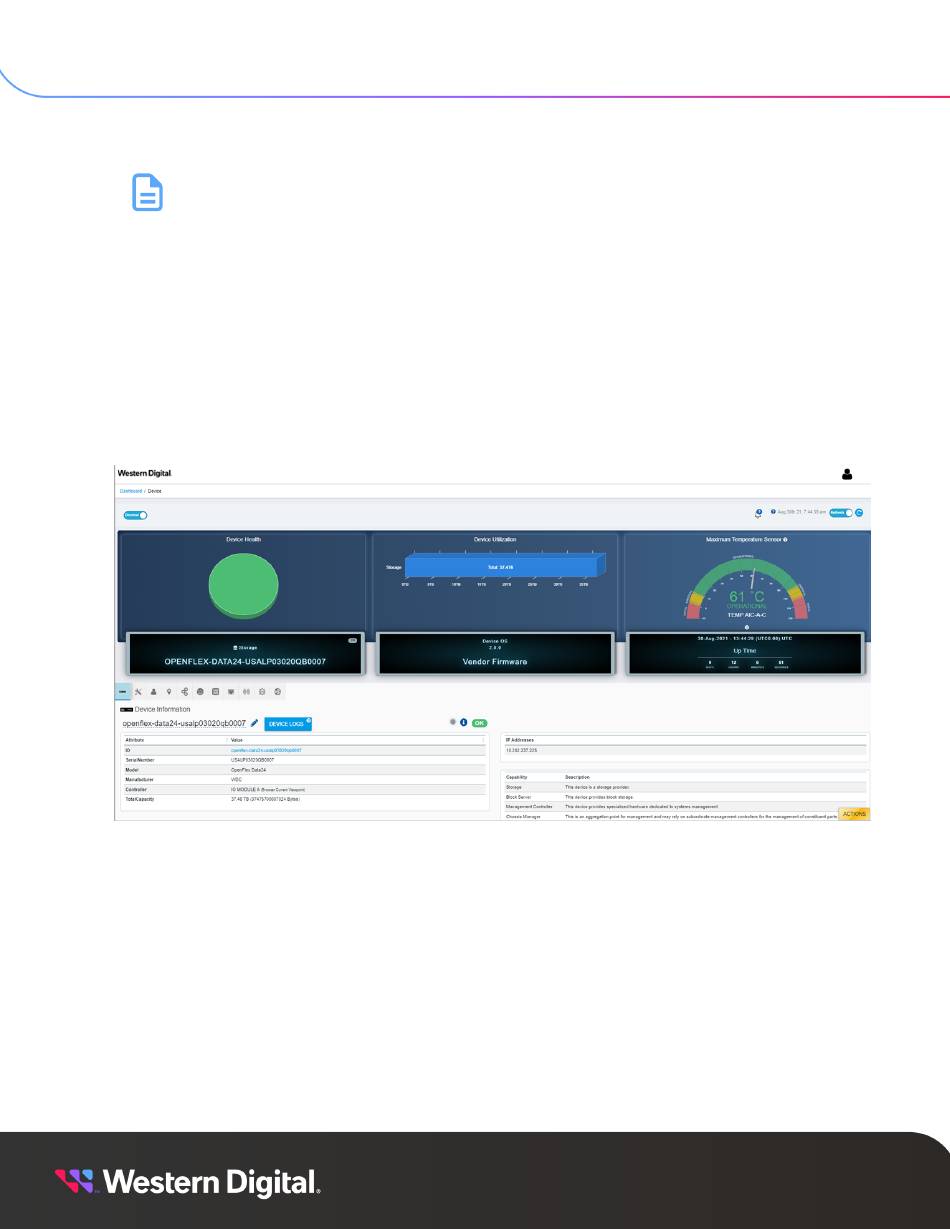

The GUI Pages (both Dashboard and Device Pages) only connect to what is provided by the OpenFlex
API
, which may be either an In-band or an out-of-band connection based on the Dashboard discovery
process.
http://10.202.238.146/device?self=http://10.202.238.146/Storage/Devices/openflex-
5. Configuration
5.8 In-Band Management Usage
219
