a. Unlatch the System Fan bay cover by sliding both latches in towards the center of the
Chassis until the cover is released and can rotated open on its hinges. The latch operation is
shown in the following image.

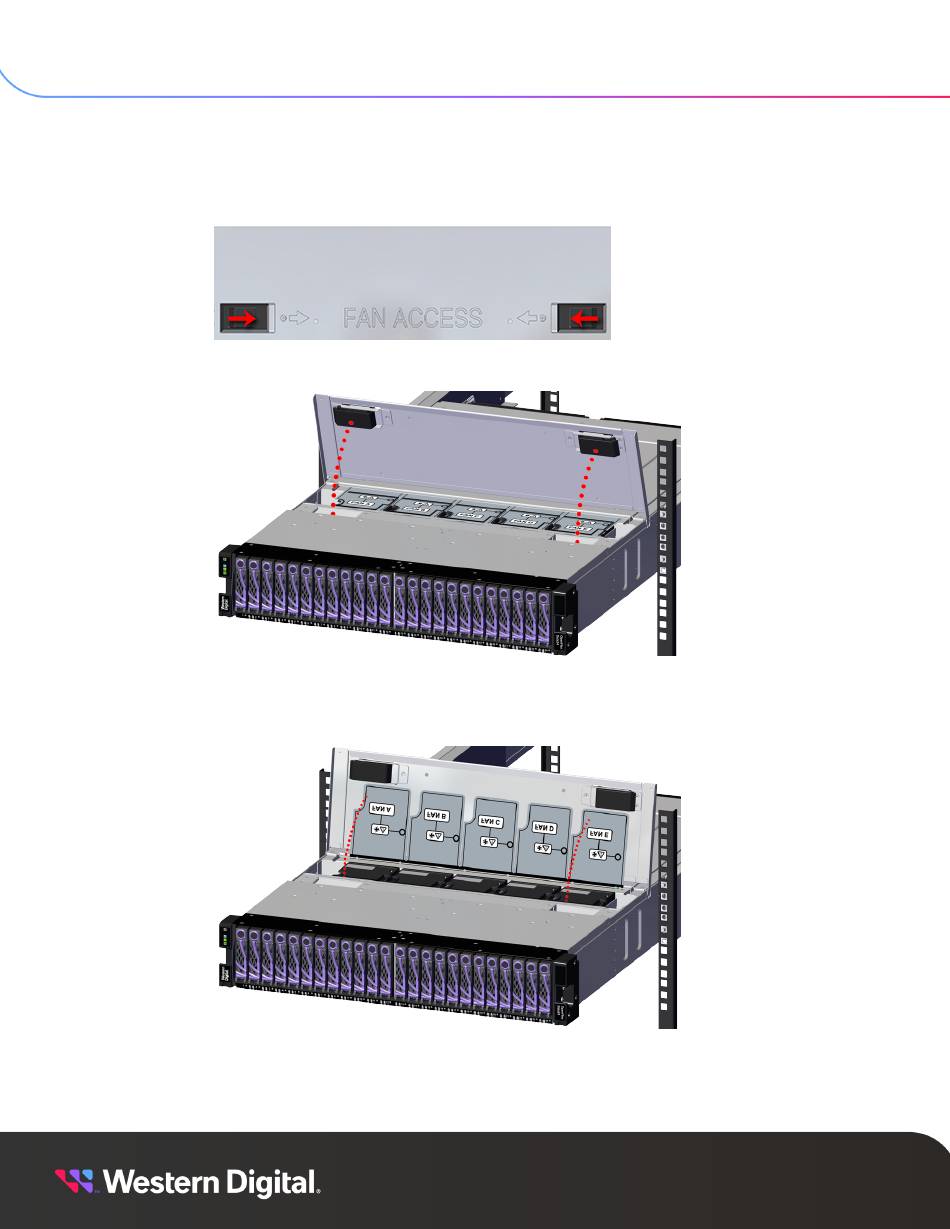

Figure 63: System Fan Bay Cover Latch Location
Figure 64: System Fan Bay Cover Operation
b. Gain access to the System Fan bay by lifting the flexible label.
Figure 65: Flexible Label
c. Grasp the System Fan firmly with your index finger, and use your thumb to press the latch
release using a pinching motion.
3. Support
3.6 Chassis Replacement
